Mediant 500 E-SBC
5.2 Connecting to the LAN
The device provides up to four Gigabit Ethernet (10/100/1000Base-T) ports for connection
to the LAN (e.g., computers, switches, and IP phones). These ports support half- and full-
duplex modes, auto-negotiation, and straight or crossover cable detection.
The RJ-45 connector pinouts are described in the table below:
Table 5-1: RJ-45 Connector Pinouts for GbE
Pin Signal Name
1
Ethernet signal pair (10/100/1000Base-T)
2
3
Ethernet signal pair (10/100/1000Base-T)
6
4
Ethernet signal pair (1000Base-T)
5
7
Ethernet signal pair (1000Base-T)
8
Shield
Chassis ground
 To connect the device to the LAN:
1. Connect one end of a straight-through RJ-45 Cat 5e or Cat 6 cable to the RJ-45 port
labeled S1 / LAN GE.

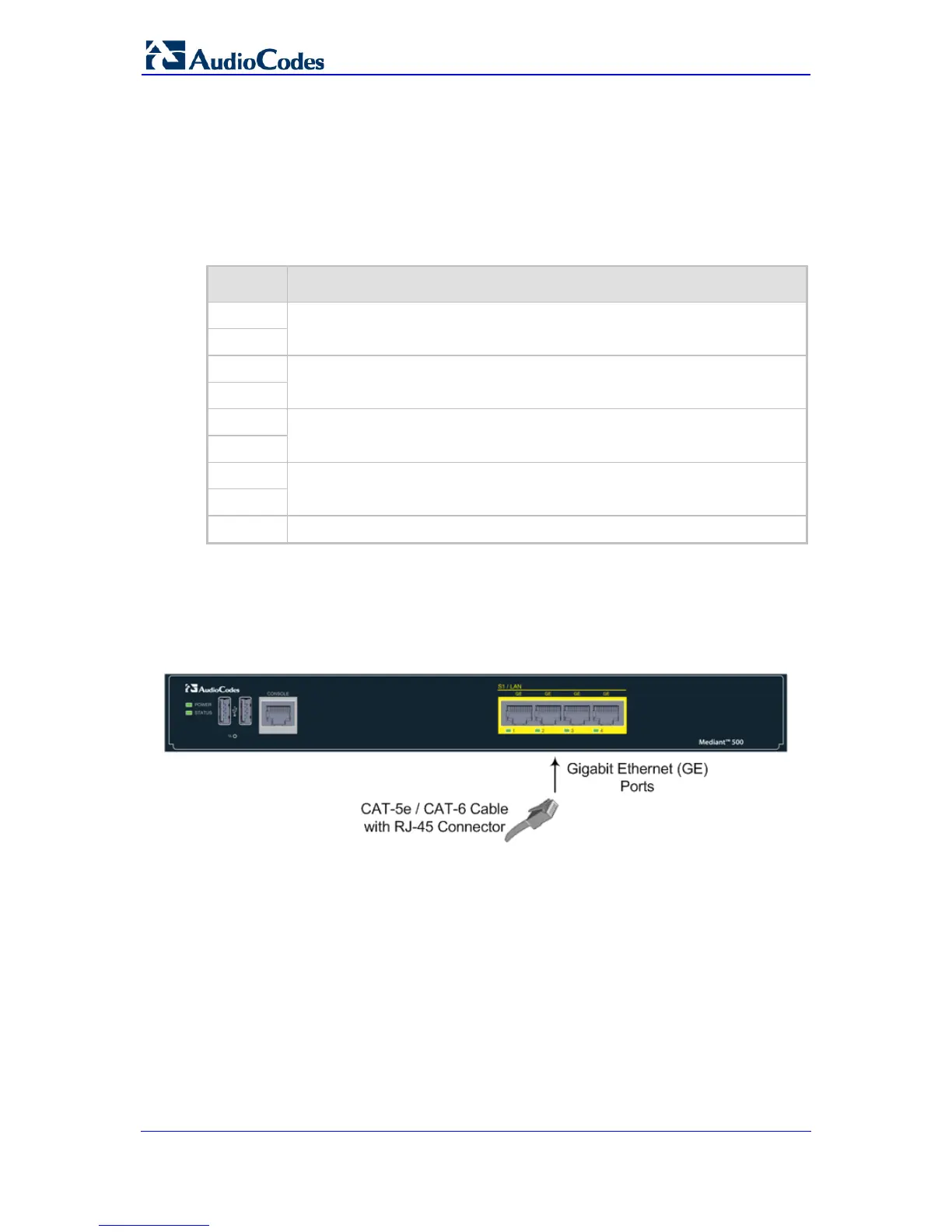

Figure 5-2: Cabling the LAN Ports
2. Connect the other end of the cable to the Gigabit Ethernet network.
