Mediant 500L MSBR
5.1.1 Copper Gigabit Ethernet
The device provides a copper Gigabit Ethernet (GbE) port interface for connecting to the
WAN.
Cable specification:

Cable: straight-through Cat 5 cable

Connector: RJ-45

Connector Pinouts:
Table 5-1: RJ-45 Connector Pinouts for Copper GbE WAN
Pin Signal Name
1
Ethernet signal pair
2
3
Ethernet signal pair
6
4
Ethernet signal pair
5
7
Ethernet signal pair
8
 To connect the copper GbE WAN port:
1. Connect one end of a straight-through RJ-45 Ethernet cable to the RJ-45 port labeled
S0 / WAN GE (located on the front panel).

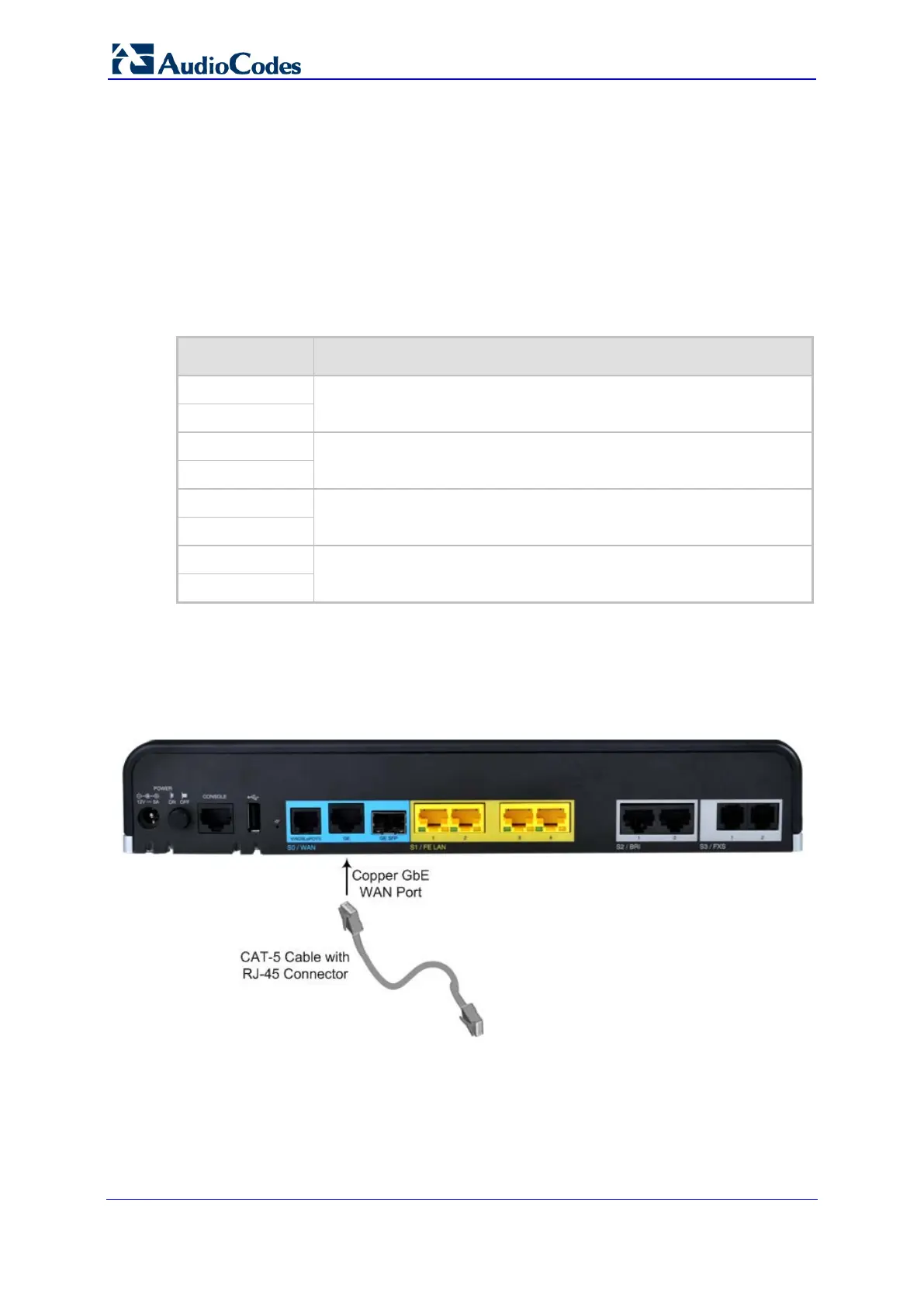

Figure 5-1: Cabling the WAN Copper GbE Port
2. Connect the other end of the cable to the WAN network (e.g., ADSL or Cable modem).
