AudioCodes Mediant 500L MSBR - Figure 5-4: Cabling the Xdsl WAN Port; Table 5-2: RJ-11 Connector Pinouts for Xdsl

MSBR Series 27 Mediant 500L MSBR
Hardware Installation Manual 5. Cabling the Device
Cable specification:

Connector: RJ-11

Connector Pinouts:
Table 5-2: RJ-11 Connector Pinouts for xDSL
Pin Function
3
CH0 – P/TIP
4
CH0 – N/RING
1
Not connected
2
Not connected
5
Not connected
6
Not connected
 To connect the WAN xDSL port:
1. Connect an RJ-11 cable connector to the device’s xDSL WAN port (labeled
V/ADSLoPOTS).

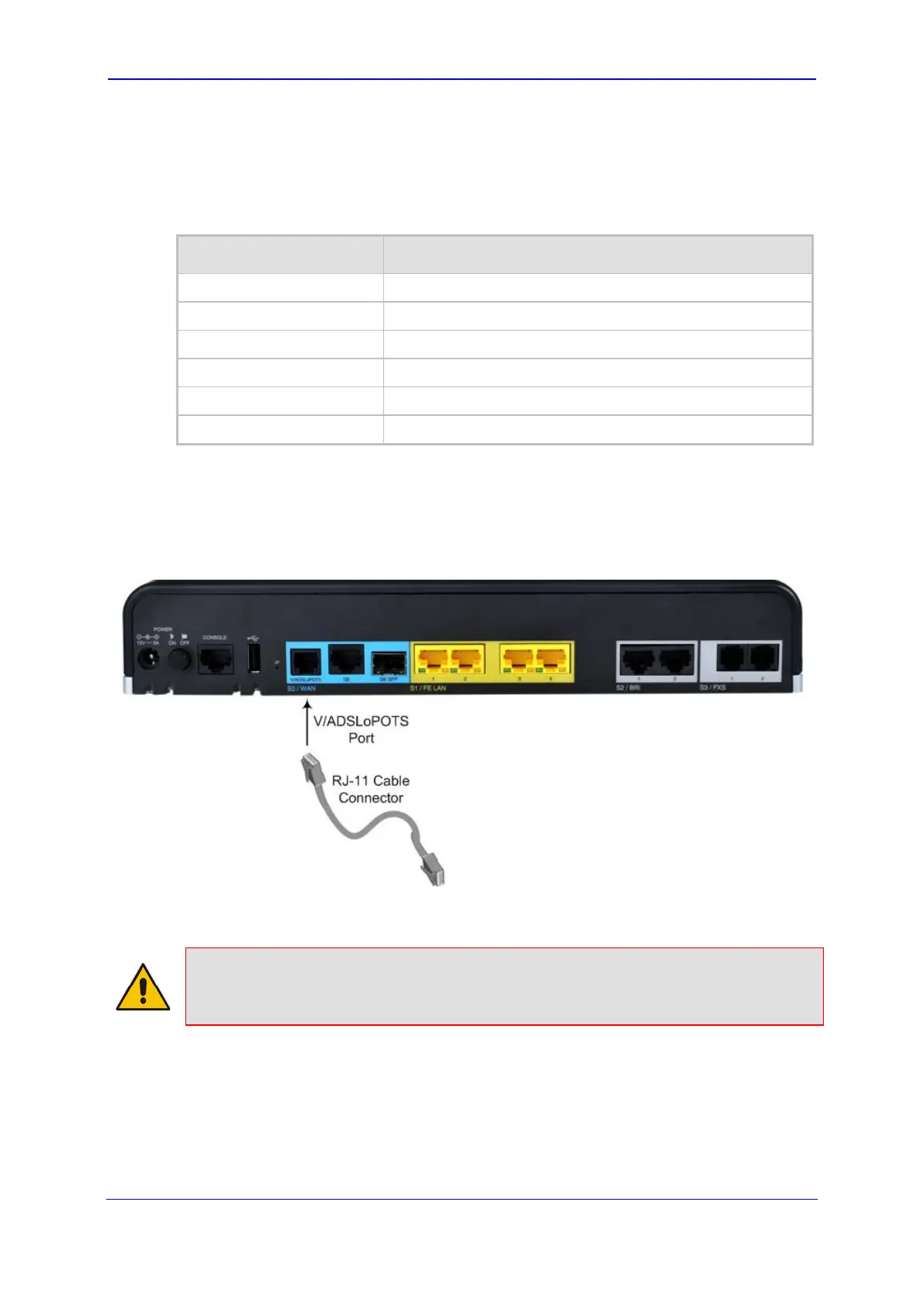

Figure 5-4: Cabling the xDSL WAN Port
2. Connect the other end of the cable to the access point.
Note: The xDSL filter/splitter is not supplied and should be provided by your service
provider.
