5.7 Connecting to the Power Supply
The device is powered by an external 12V AC/DC power adapter (supplied), connected to a
standard alternating current (AC) electrical wall outlet. The type of AC/DC power adapter
depends on the required amperage:

3A power supply – see Section 5.7.1 on page 39

5A power supply – see Section 5.7.2 on page 42
Table 5-5: Power Specifications
Item Description
Power Supply
Single universal external AC power supply
Input Ratings
100-240 VAC, 50-60 Hz
Output Ratings
One of the following, depending on customer requirement:
 12V/3A
 12V/5A
Warning: Use only the AC/DC power adapter supplied with the device.
5.7.1 3-Amp Power Supply Cabling
For 3-Amp power supply, the device is shipped with the AC/DC power adapter shown in the
figure below. The power adapter also supports interchangeable plugs to suite the electrical
wall outlet type requirement of the country in which the device is being installed.

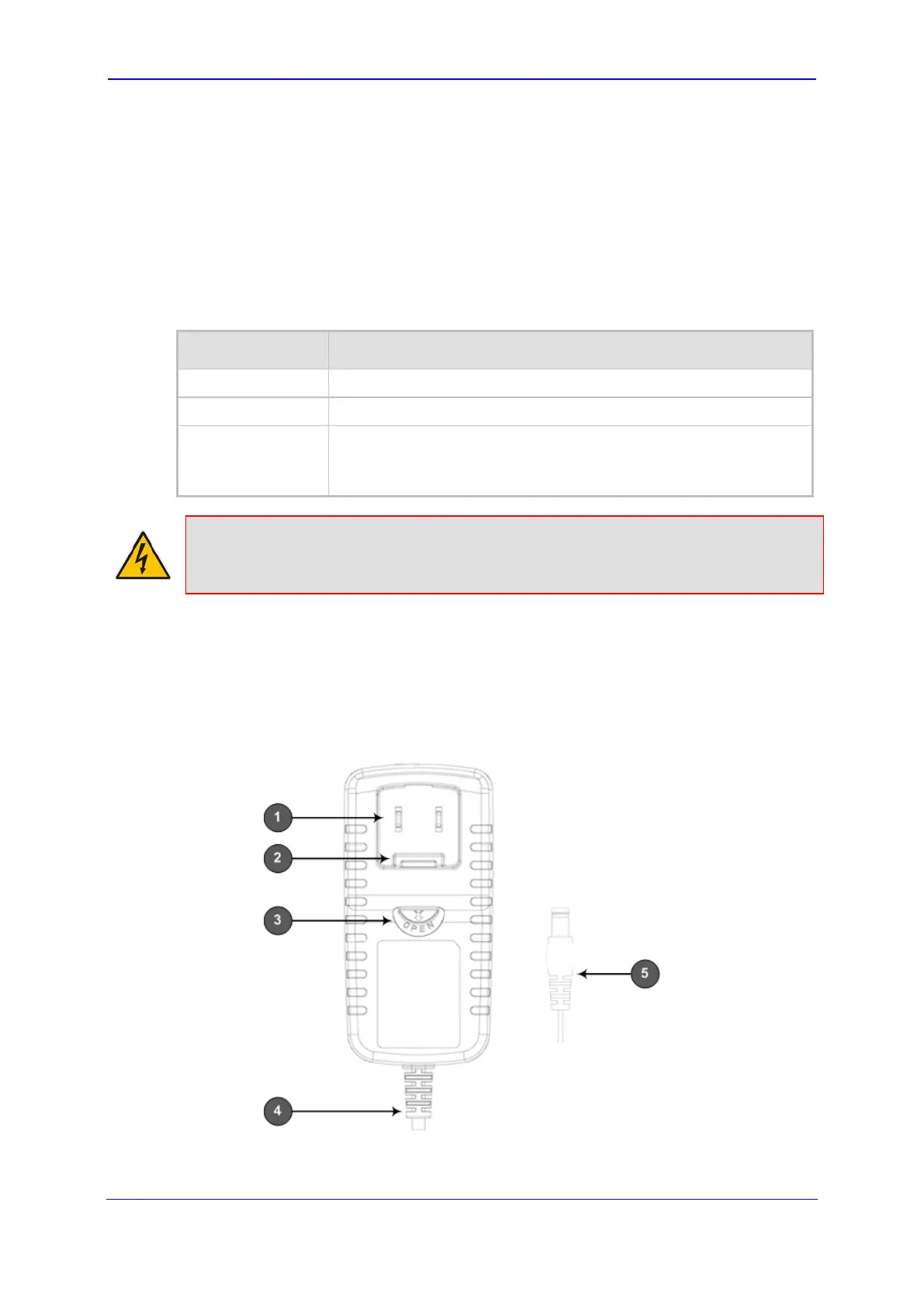

Figure 5-18: 3A AC/DC Power Adapter
