AudioCodes MediaPack MP-114 Hardware Installation Manual

Analog Gateways 13 MP-11x
Hardware Installation Manual 3. Physical Description
3 Physical Description
This chapter provides a physical description of MP-11x.
3.1 Physical Dimensions and Operating Environment
The device's physical dimensions and operating environment are listed in the table below:
Table 3-1: Physical Dimensions and Operating Environment
Physical Specification Description
Dimensions (H x W x D)
42 x 172 x 220 mm (1.65 x 8.66 x 6.77 in.)
Weight
0.5 kg (1.1 lbs.) approx.
Environmental
 Operational: 5 to 40°C (41 to 104°F)
 Storage: -25 to 85°C (-13 to 185°F)
 Humidity: 10 to 90% non-condensing
3.2 Front Panel and LED Description
The device's front panel provides LEDs for indicating various operating statuses. The figure
below displays the front panel of the MP-118. This is similar to the MP-114 and MP-112
models, differing only in the number of Channel Status LEDs (corresponding to the
number of channels).

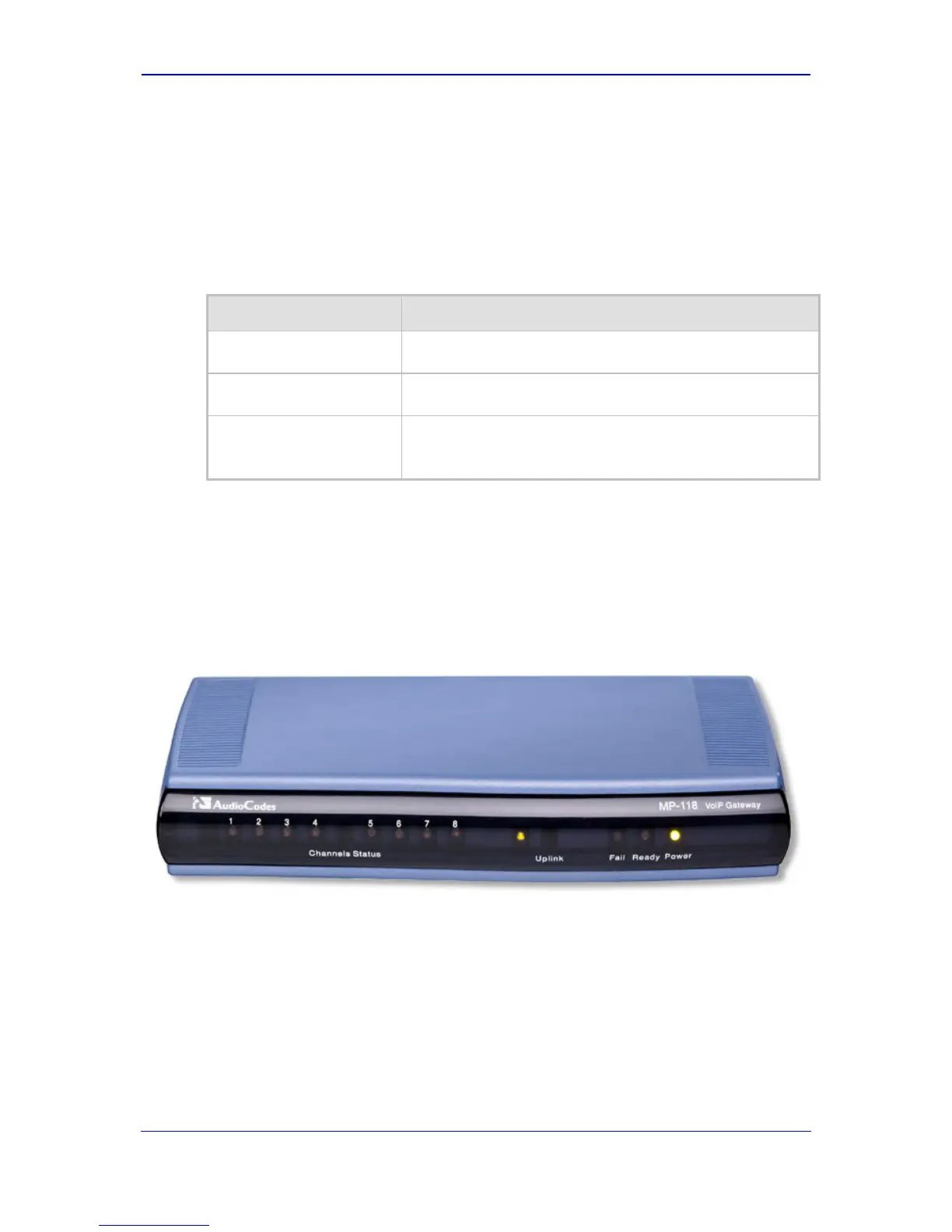

Figure 3-1: MP-11x Front Panel (e.g., MP-118)

AudioCodes MediaPack MP-114 Specifications

General

Model	MP-114
Category	Gateway
Analog Ports	4 FXS
Network Interfaces	2 x 10/100Base-T Ethernet
Voice Codecs	G.711, G.726, G.723.1, G.729A/B
Fax Support	T.38
Management	Web-based management, CLI, SNMP
Security	SRTP, TLS, HTTPS
Ports	4 RJ-11, 2 RJ-45
Protocols	SIP, H.323
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90%, non-condensing
