AudioCodes MediaPack MP-114 Hardware Installation Manual

Analog Gateways 19 MP-11x
Hardware Installation Manual 4. Mounting MP-11x
2. Insert a wall anchor of the appropriate size into each hole.
3. Fasten a DIN 96 3.5 x 20 wood screws (not supplied) into each of the wall anchors.
Make sure that the heads extend sufficiently (about 3/16 inch or 5 mm) from the wall
for the device's keyholes to hang on:

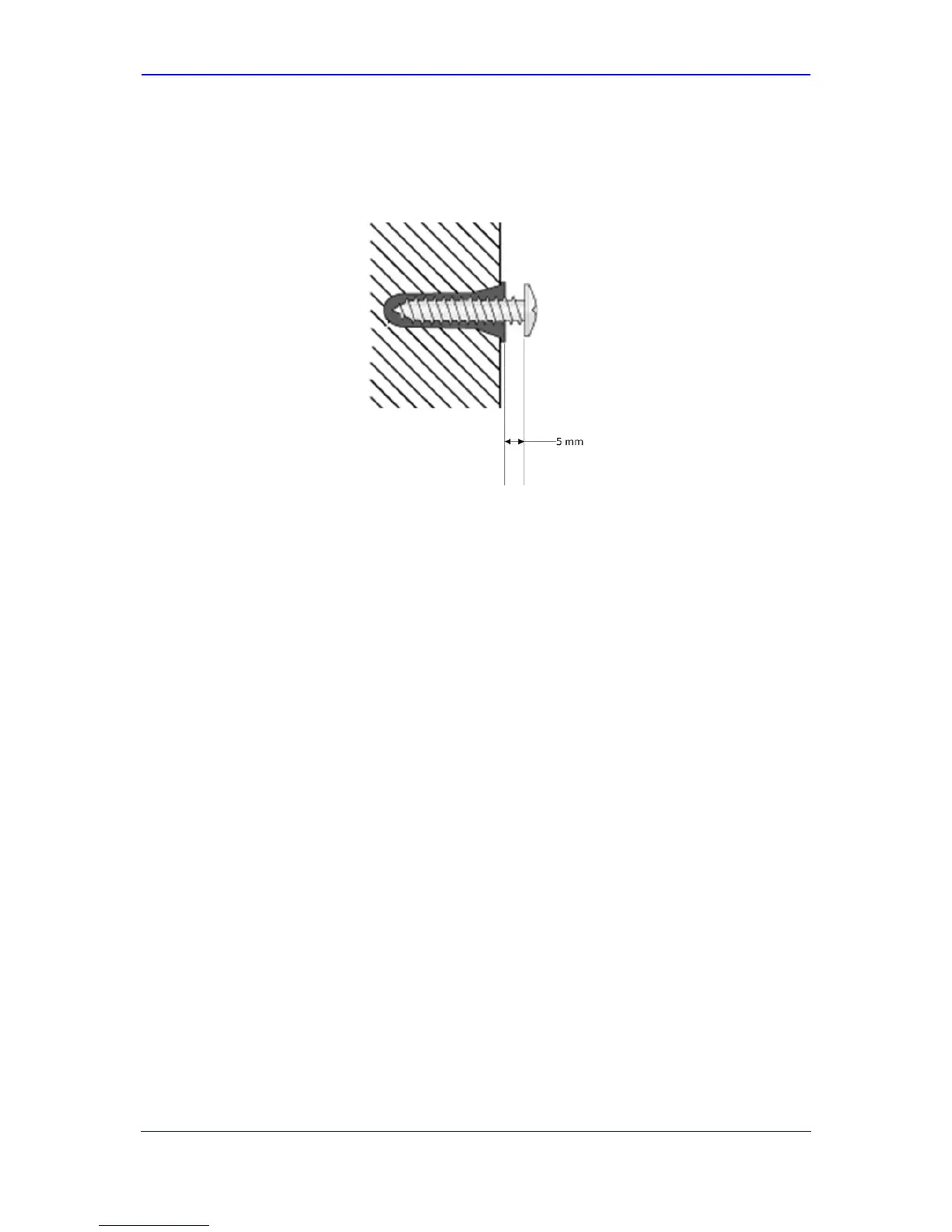

Figure 4-3: Protruded Screw Distance from Wall Surface
4. Mount the device on the wall by hanging the device's keyholes on the screw heads.

AudioCodes MediaPack MP-114 Specifications

General

Model	MP-114
Category	Gateway
Analog Ports	4 FXS
Network Interfaces	2 x 10/100Base-T Ethernet
Voice Codecs	G.711, G.726, G.723.1, G.729A/B
Fax Support	T.38
Management	Web-based management, CLI, SNMP
Security	SRTP, TLS, HTTPS
Ports	4 RJ-11, 2 RJ-45
Protocols	SIP, H.323
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90%, non-condensing
