RXV100
Deployment Guide 14 Document #: LTRT-18195

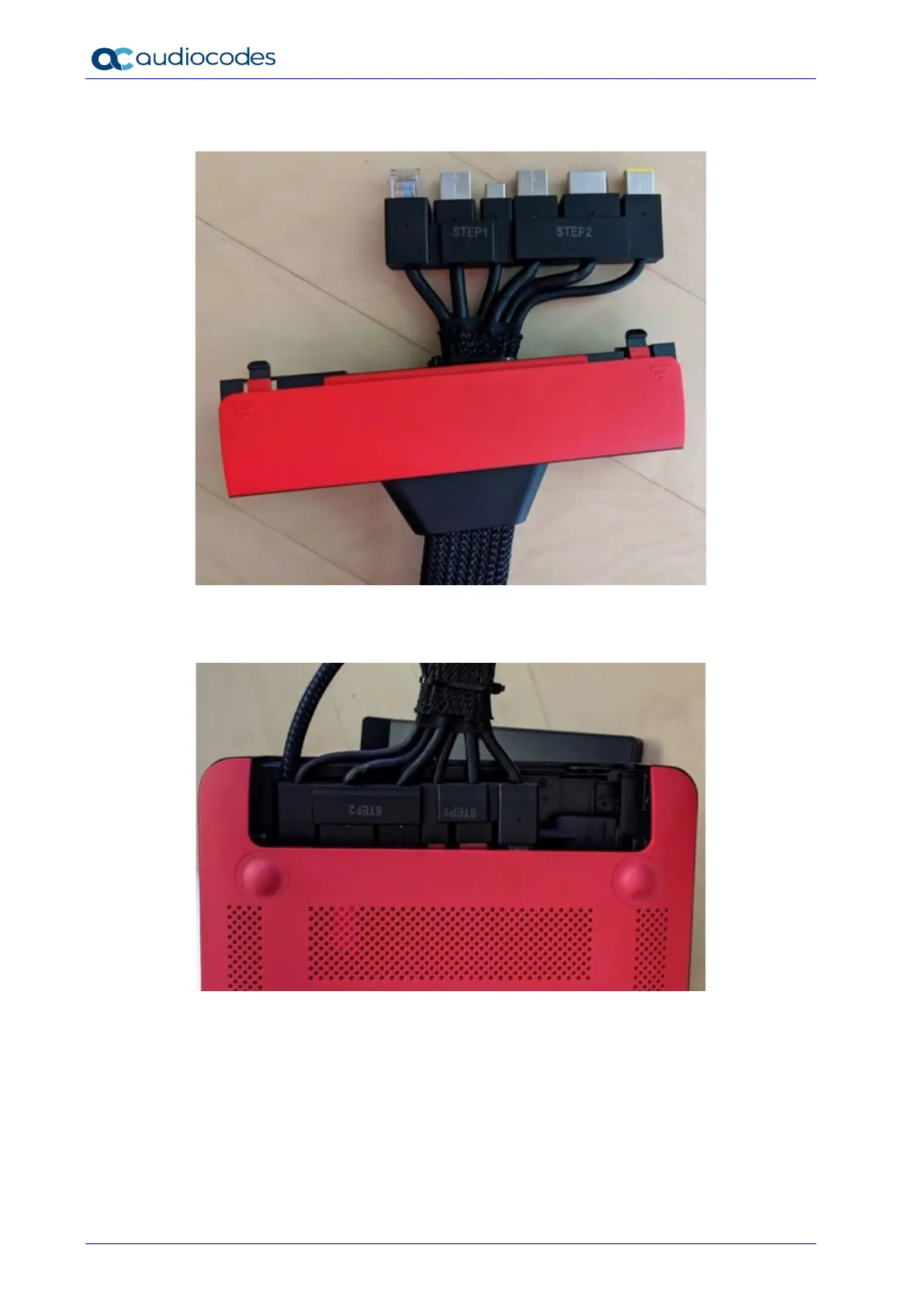

3. On the red side of the One Cable, slide the plastic cover down to reveal the block of
connectors.
4. Align the connectors labeled ‘Step 1’ and ‘Step 2’ to the ports on the base shown in the
figure below. Gently push the connectors into the corresponding ports, moving from right
to left.
5. Keeping the device on its side with the ports/cables facing up, slide the red cover along
One Cable, align the HDMI ingest cable to the notch and snap the cover into place. You
may find it easier to hold the cables in one hand while sliding the cover with the other hand.
