Deployment Guide 2. RXV100 Components
Version N/A 15 RXV100

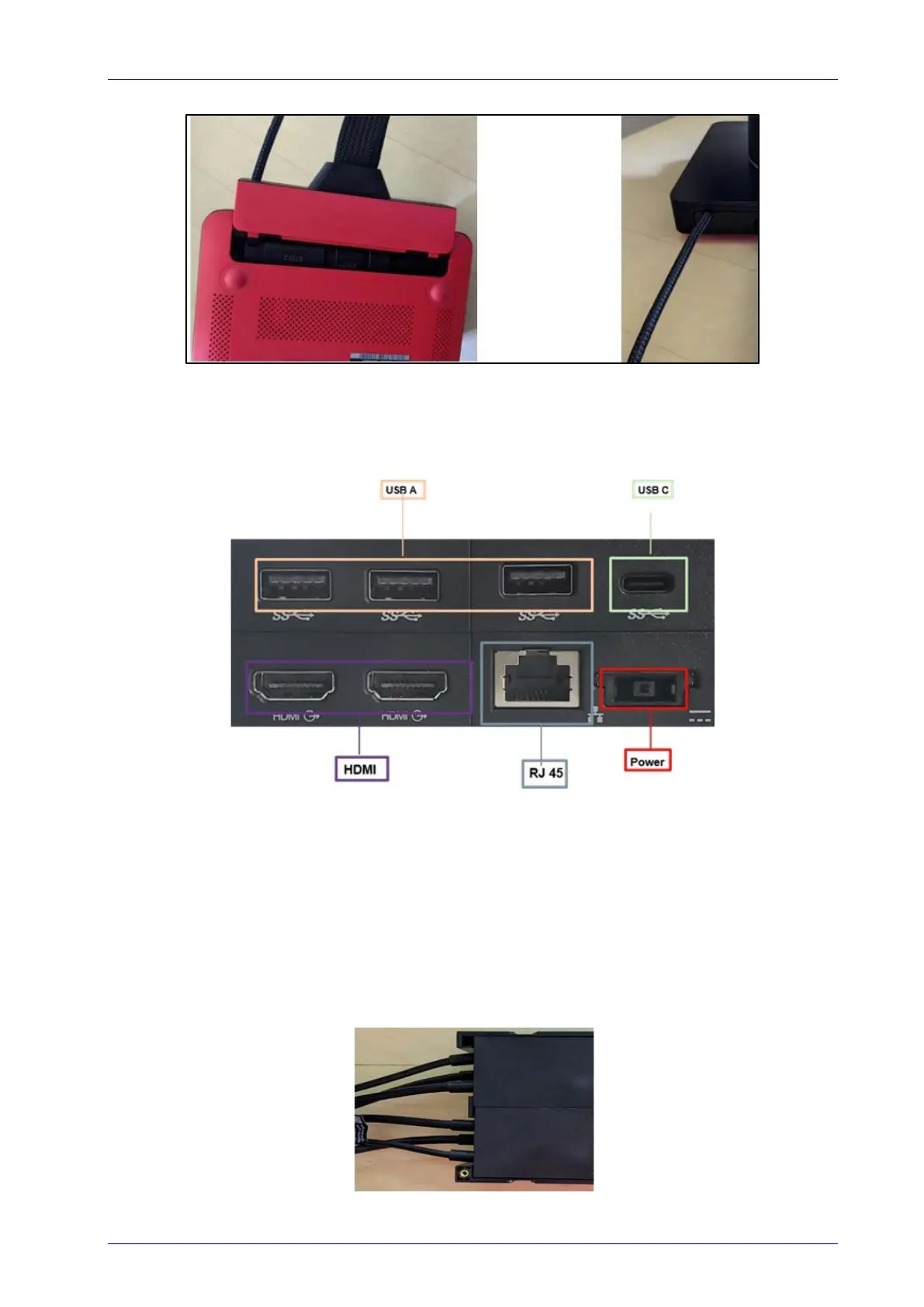

2.1.1.3 Connecting Peripherals to the Block Side of One Cable
To connect peripherals to the block side of One Cable:
1. Power, Internet Connections, in-room Displays, and Peripherals are connected to the
Hub by using the ports on the Block Side of One Cable.
2.1.1.4 Connecting the Power Cable
To connect the power cable:
Take the yellow end of the power cable and insert it into the lower right port.
2.1.1.5 Mounting One Cable inside the Security Box (Optional)
To mount One Cable inside the security box:
When all four blocks are connected, drop into the security box. Then connect your
accessories and displays, securing with a zip tie (not included). Add the box top and
security screw. The box can then be mounted under a table, on a wall or behind a display
