AudioControl Avalon G4 User Manual

17
Installation Manual
Congurations

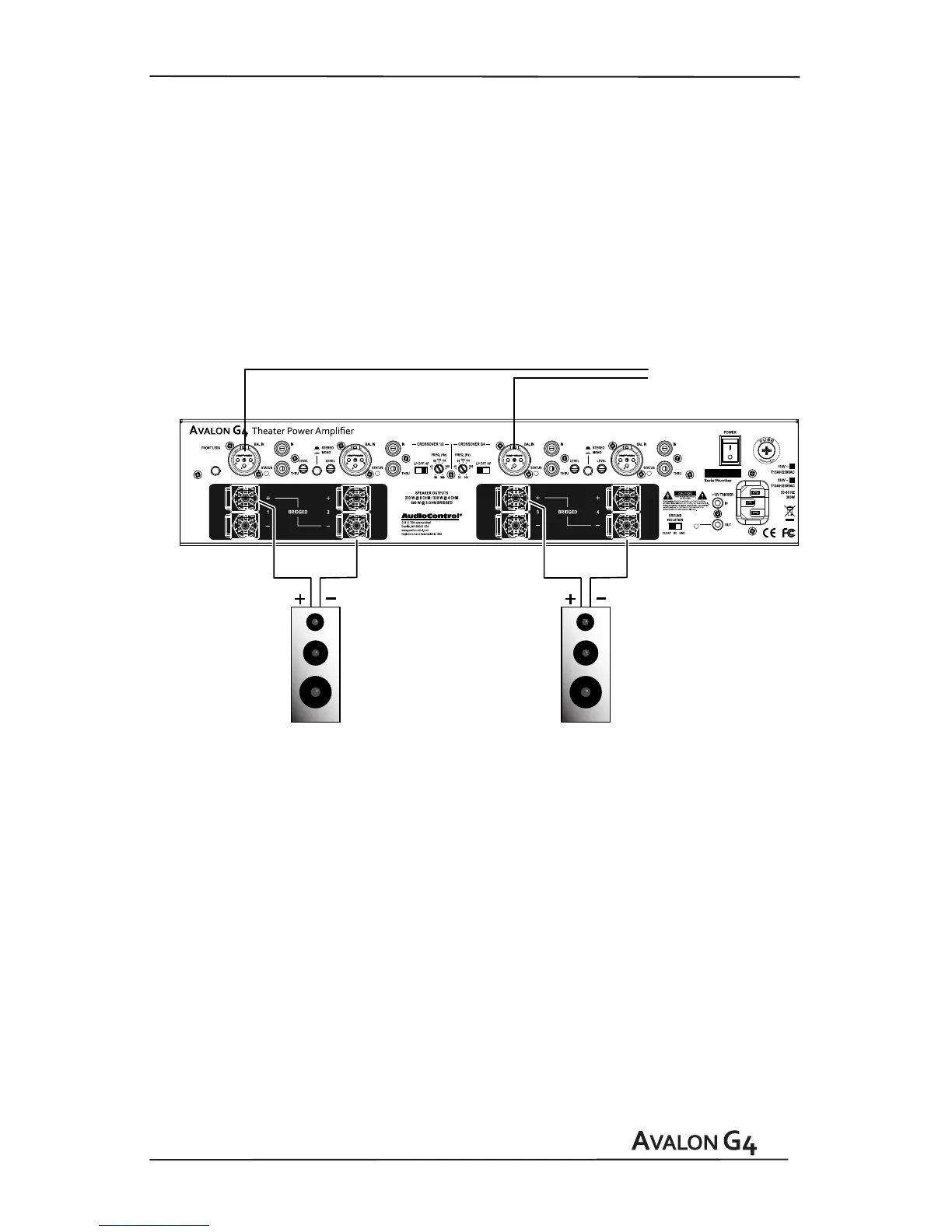

2ChannelsinBridgedMono
If you have two 8 ohm speakers that can handle the prodigious power of the
Avalon G4, with each channel pair run in bridged-mono then hook them up!
Run the left line-level output from your preamplier to Channel input 1, and run the
right output to Channel input 3. (There is no need to connect the input 2, or input 4.)
Press the mono button for each channel pair then adjust the gain controls for each
pair so that they are the same. Use the detents for quick set up – you’ll have more
than enough gain to blow out your windows if that’s your thing.
Your Amazingly-Wonderful
Full-Range
Pride and Joys
(8 Ohm Minimum)
Crossover 1/2
OFF
Crossover 3/4
OFF
Switch MONOSwitch MONO
Connect to
Preamplier/Receiver
Left and Right
Line-Level outputs
Left
Right
