Quick Start Guide

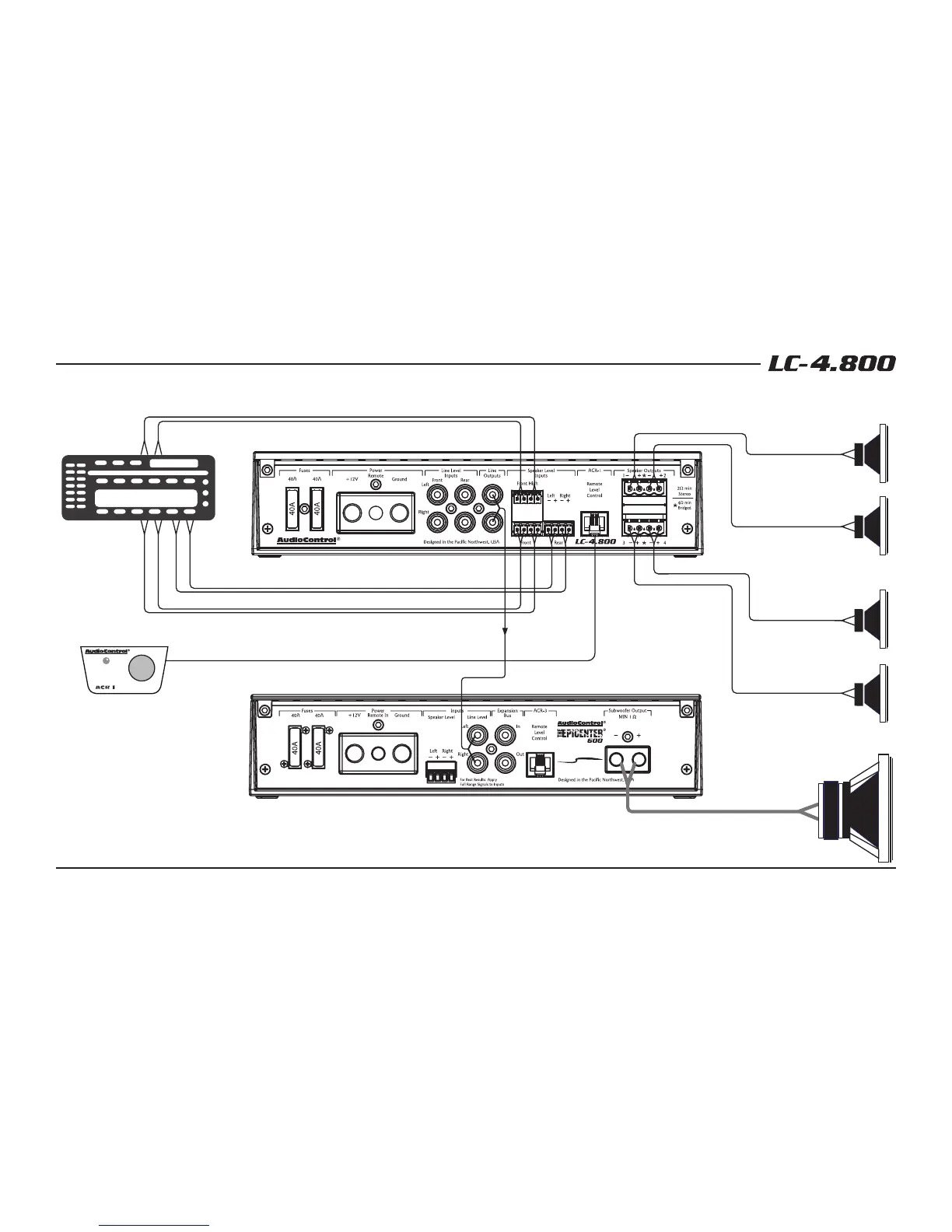

System #1: Using speaker-level inputs
Notes:
Both crossovers are set to 80 Hz
high-pass.
If the AccuBASS®/ACR-1 switches
are set to “disabled” the ACR-1 can
control just the line-level output,
so you can adjust the subwoofer
level on the y.
Factory
Radio
Front High Speaker-level output
Speaker-level output
80 Hz and above
Speaker-level output
80 Hz and above
Front Low Speaker-level output
Line-Level
EPICENTER 600 Subwoofer Amplifier
Rear Speaker-level output
+
+
+
+
ACR-1
Subwoofer
+
