5.7 CONNECTION WITH HANDS-FREE PHONE KIT
PHONE +/- Input compatible with the hands-free kit speaker
output
(see 4.2.3).
Sensitivity adjustable from 2 to 15 V RMS.
PHONE MUTE: bit Ten D ON. This gives priority to
the phone conversation, allowing you to resume audio
reproduction when the phone call is finished.
PHONE MUTE: bit Ten D OFF. This turns the bit Ten D on.
When a phone call is received, the ring tone is audible after
around 5 seconds. Once the phone call is finished, the bit Ten
D turns off.
Nota: The PHONE MUTE terminal can be used to enable
the AUX IN, OPTICAL IN input
(see 8.6.5). In this case
the user won’t be able to interface with the hands-free kit
through the bit Ten D.
Pink: PHONE +
Orange: PHONE MUTE
Pink: PHONE -
01234...
CALL
AD Link
AC Link

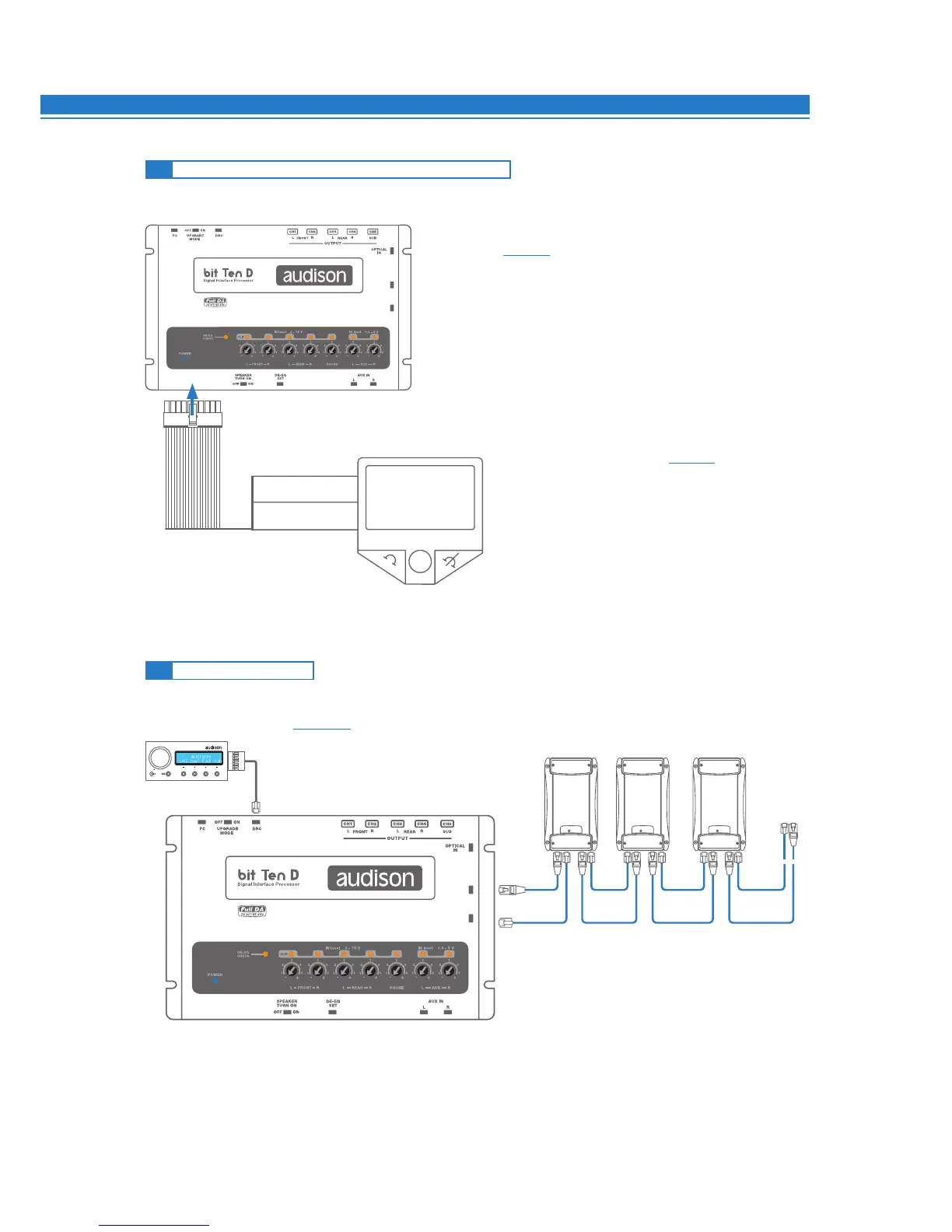

5.8 OUTPUT SIGNALS
1. DIGITAL OUTPUTS TO AN AMPLIFIERS SYSTEM PROVIDED WITH AD LINK AND AC LINK CONNECTIONS
(Thesis TH, Voce AV) (vedi 8.1.12).
Remark: the output channels are 8 in total. The sum of the channels of the amplifiers connected must not exceed 8.
To increase the number of channels, however, the same function (AMP ID) can be assigned to more than one amplifier
(amplifiers working with same signal). To set up the amplifiers connected with this configuration, carefully read the
amplifiers’ Advanced Manual.
AD Link
AC Link
AV - TH AV - TH
Other AV / TH
Amplifiers
AV - TH
