Audison LRx 4.5 - LRx 4.1 k: 4;3 Channel Mode Wiring; LRx 4.1 k: 4 Channel Mode Wiring

33 34
The Universal Sound
Manuale d’uso
LRx 4.5
LRx 4.1k
B Left B Right
B Left
+ B Right -
SUB RIGHT
or SUB MONO (3 Ch)
SUB LEFT
A Left A Right
FRONT RIGHT
IN A Ch (ECI-L or ECI-H) FRONTIN B Ch (ECI-L or ECI-H) SUB
FRONT LEFT
OUT MODE
4/3 Ch
PRE OUT
Optional use
1 1

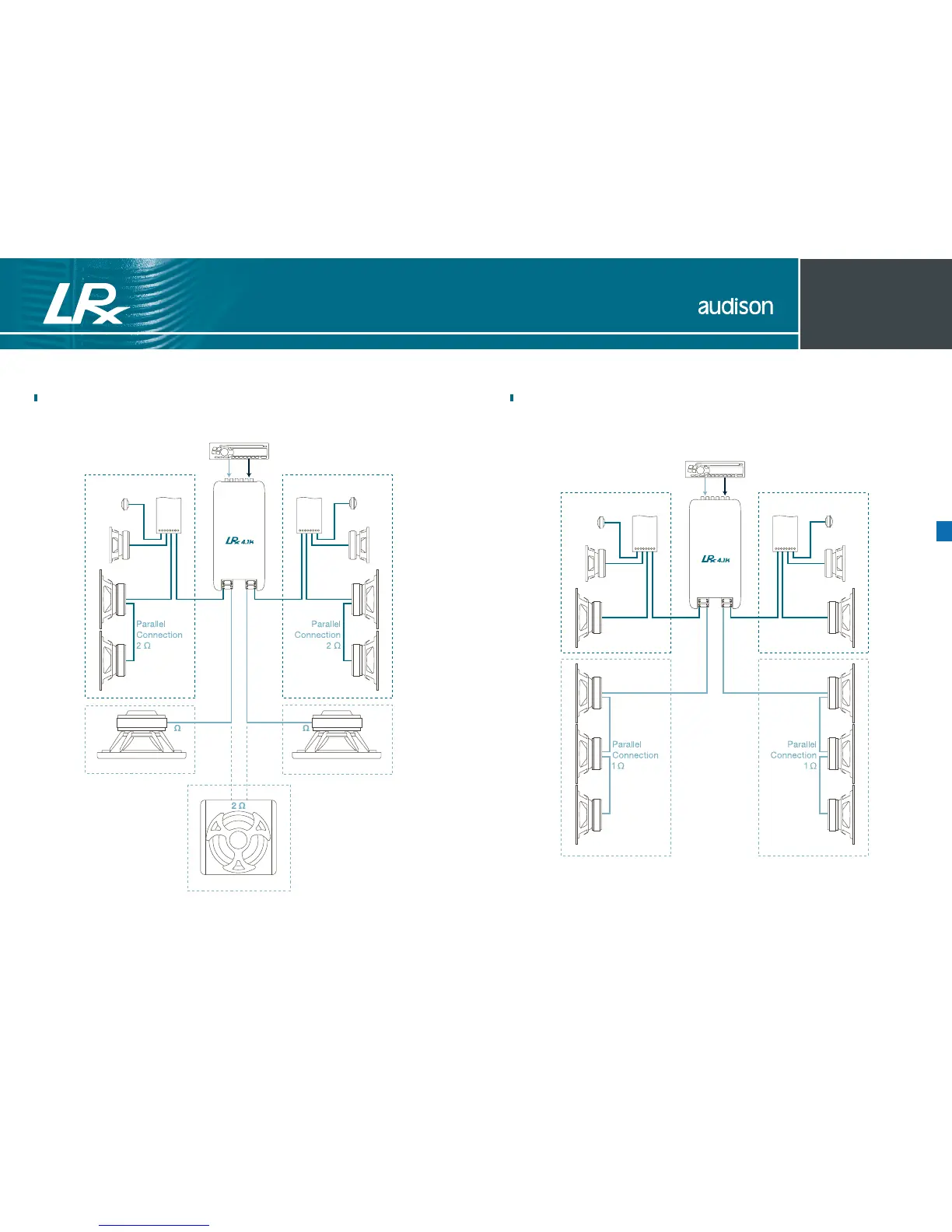

LRx 4.1k - 4/3 Ch Mode: 3 vie Front + Sub stereo/mono
MID-HIGH RIGHTMID-HIGH LEFT
B Left B Right
WOOFER LEFT WOOFER RIGHT
A Left A Right
IN A Ch (ECI-L or ECI-H) MID-HIGHIN B Ch (ECI-L or ECI-H) WOOFER
OUT MODE
4 Ch
PRE OUT
Optional use
LRx 4.1k - 4 Ch Mode: 4 vie Front multichannel
