Audison LRx 4.5 - LRx Amplifier Filter Section; Filter Configuration Examples

5857
The Universal Sound
Owner’s manual
20 Hz200 2K 20K
20 Hz200 2K 20K
500÷5k
12 dB/Oct.
20 Hz200 2K 20K
50÷500
12 dB/Oct.
Full Range
20 Hz200 2K 20K
20 Hz200 2K 20K
50÷500
20 Hz200 2K 20K
500÷5k
12 dB/Oct.
12 dB/Oct.
Full Range

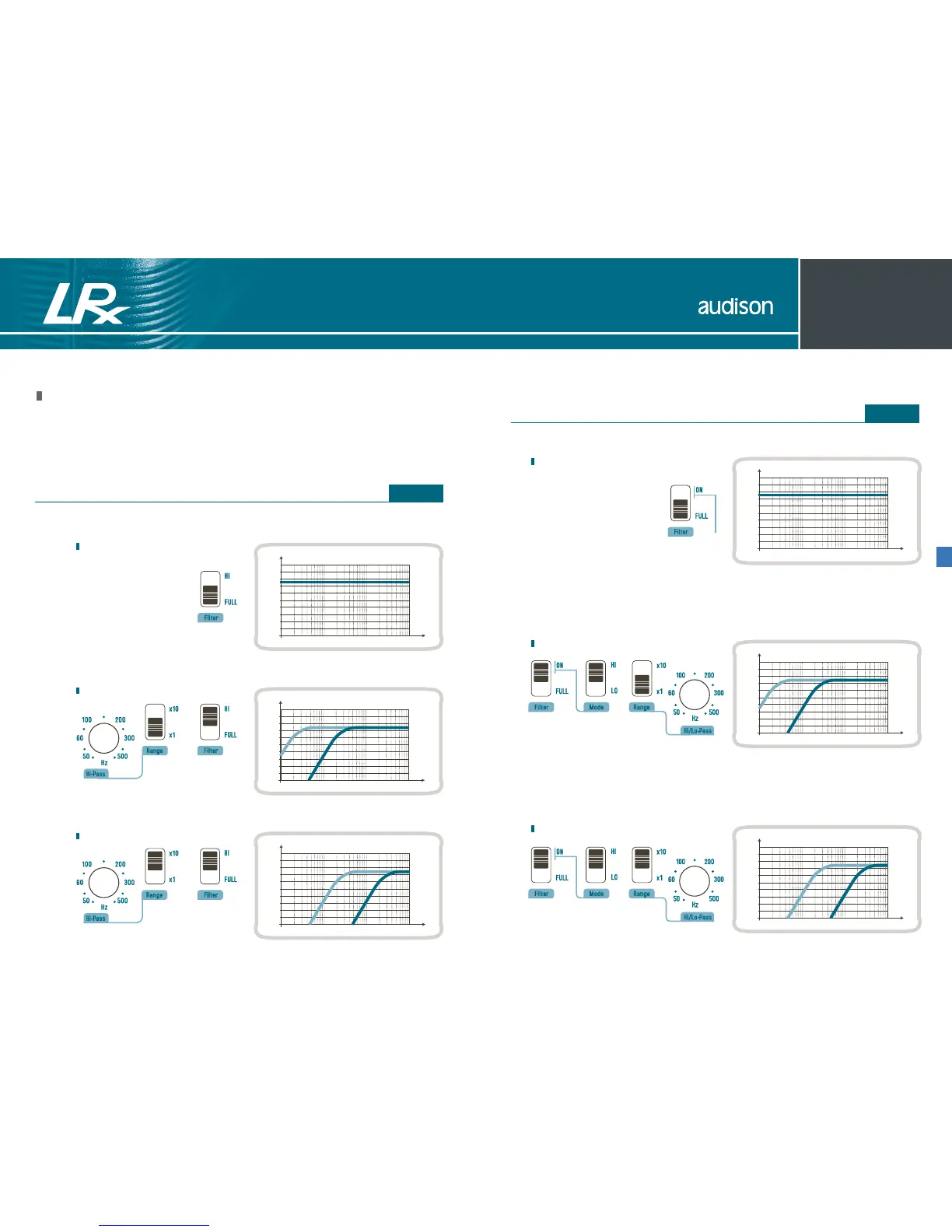

Filter
LRx amplifiers have a flexible, completely independent filter section.
After choosing the configuration you like, you can easily adjust every pair of channels the way
you prefer. For more information about the filters use in various configurations, please refer to
the chapter: Configuration, starting on page 65.
A Channels
Config. 1, 2, 5
Config. 3, 4, 6
Config. 3, 4, 6
Config. 1, 3, 7
Config. 2, 4, 8
Config. 2, 4, 8
B Channels
LRx 4.5
LRx 4.1k
