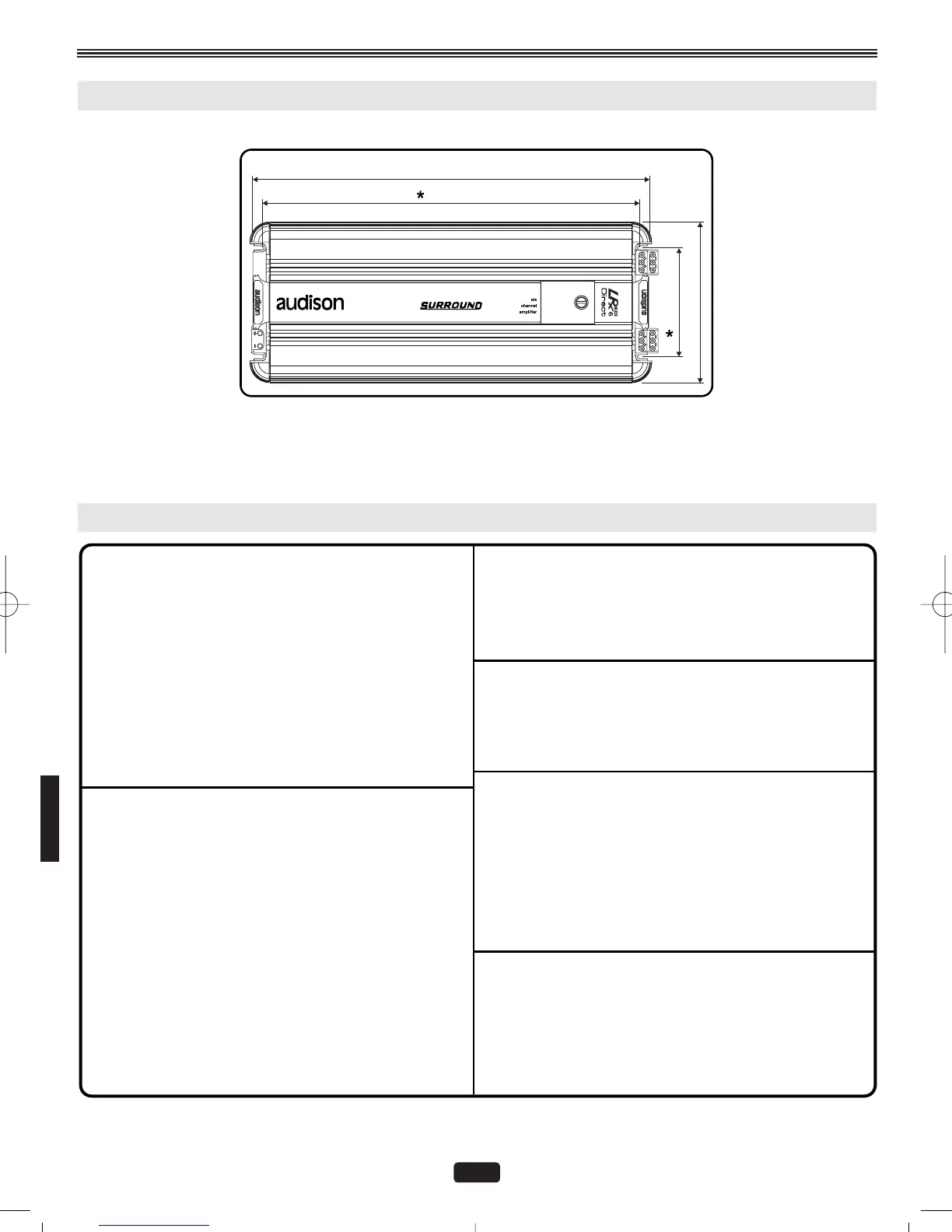

TECHNICAL FEATURES
32
119 mm
412 mm
176 mm
445 mm
Drilling dimensions for fixing
*
SIZE FOR FIXING
LRx 6.SR Direct
POWER SUPPLY
Voltage:. . . . . . . . . . . . . . . . . . . . . . . . . 11 ÷ 15 VDC
Idling current: . . . . . . . . . . . . . . . . . . . . . . . . . . 1.1 A
Idling current when off: . . . . . . . . . . . . . . 0.02 mA
Consumption @ 13.8 VDC
(Max Musical Power):
- A config. (see Output Power): . . . . . . . . . 34.5 A
- B config. (see Output Power): . . . . . . . . . . . 51 A
- C config. (see Output Power): . . . . . . . . . 60.5 A
AMPLIFIER STAGE
Distortion – THD (1kHz): . . . . . . . . . . . . . . 0.009 %
Bandwidth (-3dB): . . . . . . . . . . . . . . 4 Hz ÷ 85 kHz
S/N ratio(A weighed @ 1V): . . . . . . . . . . . . 105 dB
Damping factor (1 kHz, 4 Ohms):. . . . . . . . . . . 240
Input sensitivity: . . . . . . . . . . . . . . . . 0.2 ÷ 5 VRMS
Input impedance: . . . . . . . . . . . . . . . . . 15 kOhms
Load impedance:
- Front/Rear/Center/Sub: . . . . . . . . . . 4 - 2 Ohms
Nominal output power (RMS)
NP @ 12VDC; THD 0.3%: . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . 55W x 5 (4 Ohms) + 150W x 1 (4 Ohms)
Output power (RMS) @ 13.8 VDC; THD 1%
- A config.: 55W x 5 (4 Ohms) + 150W x 1 (4 Ohms)
- B config.: 80W x 5 (2 Ohms) + 150W x 1 (4 Ohms)
- C config. : 80W x 5 (2 Ohms) + 220W x 1 (2 Ohms)
FILTERS/INPUTS
Subsonic: Bypass/ 24dB/Oct. Hi-Pass, 16÷32 Hz
(pre-set at 20 Hz)
Inputs: . . IN Front - IN Rear - IN Center - IN Sub
OTHER FUNCTIONS
Remote IN: . . . . . . . . . . . . . . . . 7 ÷ 15 VDC – 1 mA
Remote OUT (3 Outs): . . . . . . . . 12 VDC – 10 mA
Auxiliary power supply (PPS): ±12 VDC – 300 mA
IN VCR (SUB volume) VCA/VCA1D attenuation:
100 dB
Fuse: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60 A
MAX SIZE (L x H x D): . . . . . . 176 x 56 x 445 mm
WEIGHT: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.9 kg
