3. Name plate

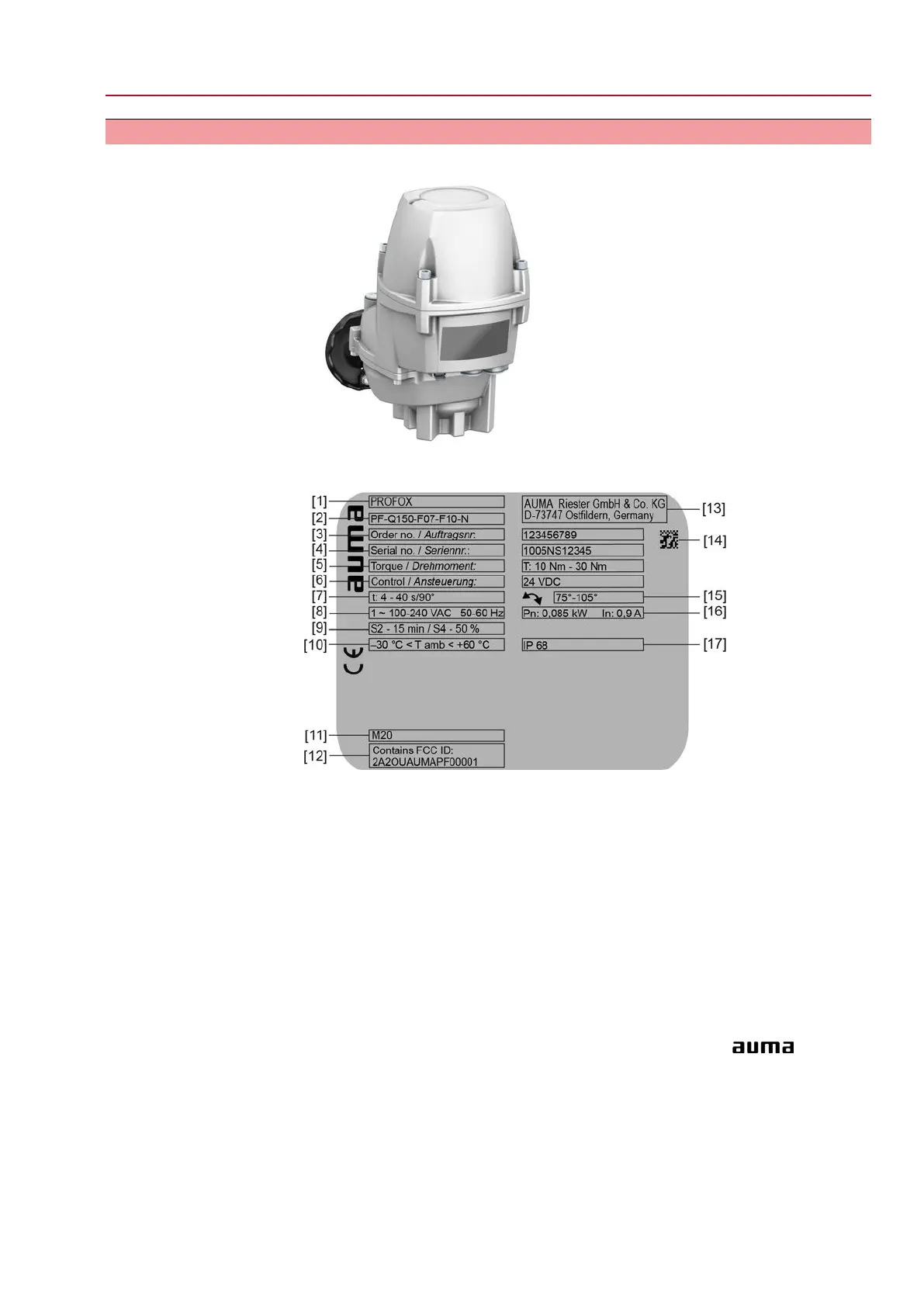

Figure 4: Name plate arrangement
Figure 5: PROFOX name plate (example of I/O interface)
[1] Product name
[2] Type designation
[3] Order number
[4] Actuator serial number
[5] Torque range in direction OPEN/CLOSE
[6] Control
[7] Operating time range in [s] for a part-turn movement of 90°
[8] Current type, mains voltage, mains frequency
[9] Type of duty
[10] Permissible ambient temperature
[11] Threads for cable entries at electrical connection
[12] FCC ID
[13]
Name and address of manufacturer (manufacturer logo: )
[14] Data Matrix code
[15] Swing angle
[16] Nominal power and nominal current
[17] Enclosure protection
