7. Check settings:
If the symbol (CLOSED) is no longer in alignment with mark on the cover:
→
Repeat setting procedure.
9.10. Switch compartment: close
Danger of corrosion due to damage to paint finish!
→
Touch up damage to paint finish after work on the device.
1. Clean sealing faces of housing and cover.
2. Check whether O-ring [3] is in good condition, replace if damaged.
3. Apply a thin film of non-acidic grease (e.g. petroleum jelly) to the O-ring and
insert it correctly.

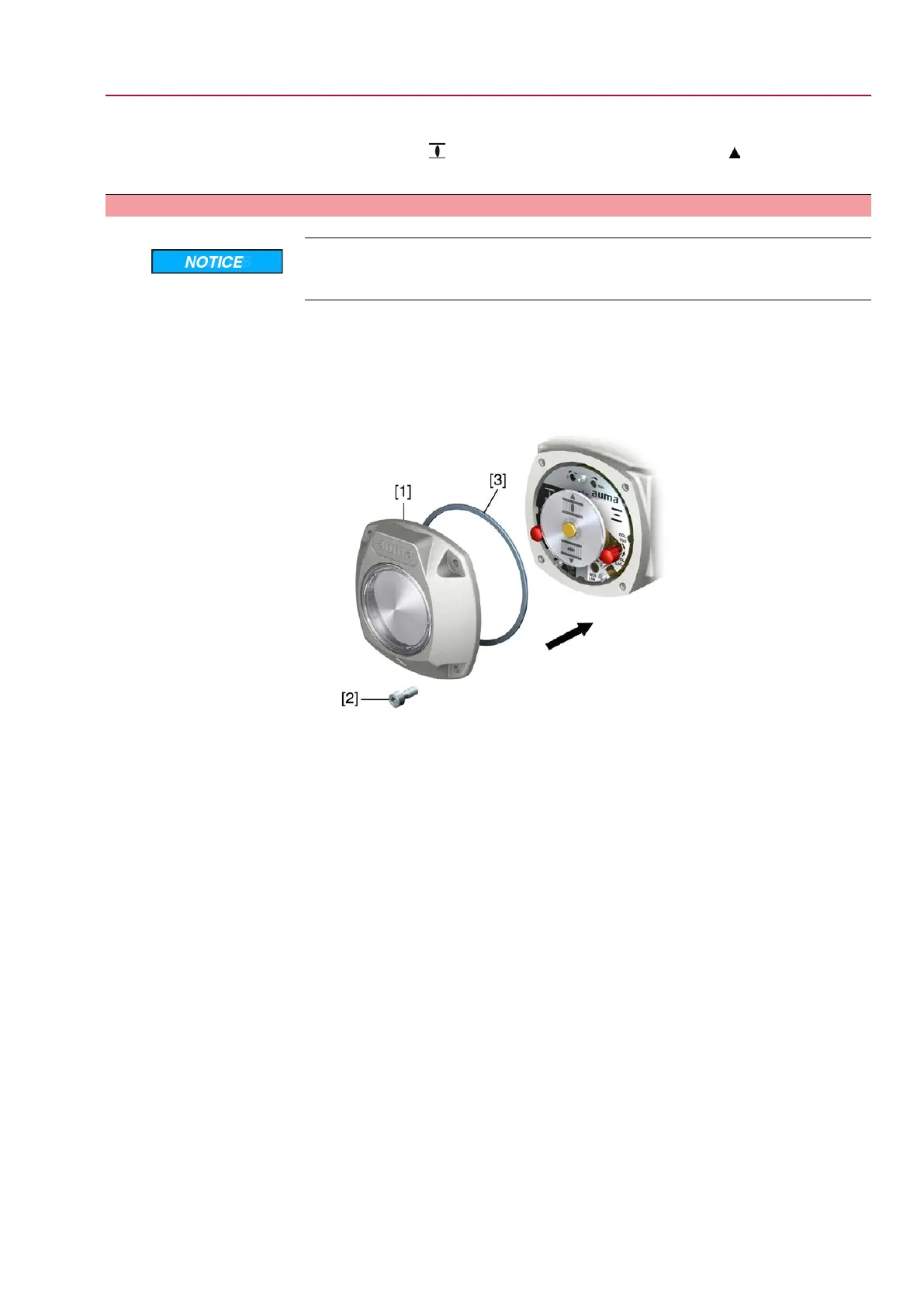

Figure 63:
4. Place cover [1] on switch compartment.
5. Fasten screws [2] evenly crosswise.
59
SQ 05.2 – SQ 14.2 / SQR 05.2 – SQR 14.2 Control unit - electromechanical
AC 01.2 Intrusive Modbus RTU Commissioning (basic settings)
