10.1.1. Measuring range: set
For measuring range setting, voltage must be applied at the position transmitter.
For output current verification, connect a test device for 0 – 20 mA to measurement
points (+/–) (for 2-wire systems, connecting a test device is imperatively required).
Information
●
Both measuring ranges 0/4 – 20 mA and 20 – 0/4 mA (inverse operation) can
be set.
During setting process, the measuring range (normal or inverse operation) is
assigned to the end positions by push button S1/S2 assignment.
●
For 2-wire systems, switch off <LED end position signalling> prior to setting the
measuring range.
●
Setting mode activation clears the settings in both end positions and sets the
output current to a value of 3.5 mA. After activation, both end values (0/4 mA
and 20 mA) need to be reset.
●
In case of inadvertent incorrect adjustment, the settings can always be reset
by renewed activation of the setting mode (simultaneous pressing of [S1] and
[S2]).

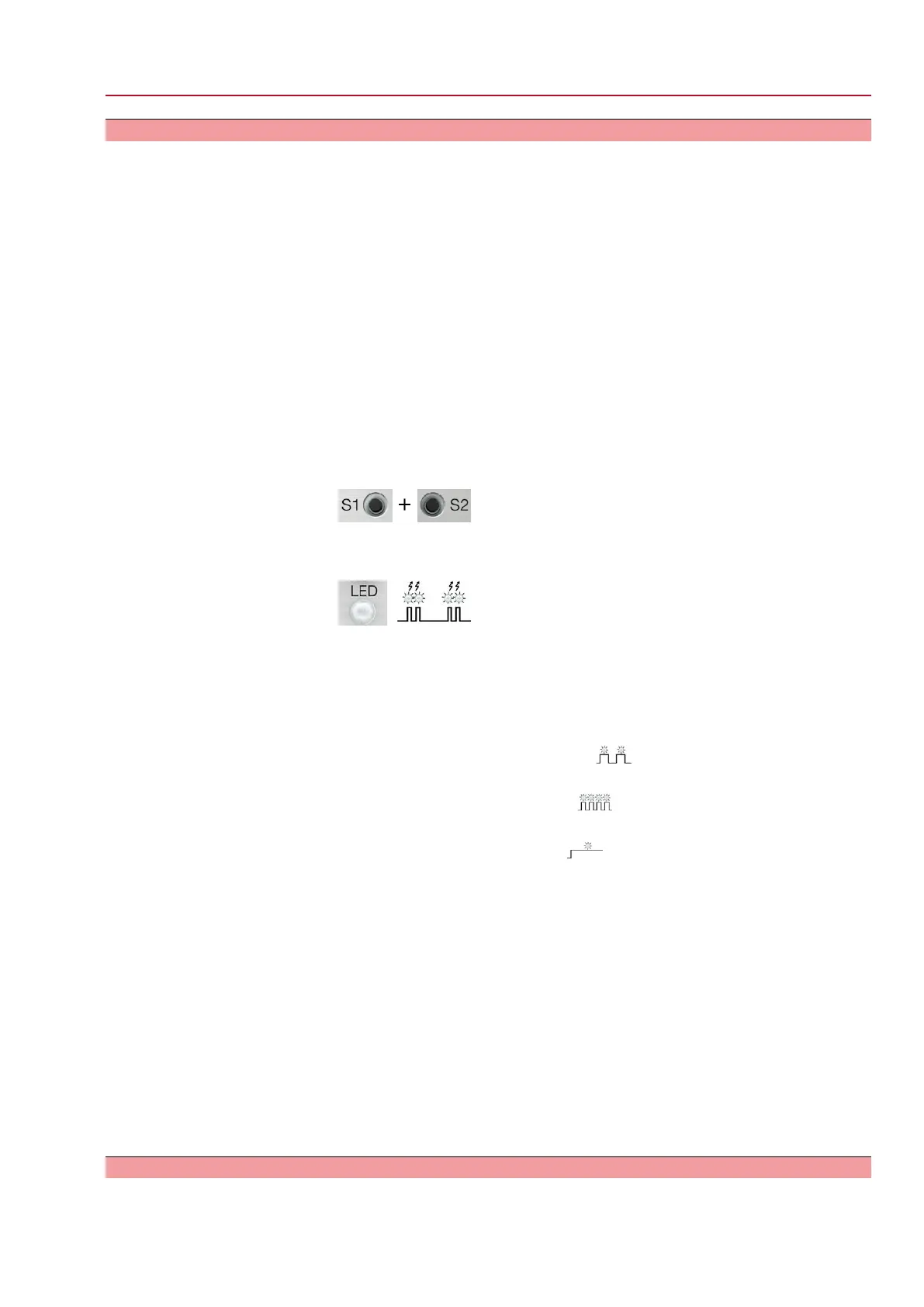

Activate setting mode
1. Press both push buttons [S1] and [S2] and hold down for 5 seconds:
➥
By pulsing double flashes, the LED indicates that the setting mode is correctly
activated:
➥
For any other LED flash sequence (single/triple flashing): Refer to <Faults
during commissioning>.
Set measuring range
2. Operate valve in one of the end positions (OPEN/CLOSED).
3. Set desired output current (0/4 mA or 20 mA):
→
for 4 mA: Hold down push button [S1] for approx. 3 seconds,
until LED is blinking slowly .
→
for 0 mA: Hold down push button [S1] for approx. 6 seconds,
until LED is blinking fast .
→
for 20 mA: Hold down push button [S2] for approx. 3 seconds,
until LED is illuminated .
Information: For 2-wire systems read current values at test device.
4. Operate valve into opposite end position.
➥
The value set in end position (0/4 mA or 20 mA) does not change during travel
in setting mode.
5. Perform setting in the second end position following the same steps.
6. Approach both end positions again to check the setting.
→
If the measuring range cannot be set:
Refer to <Faults during commissioning>.
→
If the current values (0/4/20 mA) are incorrect:
Refer to <Current values: adjust>.
→
If the current value fluctuates (e.g. Between 4.0 – 4.2 mA):
Switch off LED end position signalling.
Refer to <LED end position signalling: switch on/off>.
10.1.2. Current values : adjust
The current values (0/4/20 mA) set in end positions can be adjusted at any time.
Common values are e.g. 0.1 mA (instead of 0 mA) or 4.1 mA (instead 4 mA).
67
SQEx 05.2 – SQEx 14.2 / SQREx 05.2 – SQREx 14.2 Control unit - electromechanical
ACExC 01.2 Intrusive Commissioning (optional equipment settings)
