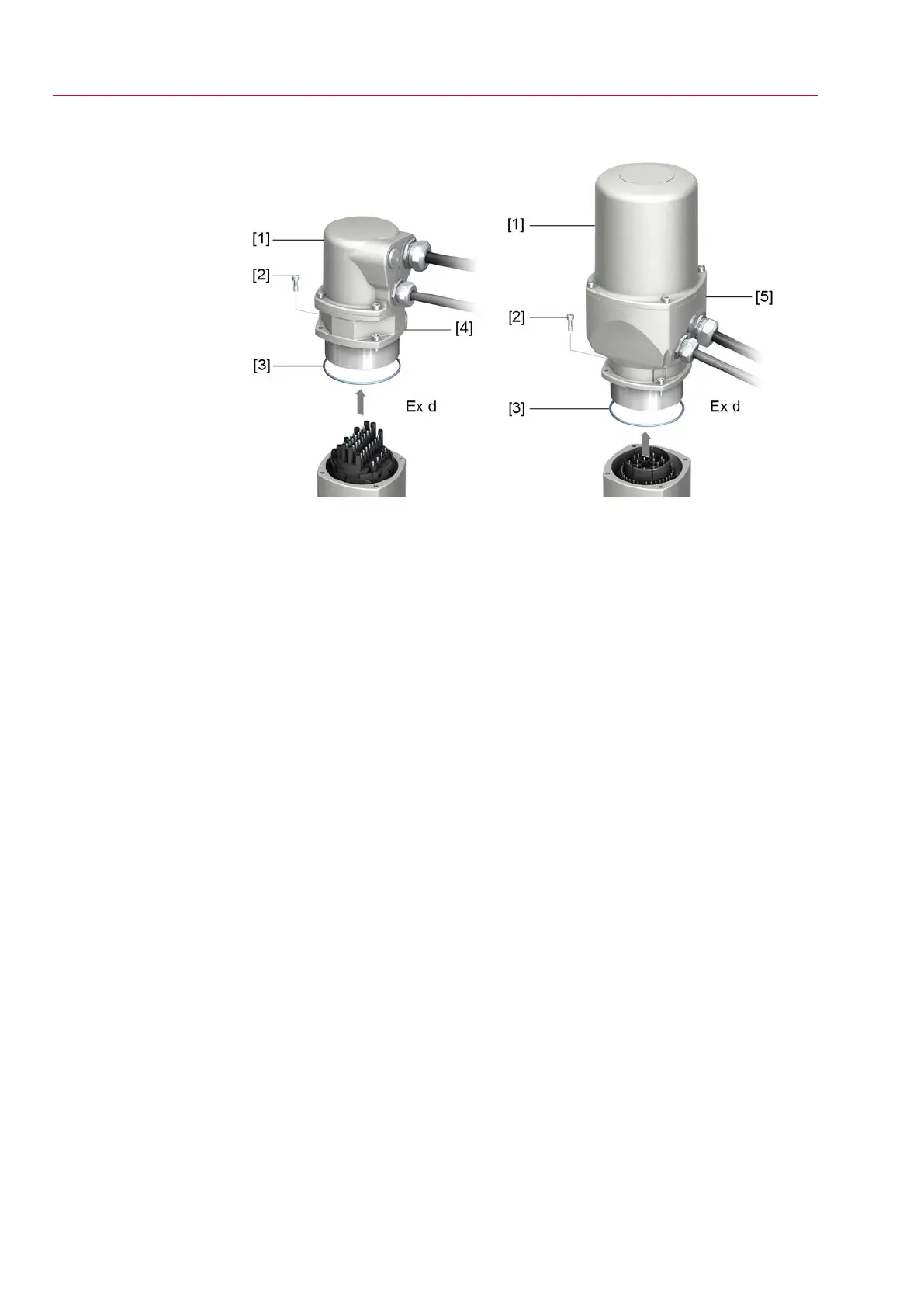

Figure 77: KP/KPH and KES electrical connection
[1] Cover
[2] Screws for housing
[3] O-ring
[4] Plug-in frame (KP/KPH)
[5] Connection frame (KES)
Removing the plug:
1. Loosen the screws [2].
2. Remove electrical connection.
➥
Cover [1] and plug-in type frame [4] or connection frame [5] remain together.
3. Seal open plug/socket connection, e.g. using AUMA protection cover and
parking frame.
Fitting the plug/socket
connector:
4. Clean sealing faces of plug/socket connector and housing.
5. Preserve joint surfaces with an acid-free corrosion protection agent.
6. Check whether O-ring [3] is in good condition, replace if damaged.
7. Apply a thin film of non-acidic grease (e.g. petroleum jelly) to the O-ring and
insert it correctly.
8. Replace electrical connection and fasten screws evenly crosswise.
80
SQEx 05.2 – SQEx 14.2 / SQREx 05.2 – SQREx 14.2 Control unit - electromechanical
Servicing and maintenance ACExC 01.2 Intrusive
