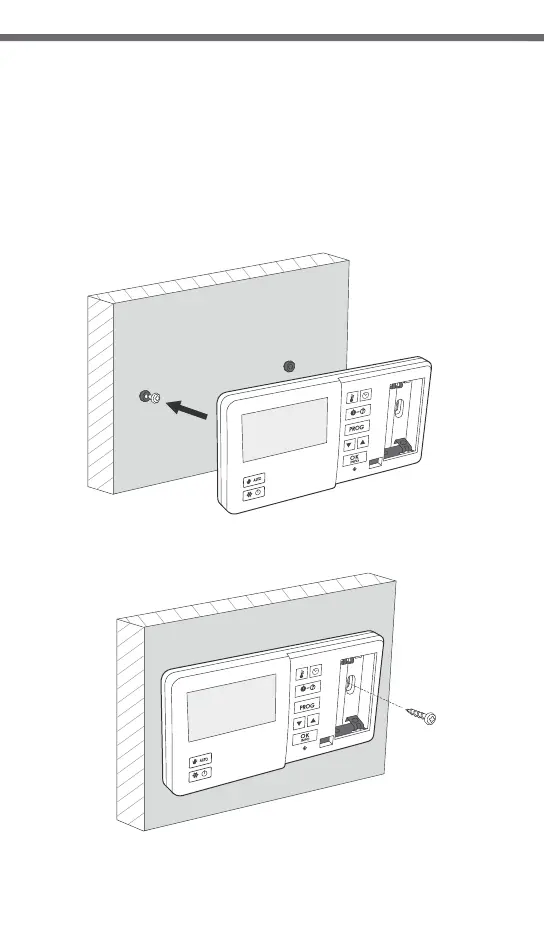

Fastening the temperature regulator to the wall
1.Drill two holes 6 mm in diameter in the wall (use the template attached
to the manual to mark the spacing between these holes).
2.Insert plastic wall plugs (included in the kit).
3.Screw in the left screw with a 3 mm clearance.
4.Put the regulator over the screw head and slide it to the left (pay attention
to the key-hole in the rear wall of the regulator).
NOTE: If the wall is wooden, there is no need to use wall plugs. In such a case,
drill two holes 2.7 mm in diameter instead of 6 mm, and screw the
screws directly into the wood.
5.Screw in the right screw, making sure it holds the regulator securely.
3. Connect the heating device to the
control connection terminals of the
AURATON RTH receiver.
Proceed in accordance with the service
manual of the heating device. Most
commonly, the COM (common) and NO
(normally open) terminals.
4. Connect power supply conductors to the
power supply terminals of the AURATON
RTH receiver, observing safety rules.
5. After connecting the conductors, they must
be secured with the cable tie clamps and
reinstall protective covers of the AURATON
RTH receiver.
Fastening the RTH receiver
1. Take off protective covers from the lower
and upper part of the AURATON RTH
receiver.
2. Take off cable tie clamps from the lower
and upper part of the AURATON RTH
receiver.
protective cover
cable tie clamp
NOTE: When installing the AURATON RTH
receiver its power supply must be
disconnected. It is recommended that the
installation is performed by a qualified
specialist.
NOTE:
The permanent electrical system
of a building must include a breaker
and an overcurrent protection.
