8 PROGRAMMING
The dip switches must be programmed when the battery is removed from the
transmitting unit. Programming must only be carried out by authorised per-
sonnel.
The incorrect closure of the transmitting unit can compromise the seal be-
tween the casings and thereby the protection degree from dust and water.
For the correct functioning, the group of 8 dip switches (excluding DIP 1) for
the radio modules E16STXUS1 (transmitting unit) and E16SRXUS1 (receiving
unit) must be set in the same way.

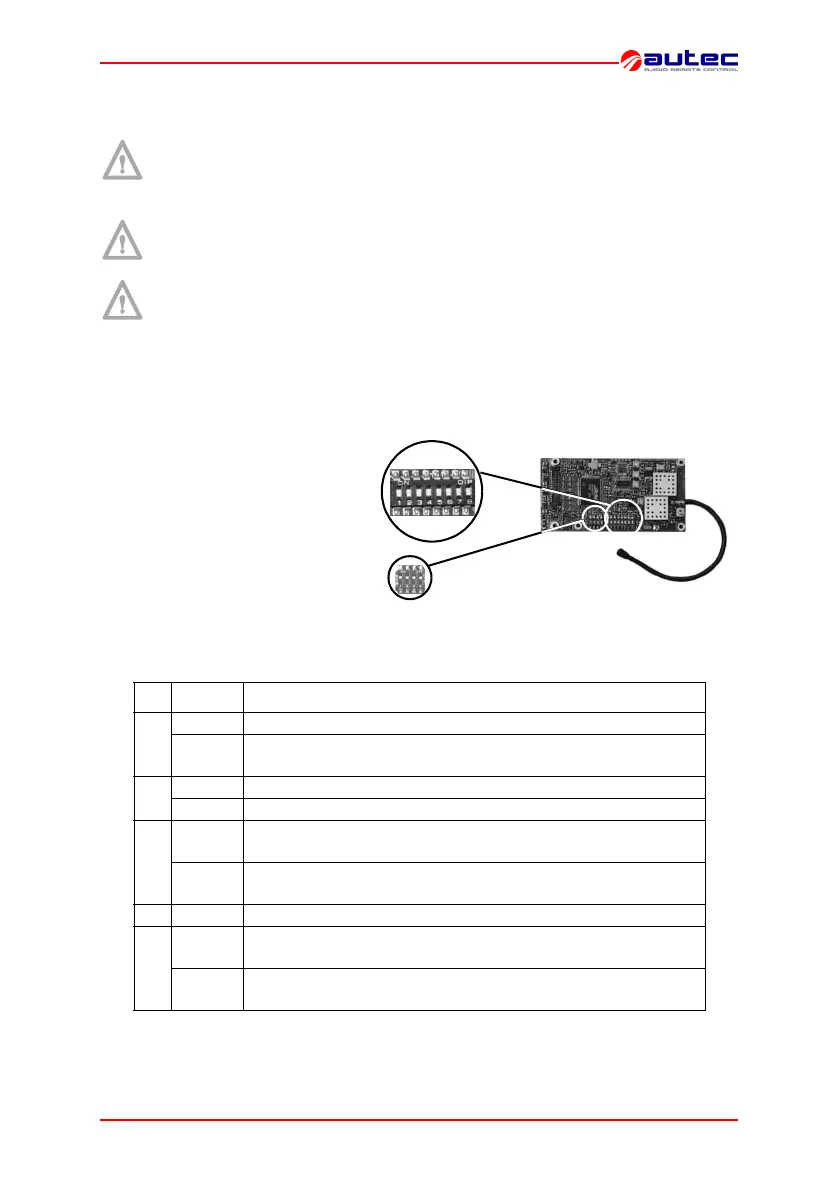

8.1 PROGRAMMING THE E16STXUS1 TRANSMITTING MODULE
Group of 8
dip switches
Group of 4 dip
switches
The group of eight dip switches locat-
ed on the radio module are used to
program some functions and set the
working frequency.
The programming set in the other
group of four dip switches must never
be modified.
Group of 8 dip switches
DIP STATE FUNCTION
1
ON
OFF
2
ON
OFF
3
ON
OFF
3-7
8
ON
OFF
The transmitting unit never switches off automatically
If the transmitting unit stays switched on without any movement
commands entered, it switches off after approx. 3.5 minutes
Deactivation of low battery warning from horn on machine
Activation of low battery warning from horn on machine
If DIP 8 is OFF automatic scan of the frequencies in the band
915 -928 MHz
If DIP 8 is OFF automatic scan of the frequencies in the band
902 - 915 MHz
ON/OFF If DIP 8 is ON see “Appendix: Frequency Table”
Manual selection mode of the frequencies using DIP 3 - DIP 7
(refer to “Appendix: Frequency Table”)
Automatic scan mode of the frequencies in the band selected by
DIP 3 (DIP 4 - DIP 7 indifferent)
