2 Transmitting units
- 7 -
LIMM&SA0-00.fm
2 TRANSMITTING UNITS

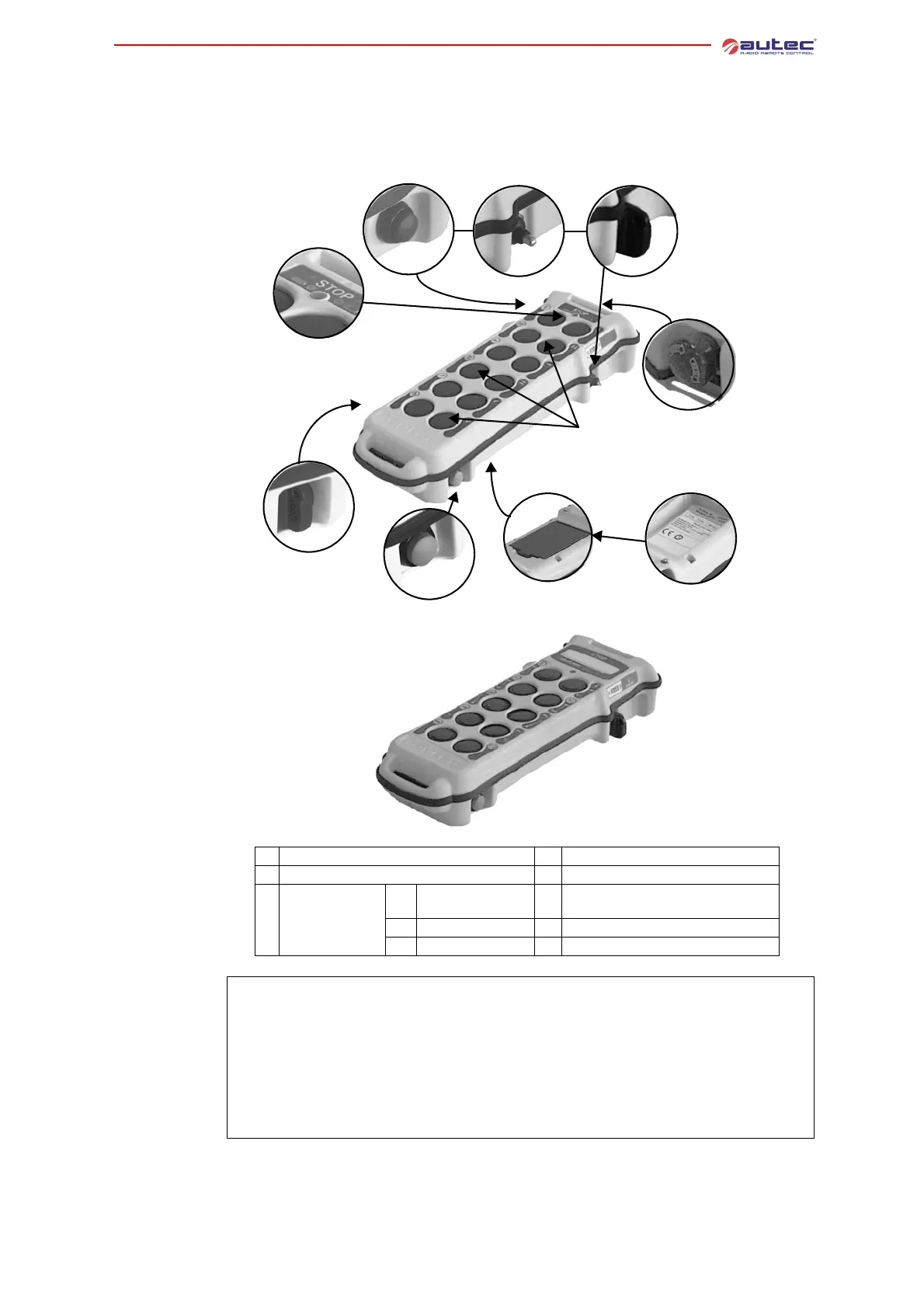

2.1 Description of MK12 and MK10
(photos shown below only represent two of the possible configurations)
MK12
MK10
Technical data
B
D
E
G
F
H
A
C
C
C1 C2 C3
A
starting keyswitch
D
STOP pushbutton
B
signalling LED
E
pushbuttons
C
Actuator
(if present)
C1
pushbutton
F
technical data plate, identification
plate (in the battery housing)
C2
toggle switch
G
START pushbutton
C3
keyswitch selector
H
battery
Power supply (battery pack MBM06MH)
a
................................................ NiMH 7.2 Vdc
Antenna .................................................................................................... internal
Battery capacity with fully charged battery (continuous use at 20°C)................ 15 hours
“Low battery” warning................................................................................. 3.5 min
Housing.............................................................................................PA 6 (20% fg)
Protection degree...............................................................................NEMA 4 [IP65]
Dimensions...................................................... 3.3" x 10.2" x 2" [85 x 260 x 50 mm]
Weight ............................................................................................1.4 lbs [650 g]
Transmitting power (frequency 433 MHz).... meets FCC Part 15 for free-license operation
Transmitting power (frequency 870 MHz).... meets FCC Part 15 for free-license operation
a. refer to battery technical data in the battery charger manual.
