4 OPERATING MODE OF “MASTER/SLAVE”
4.1 Command “Take/Release 2” or “Release 2”
POWER ON AND
START UP
1
2
COMMAND
“TAKE/RELEASE 2” OR
“RELEASE 2”
1
2
POWER ON AND
START UP
COMMAND
“TAKE/RELEASE 2”
OR “RELEASE 2”
Transmitting
unit UTX-M

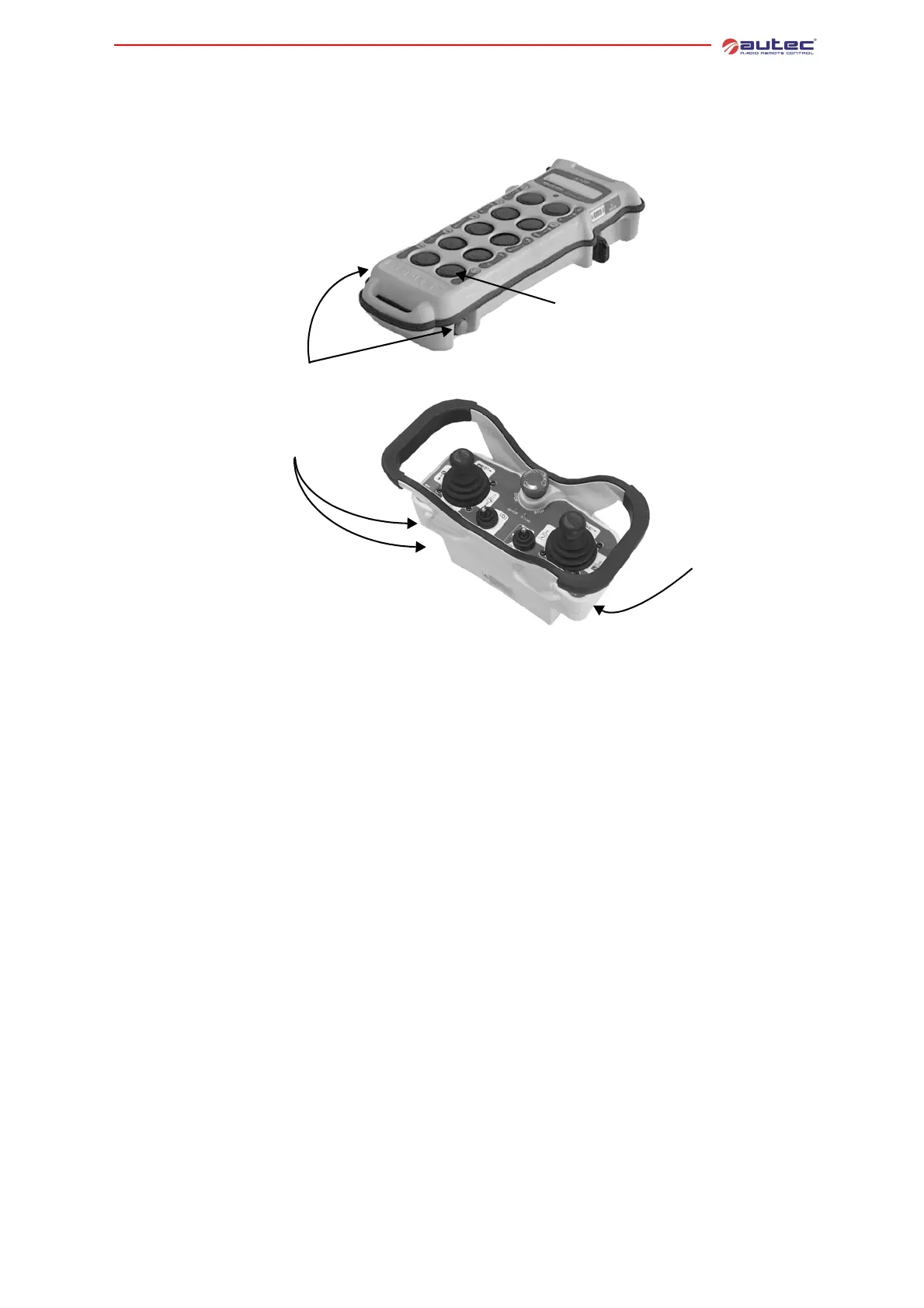

The transmitting unit UTX-M has a “Take/Release 2” command that engages and releases the
receiving unit URX-2.
In order for the transmitting unit UTX-M to take control of the receiving unit URX-2 during start
up or working:
- press the START pushbutton and do not release it until the lamp (or horn) ENA-M of the re-
ceiving unit URX-2 switches on with ON blinking fast
- activate the “Take/Release 2” command within 3 seconds
A steady ON signal of the lamp (or horn) ENA-M indicates that the connection has succeeded.
From now on, the transmitting unit UTX-M completely controls the receiving unit URX-2, which
cannot be used by the transmitting unit UTX-S.
In order to release the receiving unit URX-2, activate the command “Take/Release 2” again. An
OFF status of the lamp (or horn) ENA-M confirms that the unit has been released. When the
transmitting unit UTX-M is switched off but has not released the receiving unit URX-2, the lamp
(or horn) ENA-M stays ON blinking slowly.
Transmitting
unit UTX-S
The transmitting unit UTX-S has a “Release 2” command to release the receiving unit URX-2.
During start up the transmitting unit UTX-S engages automatically the receiving unit URX-2, if
it is free: press the START pushbutton and do not release it until the lamp (or horn) ENA-S
switches on with steady ON.
From now on, the transmitting unit UTX-S completely controls the receiving unit URX-2, which
cannot be used by the transmitting unit UTX-M.
In order to release the receiving unit URX-2, activate the command “Release 2”. An OFF status
of the lamp (or horn) ENA-S confirms that the unit has been released. When the transmitting
unit UTX-S is switched off but has not released the receiving unit URX-2, the lamp (or horn)
ENA-S stays ON blinking slowly.
