6 Operating mode of the transmitting units
- 21 -
LIMM&SA0-00.fm

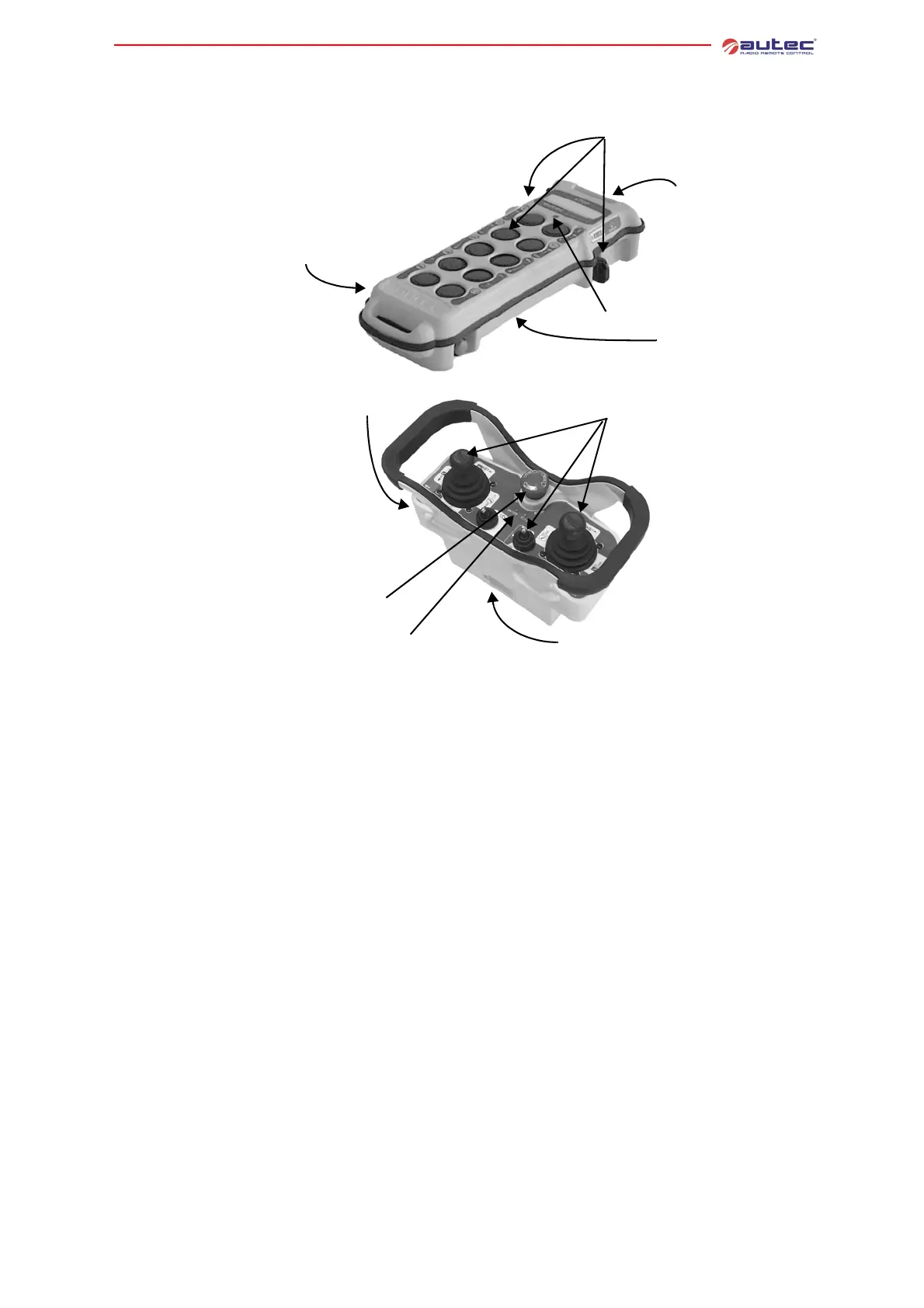

6 OPERATING MODE OF THE TRANSMITTING UNITS
COMMAND
ACTIVATION
SIGNALS
COMMAND
ACTIVATION
SIGNALS
SWITCHING OFF
STOP
BATTERY
SWITCHING OFF
STOP
BATTERY
6.1 Command activation
Activate the joysticks, pushbuttons and/or selectors related to any of the movement or selection
commands to be carried out.
Selector
1/1+2/2 in a
Master/Slave
The transmitting unit UTX-M has a selector 1/1+2/2 to select the working position:
- position 1 (single mode): the transmitting unit UTX-M works with the receiving unit URX-1
- position 1+2 (tandem mode): the transmitting unit UTX-M works both with the receiving unit
URX-1 and the receiving unit URX-2 (in this case the transmitting unit UTX-M must previously
engage the receiving unit URX-2: see paragraph 4.1)
- position 2 (single mode): the transmitting unit UTX-M works with the receiving unit URX-2 (in
this case the transmitting unit UTX-M must previously engage the receiving unit URX-2: see
paragraph 4.1)
Selector
1/1+2/2 in a
Master/Master
The transmitting units UTX-M and UTX-S have a selector 1/1+2/2 to select the working position:
- position 1 (single mode): the transmitting unit works with the receiving unit URX-1
- position 1+2 (tandem mode): the transmitting unit works both with the receiving unit URX-1
and with the receiving unit URX-2
- position 2 (single mode): the transmitting unit works with the receiving unit URX-2
Selection of the desired position with the toggle switch is only possible after the transmitting
unit has engaged the receiving unit/s needed for working (see paragraph 5.1).
