8 Programming
- 27 -
LIMM&SA0-00.fm

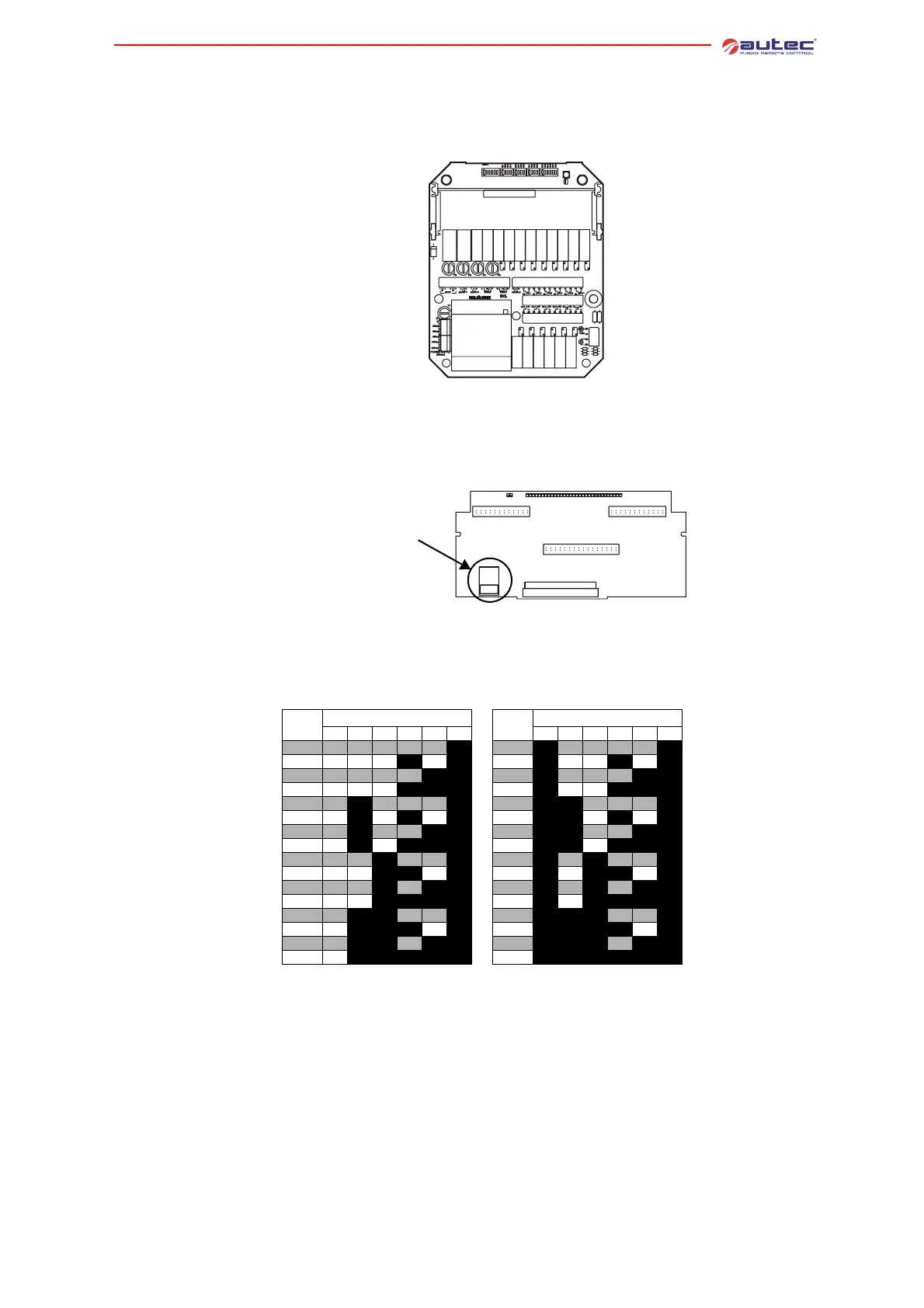

8.3 Programming the master board E16B14AC
Dip switch programming has to correspond to that given in the technical data sheet and must
not be modified.
8.4 Programming the bus board E16RI02_
Autec programs this bus board and programming is recorded in the data memory that configures
outputs of the receiving unit.
8.5 Frequency tables
Settable
frequencies
Data memory
E16STXUS1 and E16SRXUS1
MHz
DIP SWITCH
MHz
DIP SWITCH
345678 345678
902.150 OFF OFF OFF OFF OFF ON 915.350 ON OFF OFF OFF OFF ON
903.050 OFF OFF OFF ON OFF ON 916.250 ON OFF OFF ON OFF ON
903.850 OFF OFF OFF OFF ON ON 917.050 ON OFF OFF OFF ON ON
904.650 OFF OFF OFF ON ON ON 917.850 ON OFF OFF ON ON ON
905.525 OFF ON OFF OFF OFF ON 918.675 ON ON OFF OFF OFF ON
906.325 OFF ON OFF ON OFF ON 919.525 ON ON OFF ON OFF ON
907.175 OFF ON OFF OFF ON ON 920.375 ON ON OFF OFF ON ON
907.975 OFF ON OFF ON ON ON 921.175 ON ON OFF ON ON ON
908.850 OFF OFF ON OFF OFF ON 922.050 ON OFF ON OFF OFF ON
909.650 OFF OFF ON ON OFF ON 922.850 ON OFF ON ON OFF ON
910.450 OFF OFF ON OFF ON ON 923.650 ON OFF ON OFF ON ON
911.250 OFF OFF ON ON ON ON 924.450 ON OFF ON ON ON ON
912.125 OFF ON ON OFF OFF ON 925.325 ON ON ON OFF OFF ON
912.925 OFF ON ON ON OFF ON 926.175 ON ON ON ON OFF ON
913.775 OFF ON ON OFF ON ON 926.925 ON ON ON OFF ON ON
914.525 OFF ON ON ON ON ON 927.725 ON ON ON ON ON ON
