Page 8 (20)
If the optional analogue card AK-6 is used, pressing the down arrow
button will reveal the next six channels.
RPM indicator
To the left of the screen is the speed indicator bar, with the actual RPM
showing at the top of the bar. The overspeed setpoint is marked with a
double horizontal line.
Status fields
The bottom line of the screen is divided into three fields.
The leftmost field gives engine status such as “Cranking”,
“Running”, “Stopping”, etc.
The middle field gives signals such as “Start command”,
“Delayed stop”, etc.
The rightmost field gives info such as “Manual”, “Standby”, etc.
Alarm List
To access the Alarm List – press the alarm list button.
The Alarm List view gives a list of all connected sensors with alarm
limits and whether or not they are in the Alarm state.
In addition to the alarm-channels defined in the configuration tool, any
triggered built-in alarms will also appear in this list.

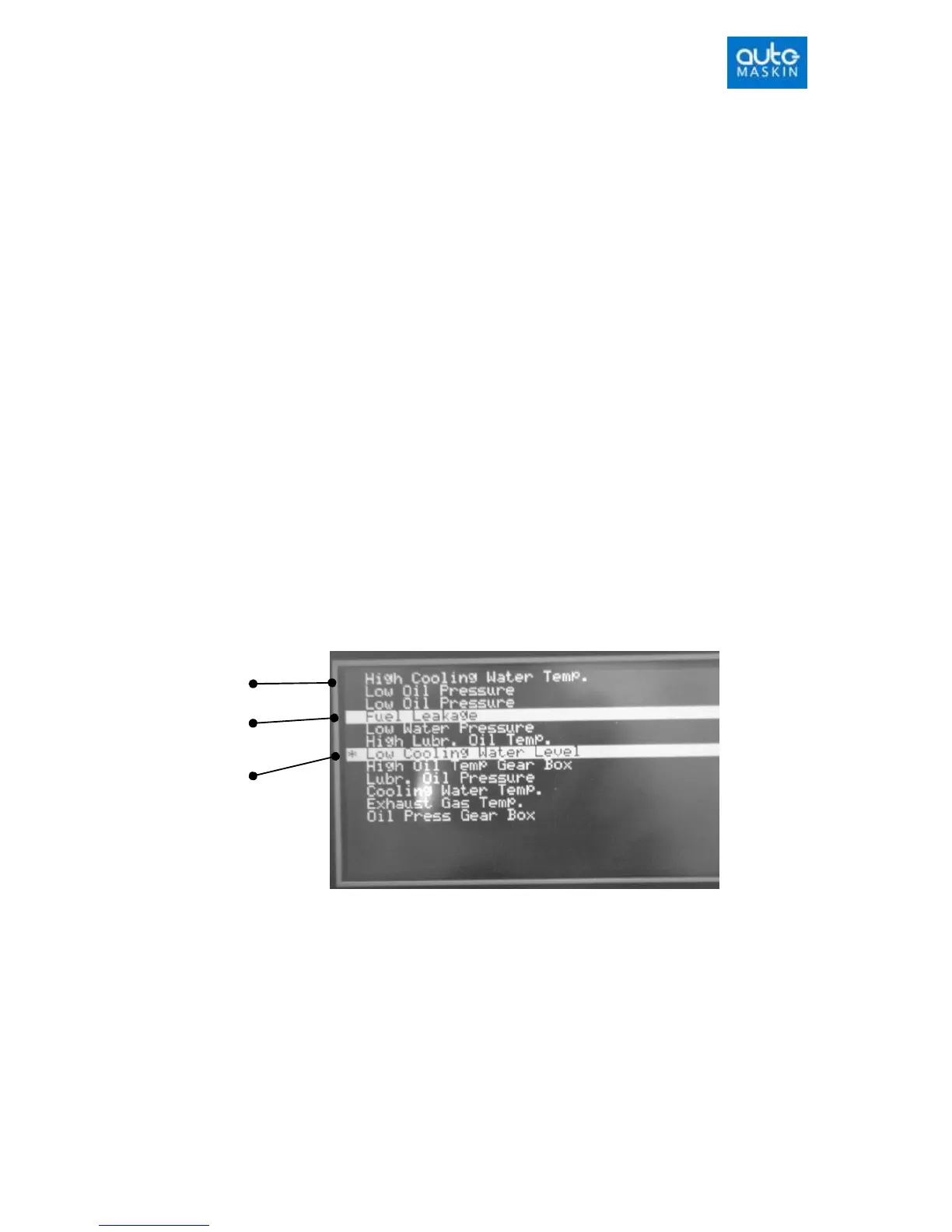

Alarm list
In the above sample picture, there are two alarms.
The alarm “Fuel leakage” is acknowledged. The alarm “Low cooling
water level” is not acknowledged.
In general:
An inverted line (black text on a white background) means
the alarm is activated.
Acknowledged
