14 © 2007 Directed Electronics—all rights reserved
This input comes from the factory set to 1 activation pulse. This means that it is necessary to have one 12V pulse
on the white/red wire for the remote start to activate or to deactivate. The same holds true for the remote control
activation when set to a one pulse setting it is necessary to press the button once for the remote start to acti-
vate or deactivate.
NOTE: When the activation pulse count can be programmed to 1, 2, or 3 pulses when changed it
will affect both activation inputs; the White/Red wire and the remote control activation.

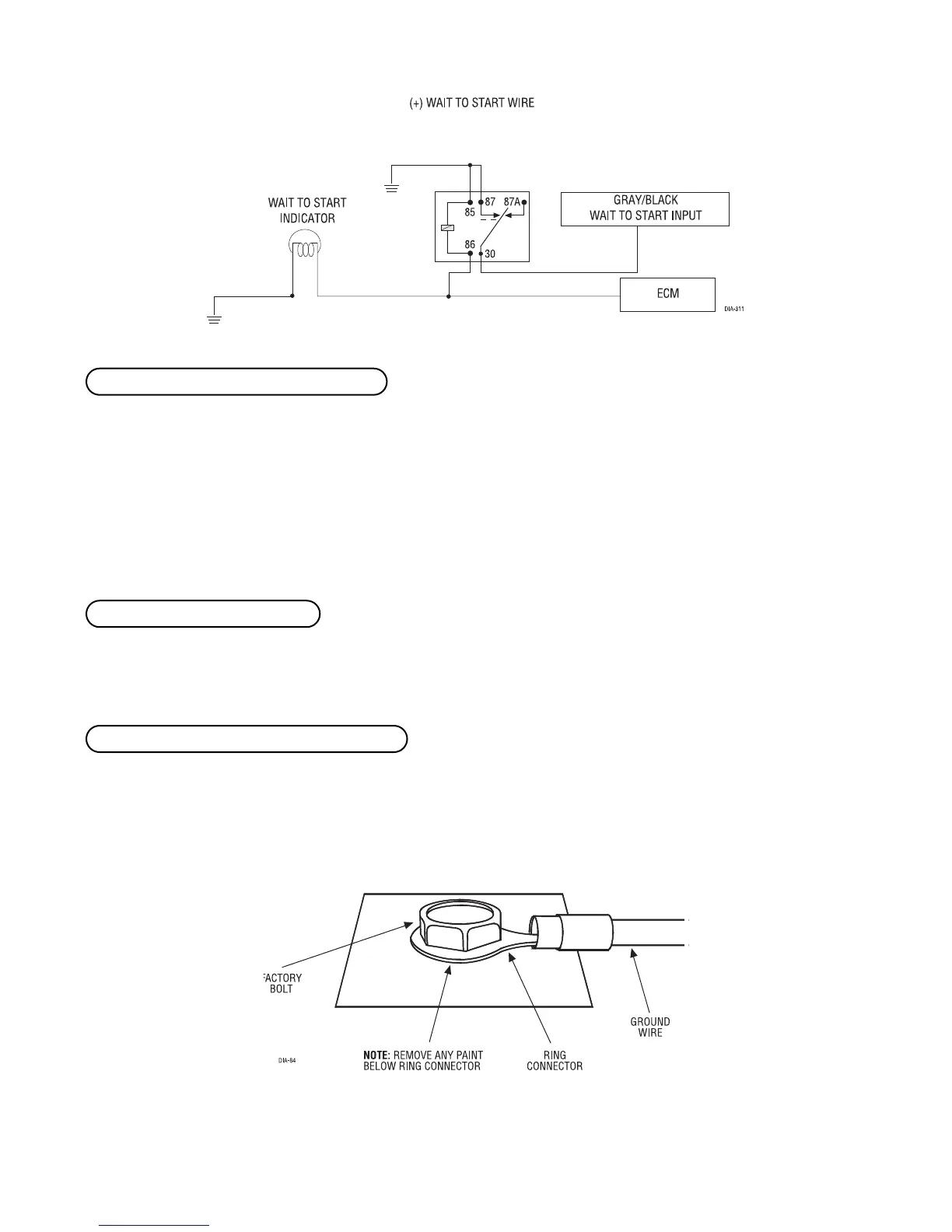

Remove any paint and connect this wire to bare metal, preferably with a factory bolt rather than your own screw.
(Screws tend to either strip or loosen with time.) We recommend grounding all your components to the same
point in the vehicle.
H1/8 BLACK (-) chassis ground connection
H1/7 RED/WHITE No Function
H1/6 WHITE/RED (+) activation input
