Auto Meter BCT-468 - Battery and Starter Test Execution

14
HEAVY DUTY PM TEST (cont.)

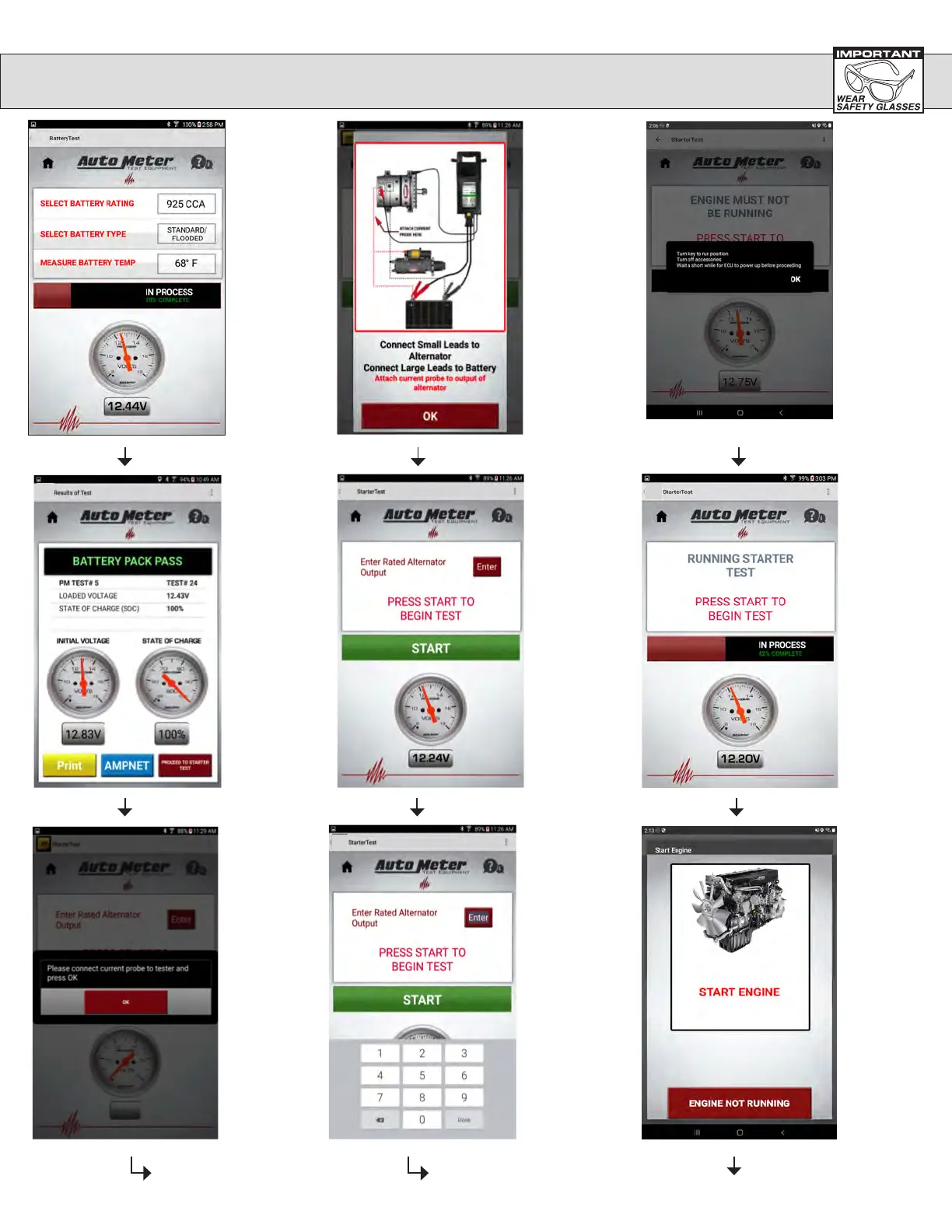

This screen
shows the proper
connections.
The Current
Probe will only
show if it was
chosen earlier.
This screen
only shows for
the Current
Probe option.
Touch Enter to
continue.
Enter the rated
output of the
alternator, then
touch Done.
Then touch
START.
Please
wait
a few
moments
until the
battery is
tested.
The battery
test results
are then
displayed.
Touch
PROCEED
TO STARTER
TEST icon.
Skip to
image 16 if
no Current
Probe
selected.
If the Current
Probe option
was chosen,
this screen
will appear.
Touch the
Ok icon.
This screen
will NOT
appear if
the Current
Probe was
not chosen
earlier.
Start the
Engine.
Follow the
on screen
prompts,
then touch
OK.
10
11
12
13
14
16
16
17
18
