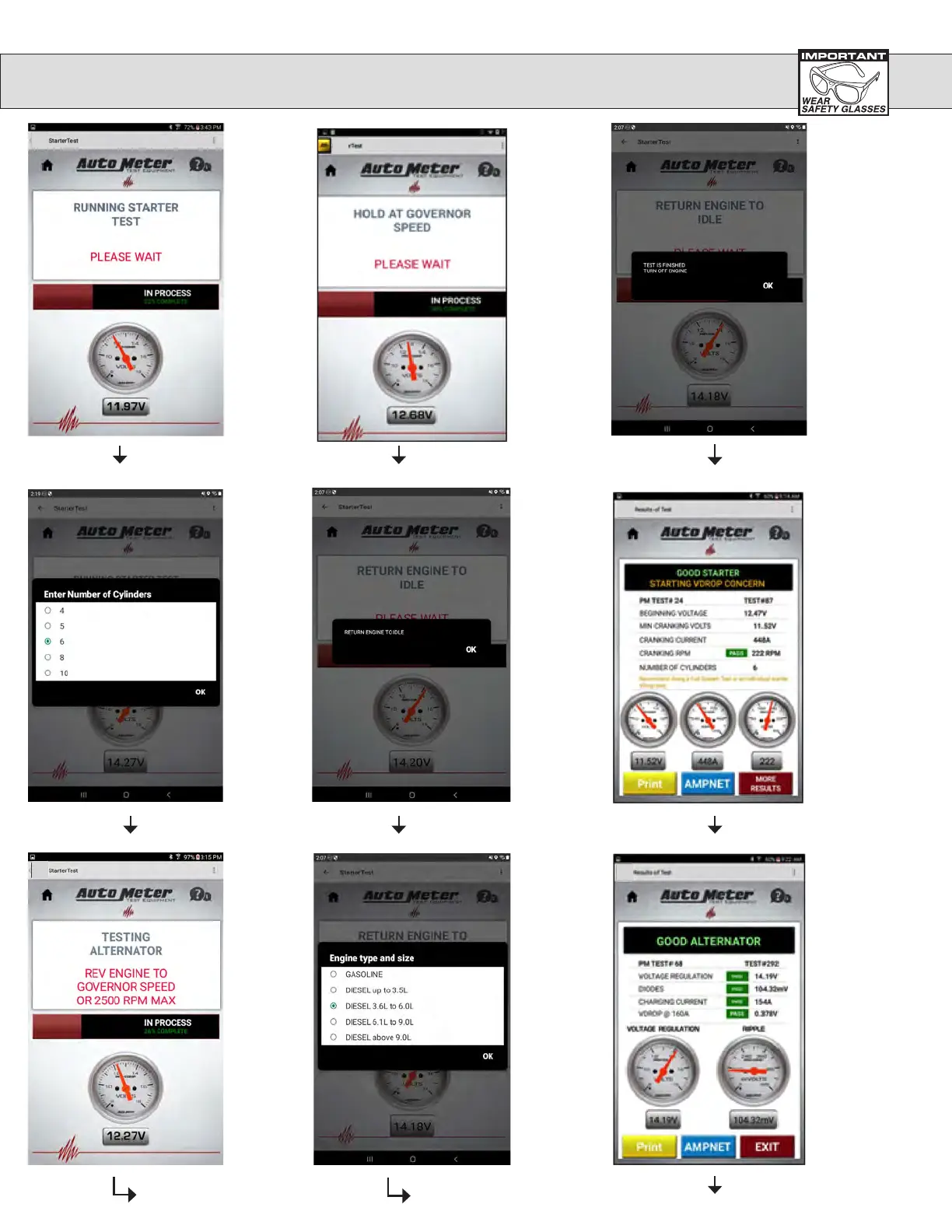

HEAVY DUTY PM TEST (cont.)
Return to Idle.
Touch OK.
Choose the
number of
cylinders then
touch OK.
If more
information is
needed, this
screen may
appear.
Choose engine
type, and
displacement,
if diesel then
touch OK.
Follow the
on screen
prompts.
The charging
system is
now being
tested.
Running
Starter Test.
Follow the
on screen
prompts.
Rev Engine
and hold
RPM.
The test is
nished. Turn off
the engine, and
touch OK.
Starting System
results.
Touch MORE
RESULTS to view
Alternator Results.
Charging results
(with current probe
used)
Also shows output
charging current
and Vdrop results.
