1818
--PM MENU--
PM TEST
BATTERY TEST
BATTERY BANK TEST
VDROP MENU
>ALTERNATOR TEST
STARTER DRAW TEST
REVIEW/REVIEW
--ALTERNATOR TEST--
>CONNECT THE LARGE
LEADS TO THE
BATTERY.
'Y' TO CONTINUE.
If the Amp Probe is attached to the tester you will be asked to ZERO the
probe and attach it to the Alternator output. The test will run without the
Amp Probe, but is considered to be slightly more accurate if the probe is
used. See page 19 for instructions regarding the Amp Probe.
INDIVIDUAL ALTERNATOR TEST
6
If the battery bank and the charging main cables pass then the Charging System
Test will take you to the individual Alternator Test.
This test can also be selected
from the main menu by selecting
Alternator Test then press (Y
Enter).

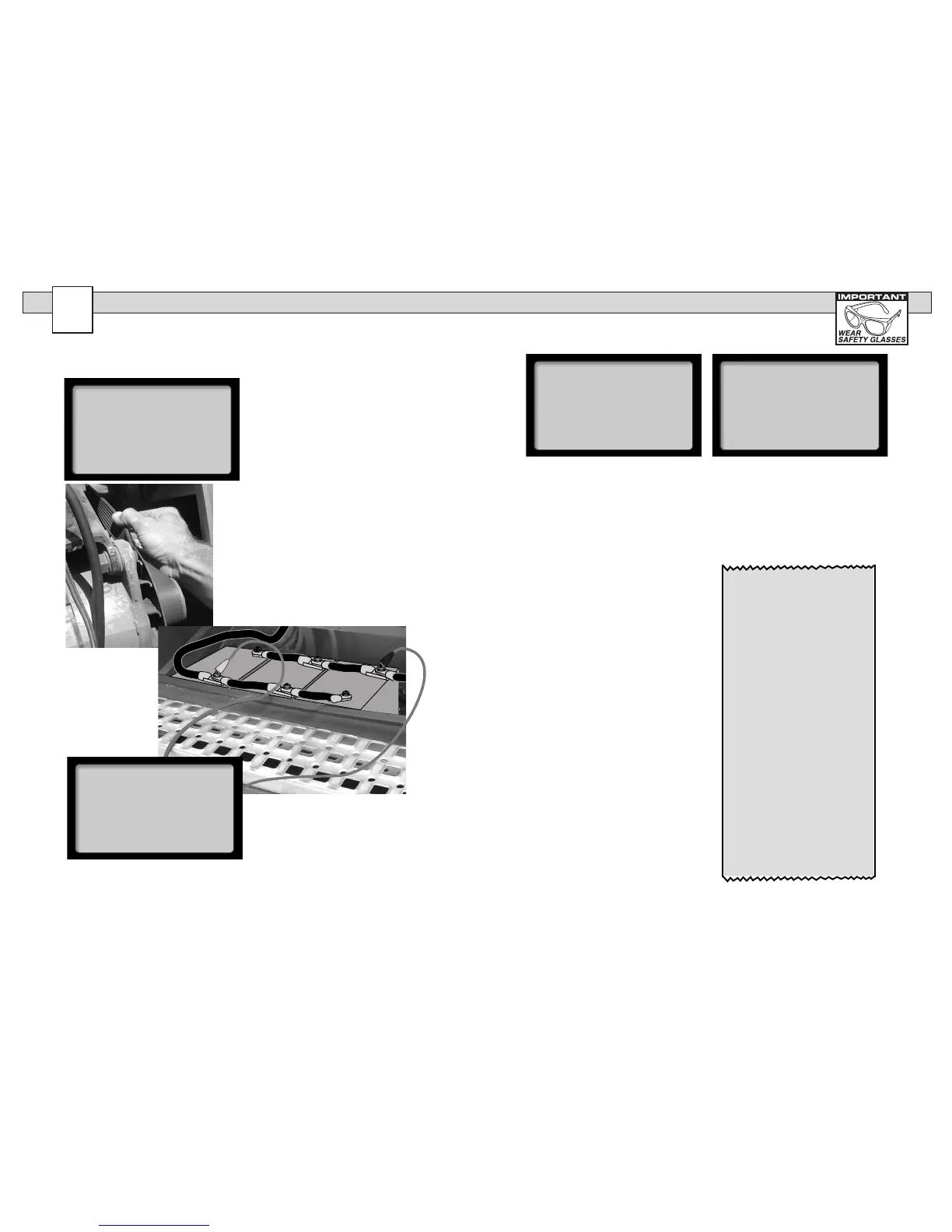

If the unit is setup to require visual
checks you will be asked to inspect
belt condition and tension. Also, if
this is an individual alternator test and
not part of the CHARGING SYSTEM
test you will be asked to enter the
alternator rating.
Press (+Up) or (-Down) key to increment or decrement to the desired test. The
last 150 tests are held in memory. The same tests can be downloaded to a PC.
See the Download section for more information. Press (N Esc.) to return to
menu.
REVIEW
From the main menu select REVIEW.
The last test will be displayed
exactly as it was displayed
after the test was made
--MAIN MENU--
PM TEST
BATTERY TEST
BATTERY BANK TEST
VDROP MENU
ALTERNATOR TEST
STARTER DRAW TEST
>REVIEW/PRINT
#27 CHARGE CABLES
07/05/12 05:58PM
PASSED AT: 120A
GOOD UP TO: 185A
POS DROP: 0.18V
NEG DROP: 0.16V
Auto Meter Products
BVA-2100
PROFESSIONAL TESTER
RK Automotive
819 Palisade Rd.
Anywhere USA
#099 -LOAD TEST-
07/03/12 10:23AM
PASSED! GOOD BATTERY
EXPECTED LIFE = LONG
EST. C.C.A. 620A.
RATED C.C.A. 625A.
12.60V. CHARGE 91%
LOADED VOLTS 10.16V.
SERIAL NUMBER:
X1234567890123
WARRANTY CODE
2BC0813280B012H12
Press PRINT and the optional printer
will print the test displated on the LCD.
Sample.
For battery, starter, and alternator tests a unique warranty code is
generated and printed at the bottom of the printout. This code is used for
data and warranty verication.
3131
