Auto Meter BVA-2100 User Manual

3838
STARTER DRAW TEST
REVIEW/PRINT
MULTIMETERS
J1708 DATA
HELP MENU
SETUP MENU
>DOWNLOAD
ABOUT BVA2100
--DOWNLOAD--
>CONNECT ANALYZER
TO A PC
9600, N, 8, 1.
'N' TO CANCEL
PC INTERFACE

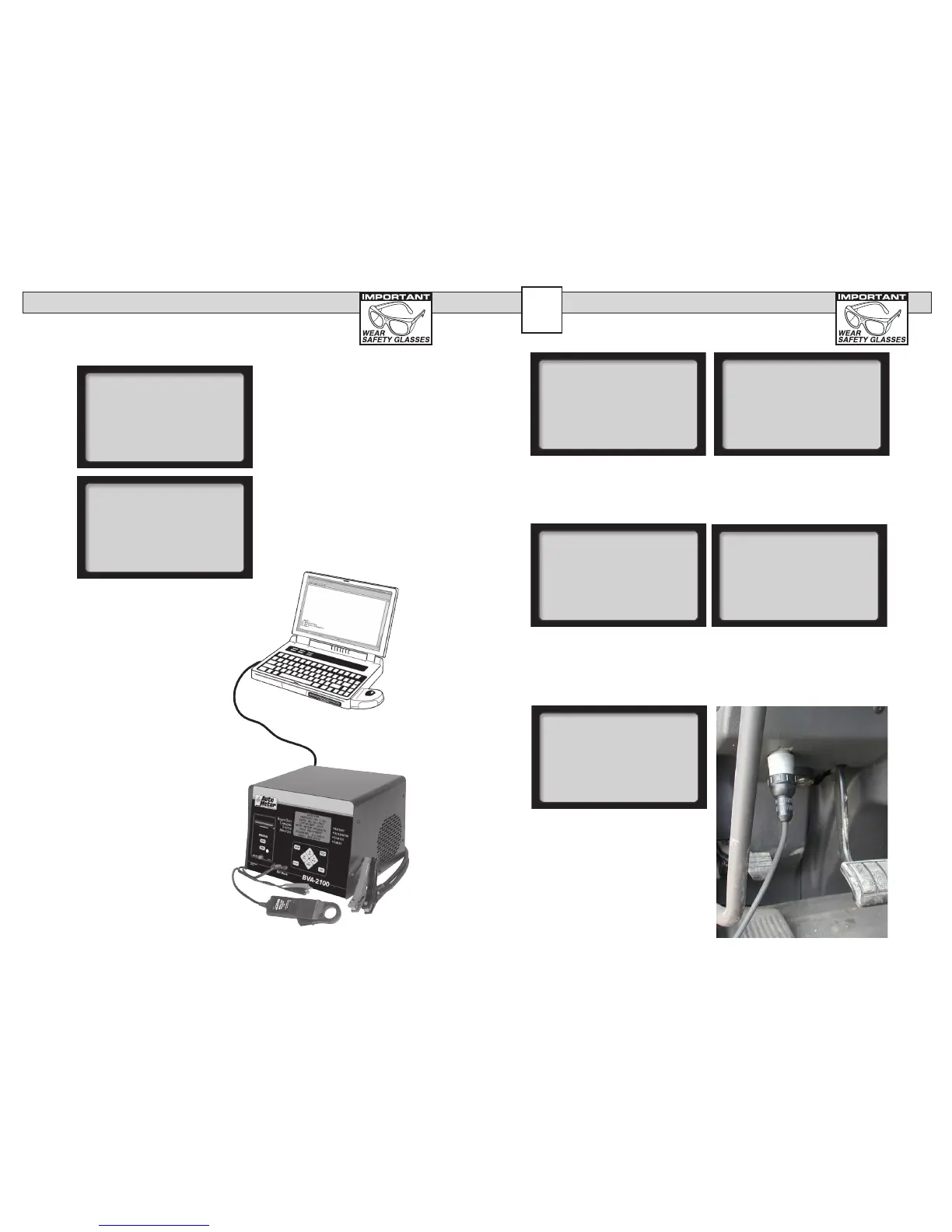

1. Scroll down the main menu to DOWNLOAD. Press
(Y Enter) to select.
Using Auto Meter’s optional
adapter cord AC-10 insert the
plug into the jack on the BVA-
2100 and then plug the serial
adapter into a free serial port on
your computer.
Note: Most computers are
congured with at least one serial
port (identied as COM 1), and
some have a second serial port,
usually identied as (COM 2).
Check your computer manual to
locate and identify a serial port
connector. Even if you have a
physical COM port you need to
make sure it is working properly
before you proceed. Consult your
computer manual. If your computer
serial port is congured for 25 pin
you will need to obtain an adapter
from your computer store. If
your computer does not have an
available serial port and you’re
planning on using Windows HYPER
Terminal as illustrated below, you
will need to buy and install an
adapter card with a serial port.
1111
BATTERY BANK TEST
2
You will be asked if the vehicle
has a J1708 data port. Answer
Yes or No. Except in this case all
tests will assume no. For more
information see page 33.
Attach the Optional J1708
Data Cable. If the cable is not
correctly attached the test
will not continue. Check the
connection at the tester and the
vehicle.
Turn on ignition key to run transfer
of data.
J1708 connection is usually
under the dash or
left of the drivers seat
on the oor.
--BATTERY BANK--
>ENTER NUMBER OF
BATTERIES: 2
'Y' TO CONTINUE
--MAIN MENU--
PM TEST
BATTERY BANK
>BATTERY BANK TEST
VDROP MENU
ALTERNATOR TEST
STARTED DRAW TEST
REVEIW/PRINT
--BATTERY BANK--
>DOES VEHICLE HAVE
J1708 DATA PORT?
'N' OR 'Y'
--BATTERY BANK--
>ATTACH J1708 DATA
CABLE.
'N' TO CANCEL
--BATTERY BANK--
>TURN IGNITION KEY
TO RUN.
'N' TO CANCEL
You will be asked to enter the number
of batteries in the system. The number
selected in the last test will appear.
Simply use the (+) or (-) key to select
the correct number. Then press ('Y'
Enter) to continue.
