2020
--ALTERNATOR TEST--
>ZERO AMP PROBE
12.86 V +0003 A
'Y' TO CONTINUE.
--ALTERNATOR TEST--
>ATTACH AMP PROBE TO
STARTER CABLE
12.86 V +0003 A
'Y' TO CONTINUE.
--MULTIMETER--
INT VOLTS: 12.78V
RIPPLE: 0.00Mv
EXT VOTS: 12.74V
POS DROP: 0.00V
NEG DROP: 0.00V
AMP PROBE: 1A
AC AMPS: 0.02A

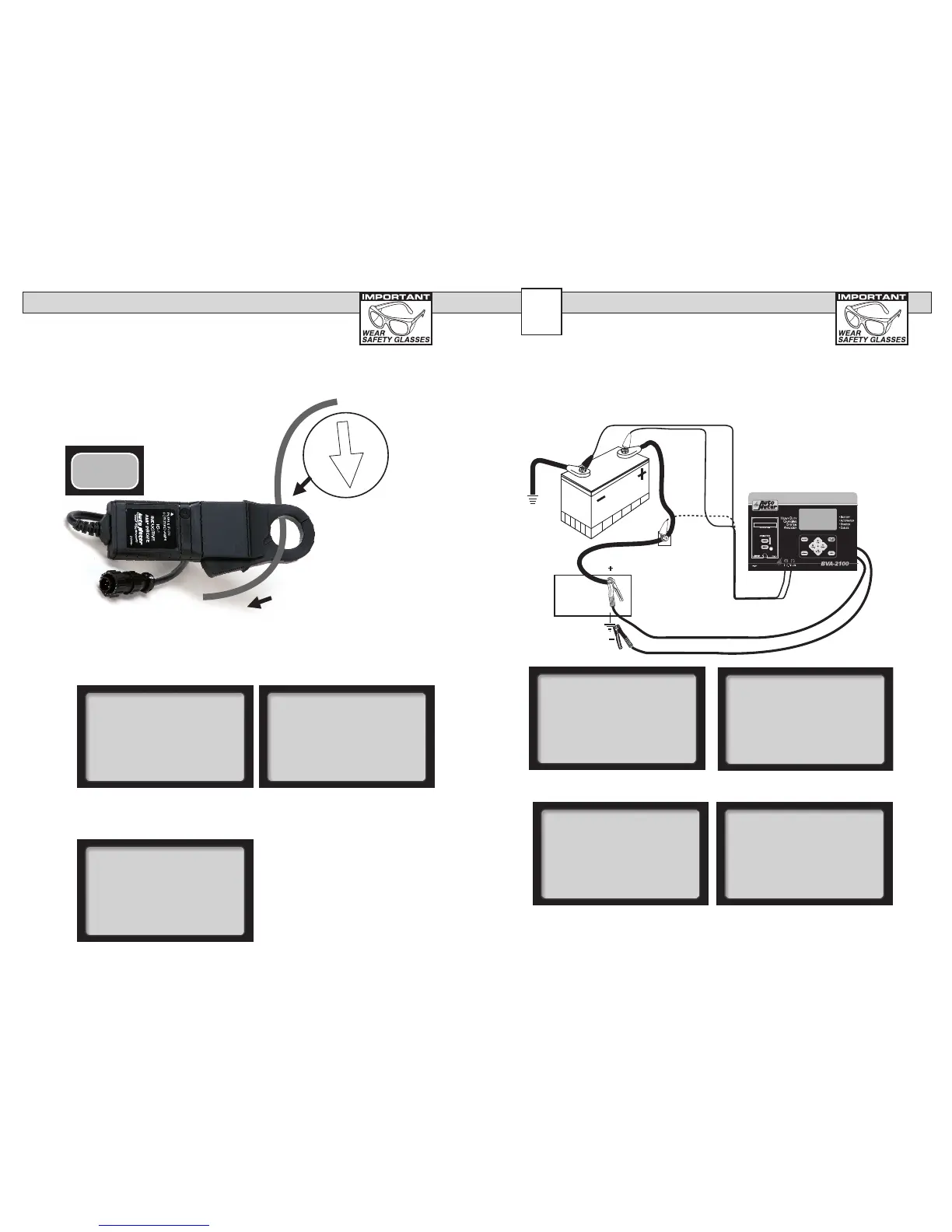

USING THE AMP PROBE
You will rst be asked to zero out
the Probe. Pressing the “Zero Amp
Probe” on the keypad. Instead of
+00003 A, it should read +00000 A.
You will then be asked to attach the
probe to a particular wire such as
alternator output or starter cable.
In the multimeters test the bottom
two lines will not appear if the Amp
Probe is not connected. In other test
results there may be slightly different
displays.
Zero Amp
Probe
Arrow located
on edge of Probe
Use the button on the key
pad to zero the Amp Probe
Direction of Current
in the Alternator and Starter Draw tests you will have two additional
menu options if the AMP Probe is attached on the rear of the tester. If the
menus do not appear the Amp Probe is not attached properly.
The following are examples of use within a test sequence.
The Amp Probe is optional and can be used in the
Alternator and the Starter Draw Test whether they are
individual tests or within each of the system tests. The Amp Probe can
also be used in the Multimeters test. This section explainsthe proper
use of the Amp Probe, but is not required to run any of the tests. It only
provides assured accuracy for those wanting these results.
BVA2100
VERSION PM 7.02
DATE 05/16/2013
COPYRIGHT 1999
AUTO METER PRODUCTS
TEST EQUIPMENT
SYCAMORE, ILLINOIS
(866) 883-8378
Generic
Load
--VDROP MENU--
CHARGING CABLES
STARTER MAIN CABLES
MAG. CIRCUIT
LIFTGATE CHARGE
LIFTGATE MOTOR
LIFTGATE TRUCK CIR.
>GENERIC VDROP
--MAIN MENU--
PM TEST
BATTERY TEST
BATTERY BANK TEST
>VDROP MENU
ALTERNATOR TEST
STARTER DRAW TEST
REVIEW/PRINT
--GENERIC VDROP--
>ENTER RATED
CURRENT: 100A
'Y' TO CONTINUE.
--GENERIC VDROP--
>CONNECT THE LARGE
LEADS TO THE
SYSTEM.
'Y' TO CONTINUE.
11
LIFTEGATE & GENERIC VDROP
Generic System Setup
The various liftgate circuit
voltage drop tests and the
generic voltage drop test
can be used to test the
liftgate charging and motor
circuits as well as any
other circuit that includes a
battery and cables and is
designed to operate a load
of 20 amps or more.
…select >GENERIC V DROP and
press (Y Enter).
Select VDROP MENU and press
(Y Enter).
Using the (+/-) key adjust Amp
rating to that of the generic load
device.
Connect large leads to the
generic load.
2929
