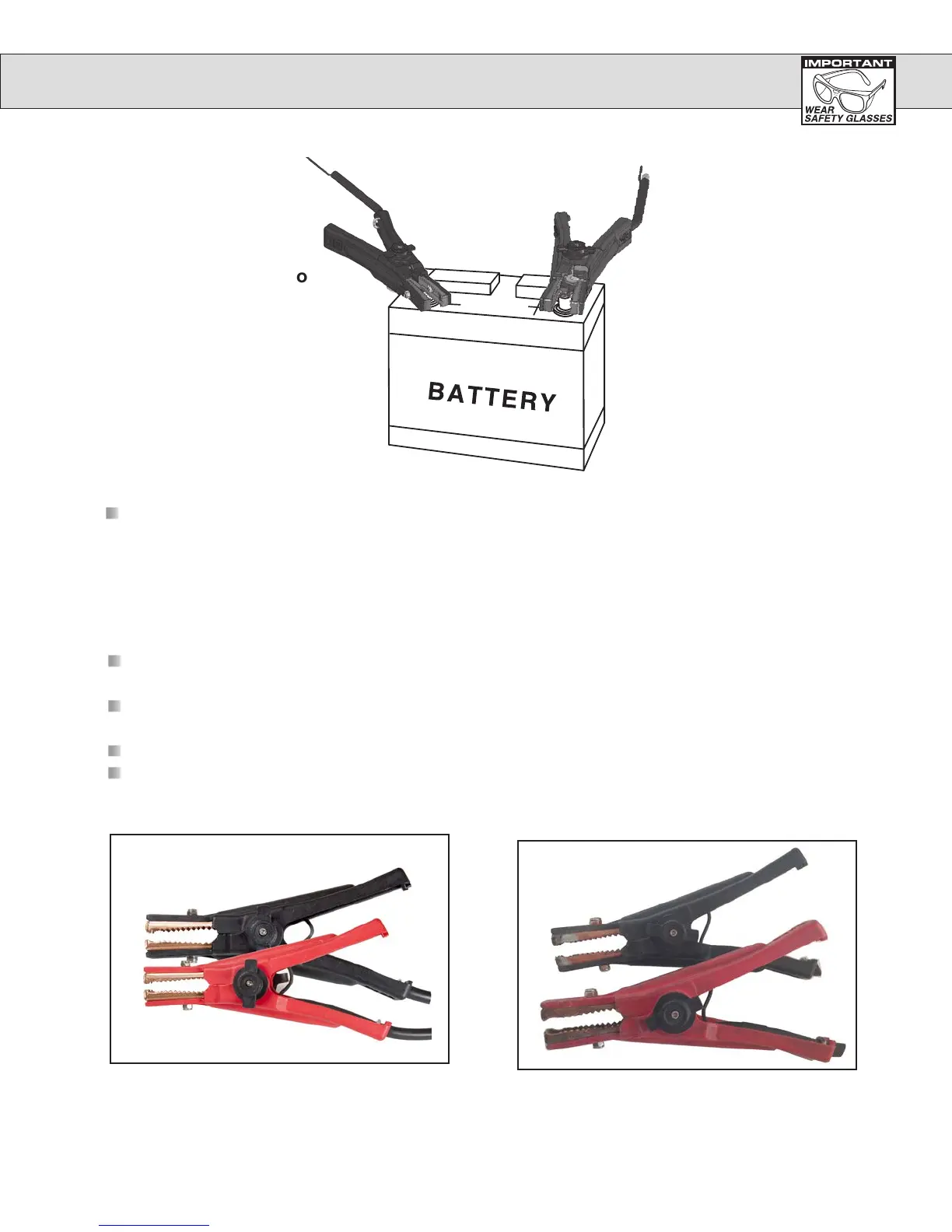

HOOK UP
CONNECTION ERRORS
If the clamps are reversed the Reversed Connection warning will be displayed on the
Control Module with an audible beeping.
If one or both of the clamps are not in complete contact (both of each clamp jaws) A
"Check Connections" screen will appear on the control module.
Clean battery terminals with a wire brush if battery terminals are corroded or dirty.
Clean clamp jaws with 1 part ammonia and 10 parts water if clamp jaws are corroded or
dirty. (Do not use battery cleaner to clean clamps)
Connect Black Clamp to
Negative (-) Terminal
Connect Red Clamp to
Positive (+) Terminal
Use the side terminal feature on the clamp to connect battery side
terminals. When testing dual post batteries always check the post to
which the system is attached.
Clean Clamps Corroded Clamps
