AUTOHELM ST4000+ Service Manual

ST4000+ Autopilots
10 ST4000+ Autopilots Service Manual 83115-1
2.3 Disassembly/assembly
D3726-1
1 274
365
8
9
1. Cover
2. Seal
3. Pivot retaining screw (x2)
4. Bracket
5. Pivot sub-assembly
6. Fluxgate sub-assembly
7. Body
8. Body screw (x4)
9. Cable

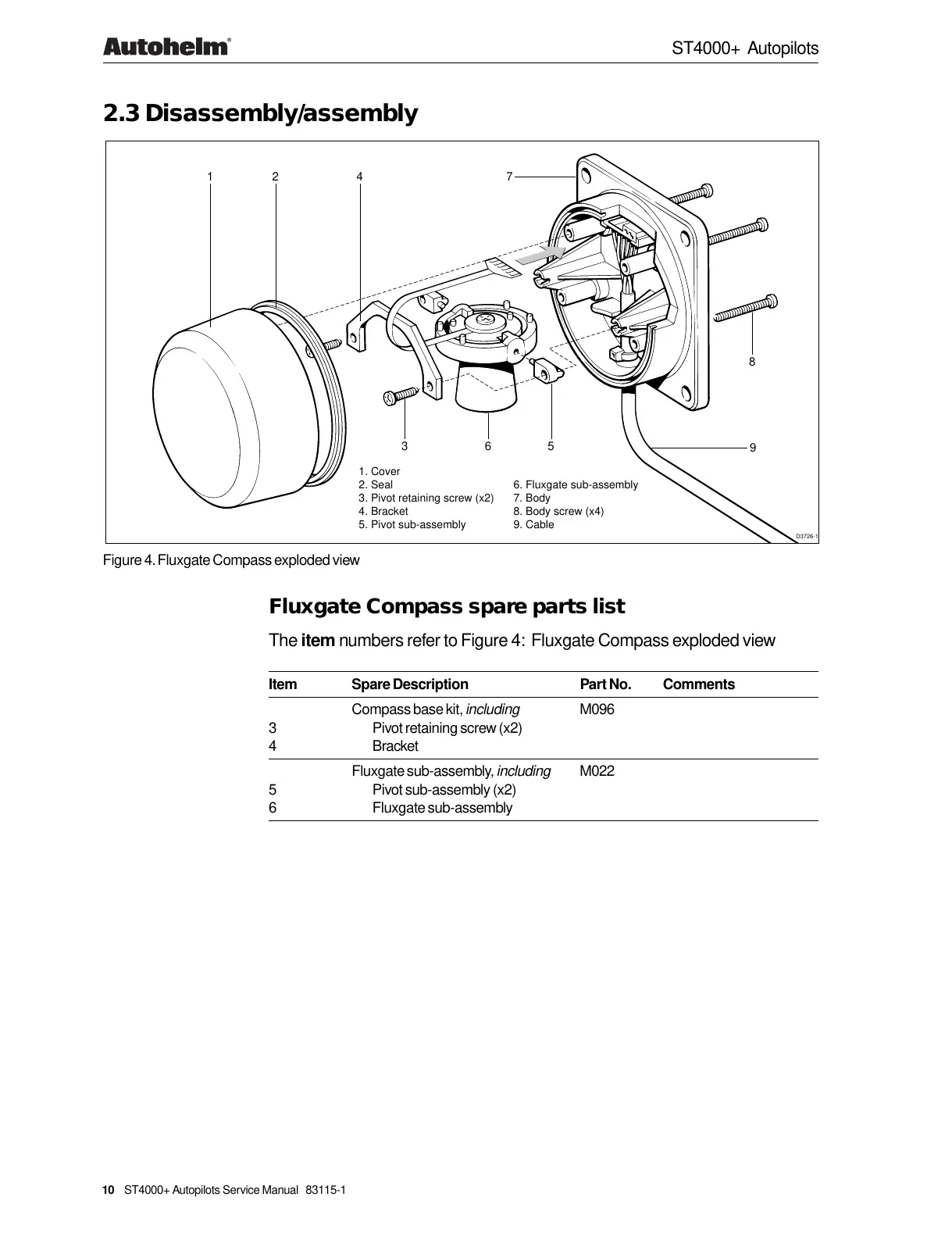

Figure 4. Fluxgate Compass exploded view
Fluxgate Compass spare parts list
The item numbers refer to Figure 4: Fluxgate Compass exploded view
Item Spare Description Part No. Comments
Compass base kit, including M096
3 Pivot retaining screw (x2)
4 Bracket
Fluxgate sub-assembly, including M022
5 Pivot sub-assembly (x2)
6 Fluxgate sub-assembly
All manuals and user guides at all-guides.com

AUTOHELM ST4000+ Specifications

General

Type	Autopilot
Drive Type	Wheel Drive
Control Unit	ST4000+ Control Head
Power Supply	12 V DC
Interface	SeaTalk
Display Type	LCD
Control	Push-button
Voltage	12 V
Compass	Fluxgate Compass
Course Accuracy	±1°
Compass Safe Distance	1 meter
