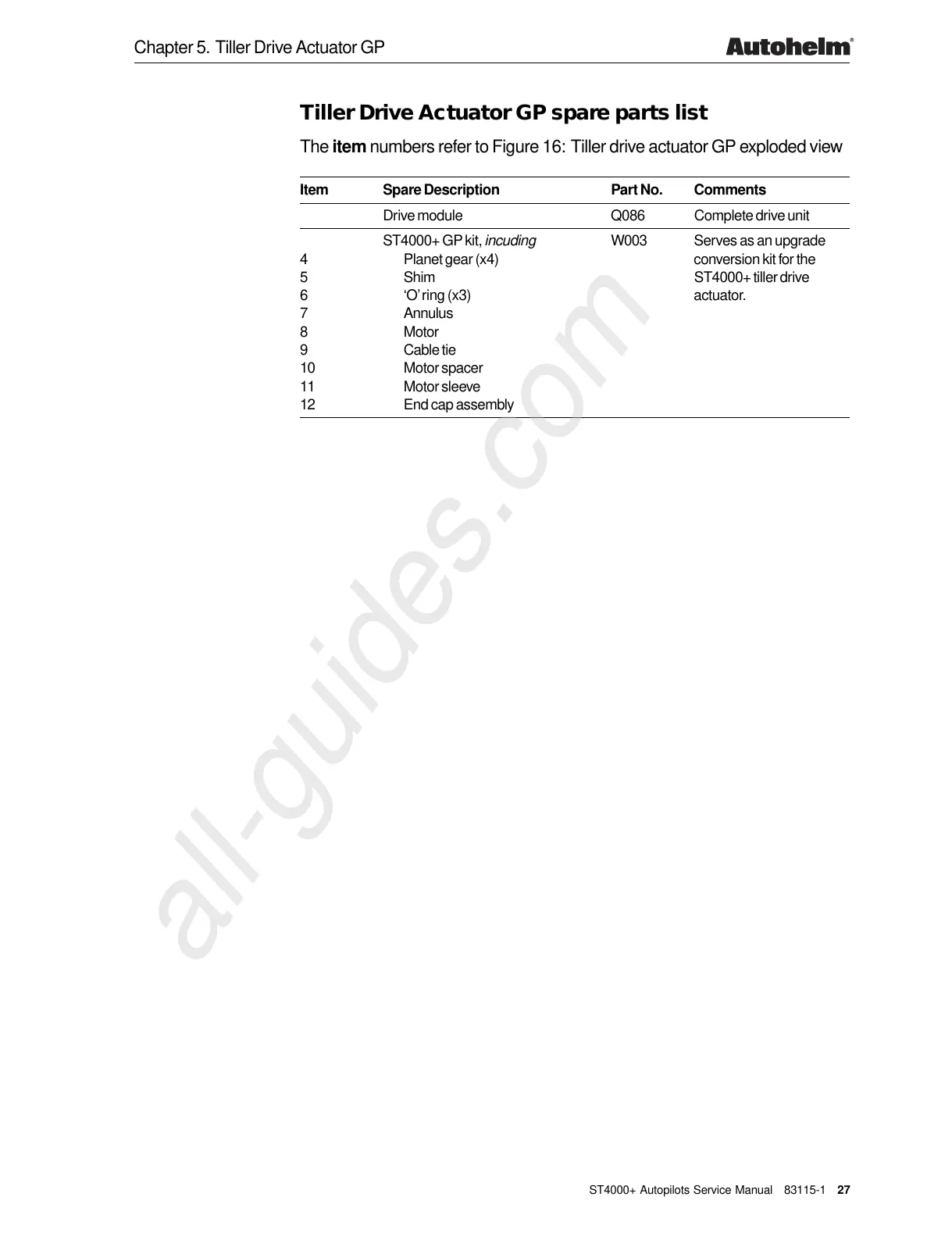

Chapter 5. Tiller Drive Actuator GP
ST4000+ Autopilots Service Manual 83115-1 27
Tiller Drive Actuator GP spare parts list
The item numbers refer to Figure 16: Tiller drive actuator GP exploded view
Item Spare Description Part No. Comments
Drive module Q086 Complete drive unit
ST4000+ GP kit,
incuding
W003 Serves as an upgrade
4 Planet gear (x4) conversion kit for the
5 Shim ST4000+ tiller drive
6 ‘O’ ring (x3) actuator.
7 Annulus
8 Motor
9 Cable tie
10 Motor spacer
11 Motor sleeve
12 End cap assembly
