ST50 PLUS RADAR Operation and Installation Handbook
5) The selected location should be far enough away from devices
that may cause interference, such as motors and generators.
6)
Generally speaking, the display should be located in a protected
area away from prolonged direct exposure to rain and salt spray.
It is good practice to protect your valuable electronic equipment
as much as possible.
The Display Unit can be conveniently mounted on a chart table,
bulkhead, overhead or console mounted in a desired locatin. (Refer to
Figure 2-2 for typical mounting methods).
Bulkhead Mounted
Overhead
Mounted
Table Top
Mounted

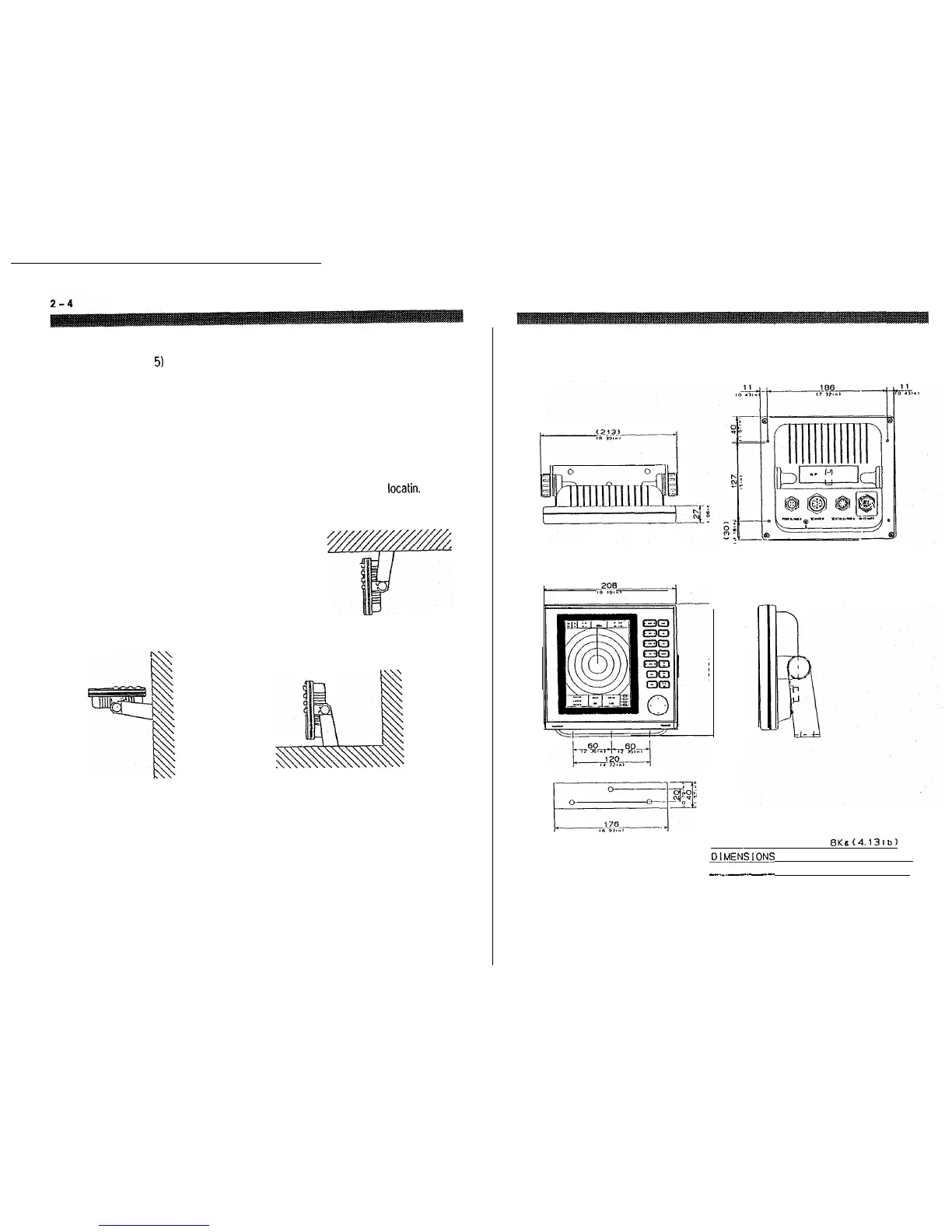

Fig. 2-2 Typical Mounting Methods
Section 2. Installation
2-5
DISPLAY WEIGHT: 1.
8Ke
(4.
131b)
_DIMENSiONS
SHOWN IN MILLIMETERS
AN0 INCHES
-_.__._-.
Fig. 2-3 Display Mounting Dimensions
