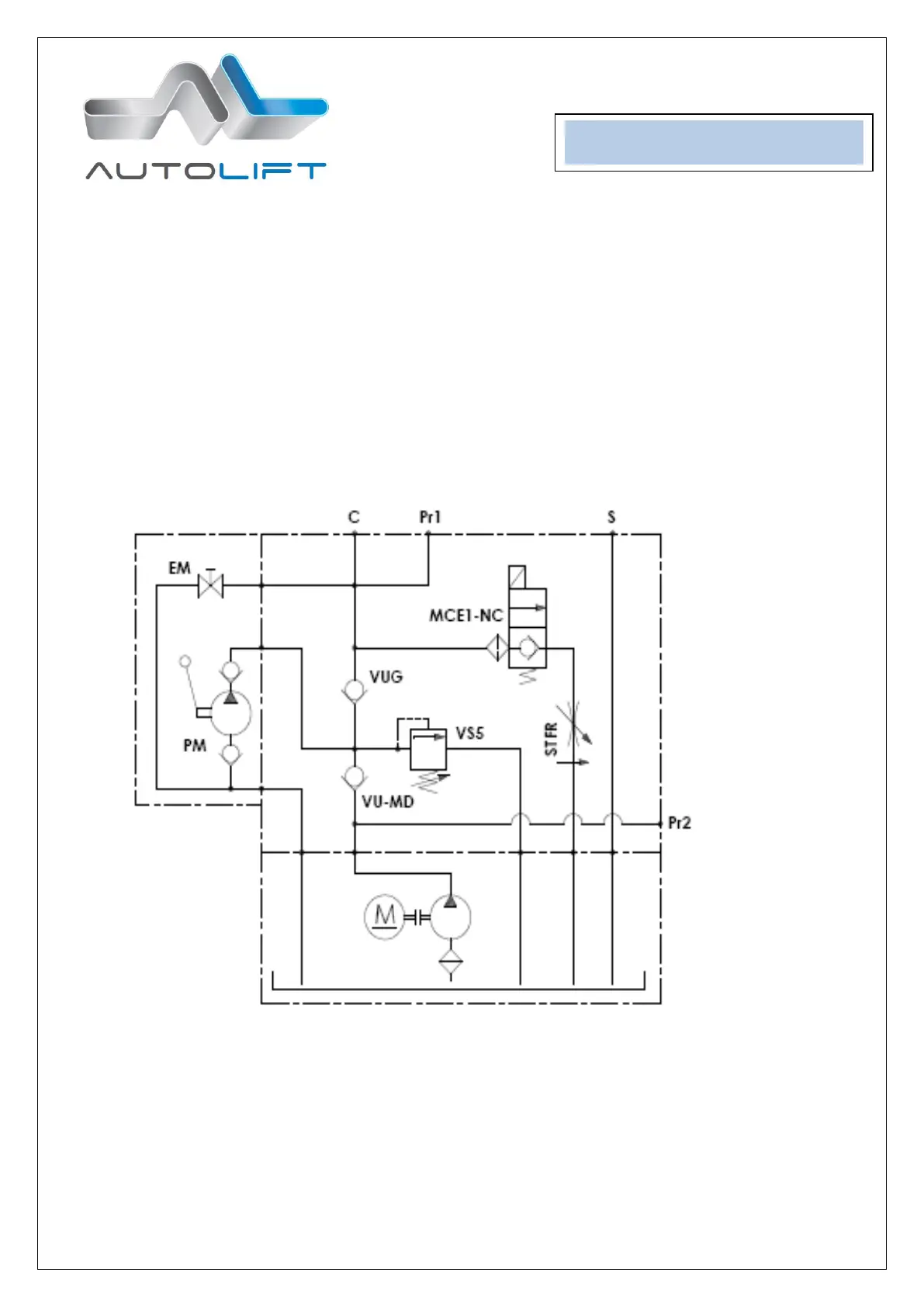

9 -HYDRAULIC DIAGRAM
The hydraulic unit is built in a protection box and can be placed inside the vehicle in preferred position. The
emergency pump and emergency lowering valve are accessible with out removing the box cover and this
allows the user an easier use of the lift also in case of emergency and battery failure.
Lift “F900”
