AUTOLIFT F900 - Electric Diagram

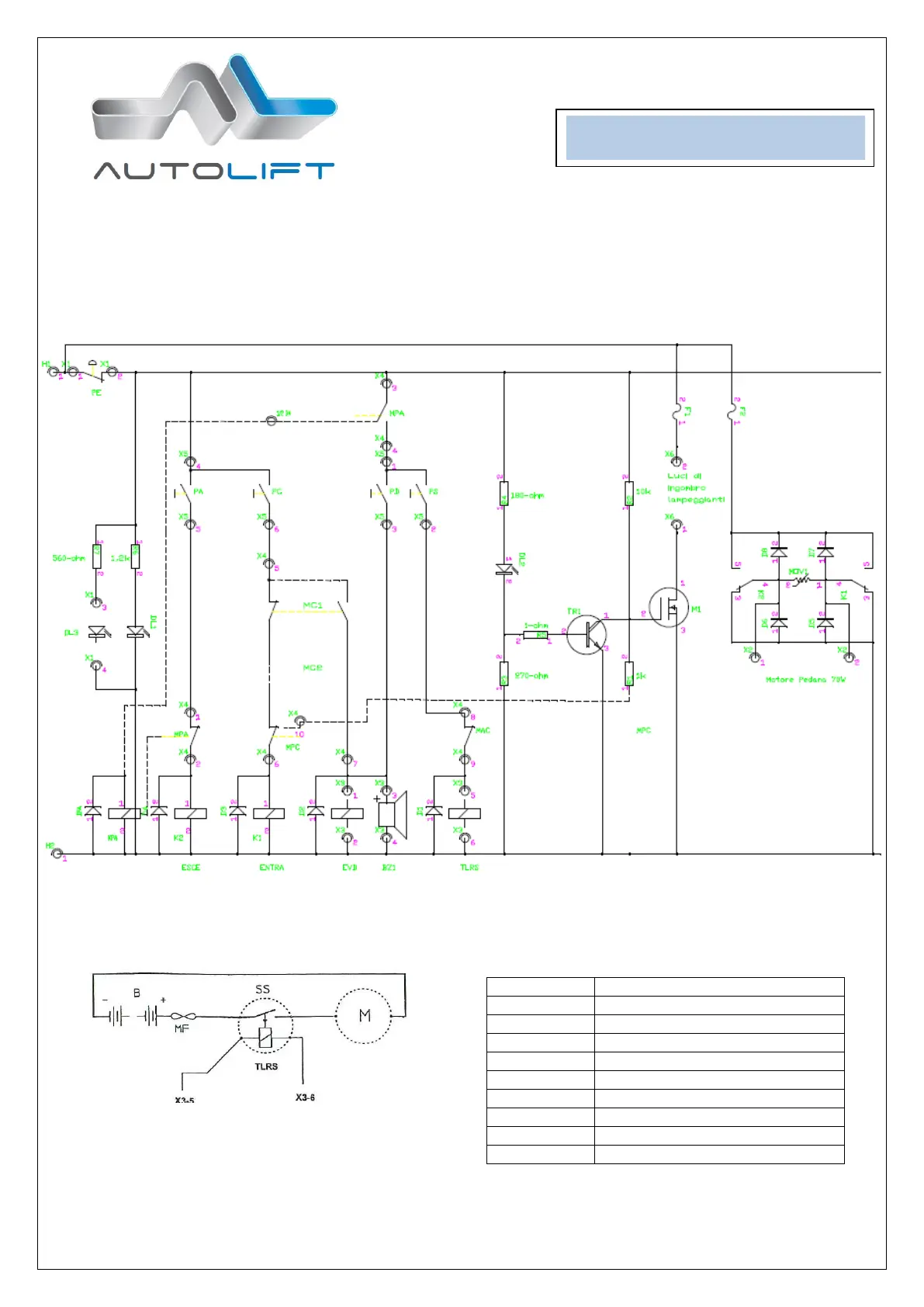

10 – ELECTRIC DIAGRAM
Control Unit (Printed circuit)
Power Unit
POSITION
CORRESPONDANCE
X2
Platform El. Motor
X6
Flashing lights
TLRS
Starting Relais
BZ1
Acustic Warning
EVB
Lowering valve
Entra
Platform in
Esce
Platform out
MC1
Microswitch for Platform Height
MC2
Microswitch for Platform Height
Lift “F900”
