Input pulse frequency 40 pulses per second. Minimum pulse width (on or off time) required for
each pulse is 12.5 msec.
Outputs
FIO012u
FIO48u
FIO812u
FIO88u
No outputs
4 outputs
8 outputs
8 outputs
Outputs can be set as analog or binary outputs.
Analog outputs can be used for 0-10 Vdc or 0-20 mA devices.
Binary outputs have a built-in relay and can be used to switch external
devices or relays up to 1A, 30 Vac/Vdc.
Output resolution 12 bit D/A
Microprocessor 32-bit microprocessor with 256 kB Flash memory and 64 kB SRAM
Protection The FIO expander has two fast acting, 5mm x 20mm glass fuses:
• A 2A fuse for the FIO expander’s power
• A 4A fuse for the I/O bus edge connector
The power and network ports comply with the EMC requirements
EN50491-5-2.
Status indicators LEDs indicate status of communications, system state (running or errors),
outputs, and power
Environmental operating
range
-40 to 158°F (-40 to 70°C), 10-95% relative humidity, non-condensing
• The FIO expander is suitable for installation inside or outside the
building envelope.
• Install in a UL Listed enclosure only.
•
Do not change the position of the power or
switch at
temperatures below -22°F (-30C) to ensure proper operation and
Physical Fire-retardant plastic ABS, UL94-5VA
Terminal blocks and
connectors
Screw-type terminal blocks.
0.2 in (5.08 mm) pitch connectors

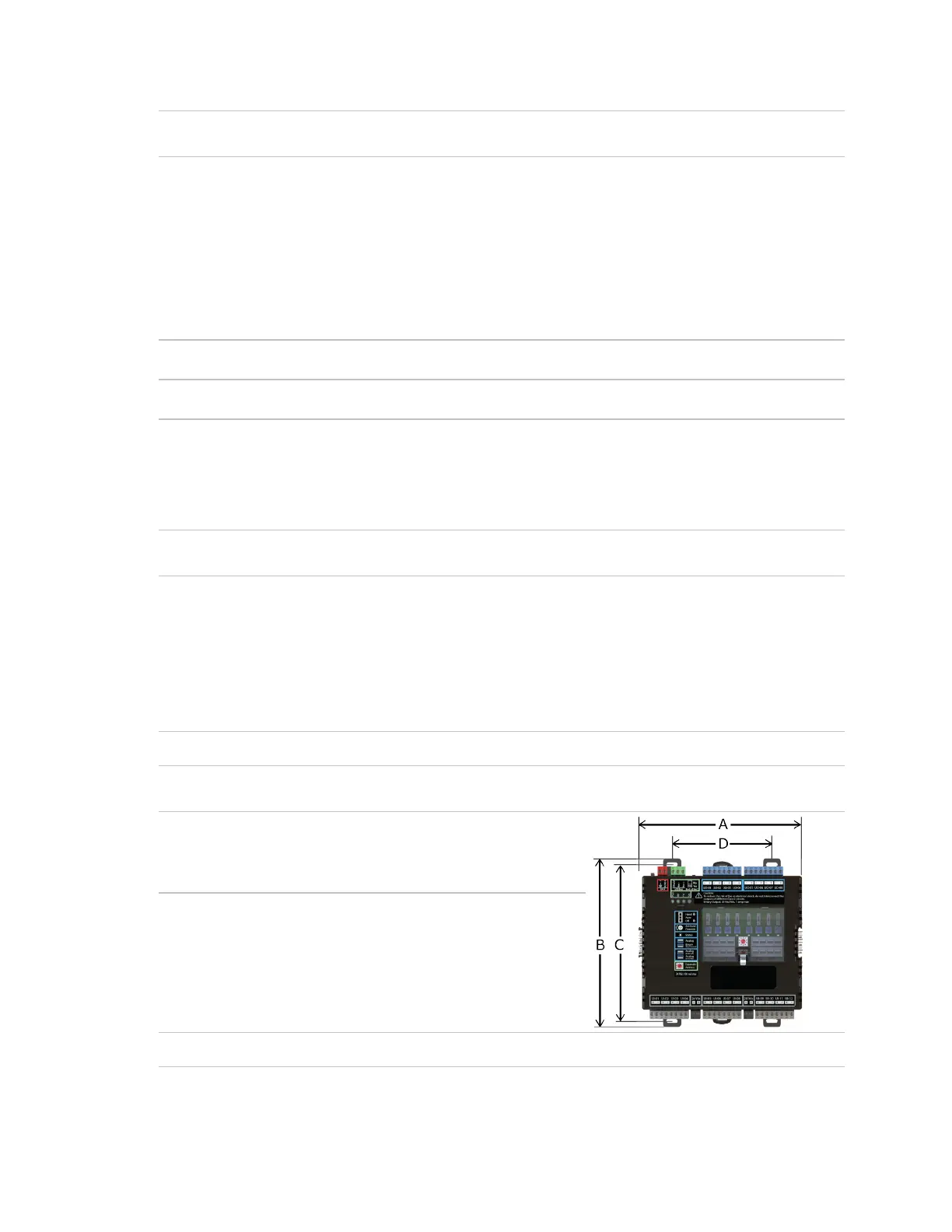

Overall dimensions A:
B:
Depth:
6.9 in. (17.53 cm)
6.95 in. (17.65 cm)
2.09 in. (5.31 cm)
Screw mounting
dimensions
C:
D:
6.45 in (16.38 cm)
4.1 in. (10.4 cm)
Weight 1.1 lb. (0.49 kg)
