Owner Installation Instructions GDO-11v1 SecuraLift
®
13
C-Rail Attachment
11
fi g
12
fi g
Locate shaft into sprocket
Shaft
Mushroom Head Screw Taptite ‘S’ M4 x 8
Track bracket (x2)

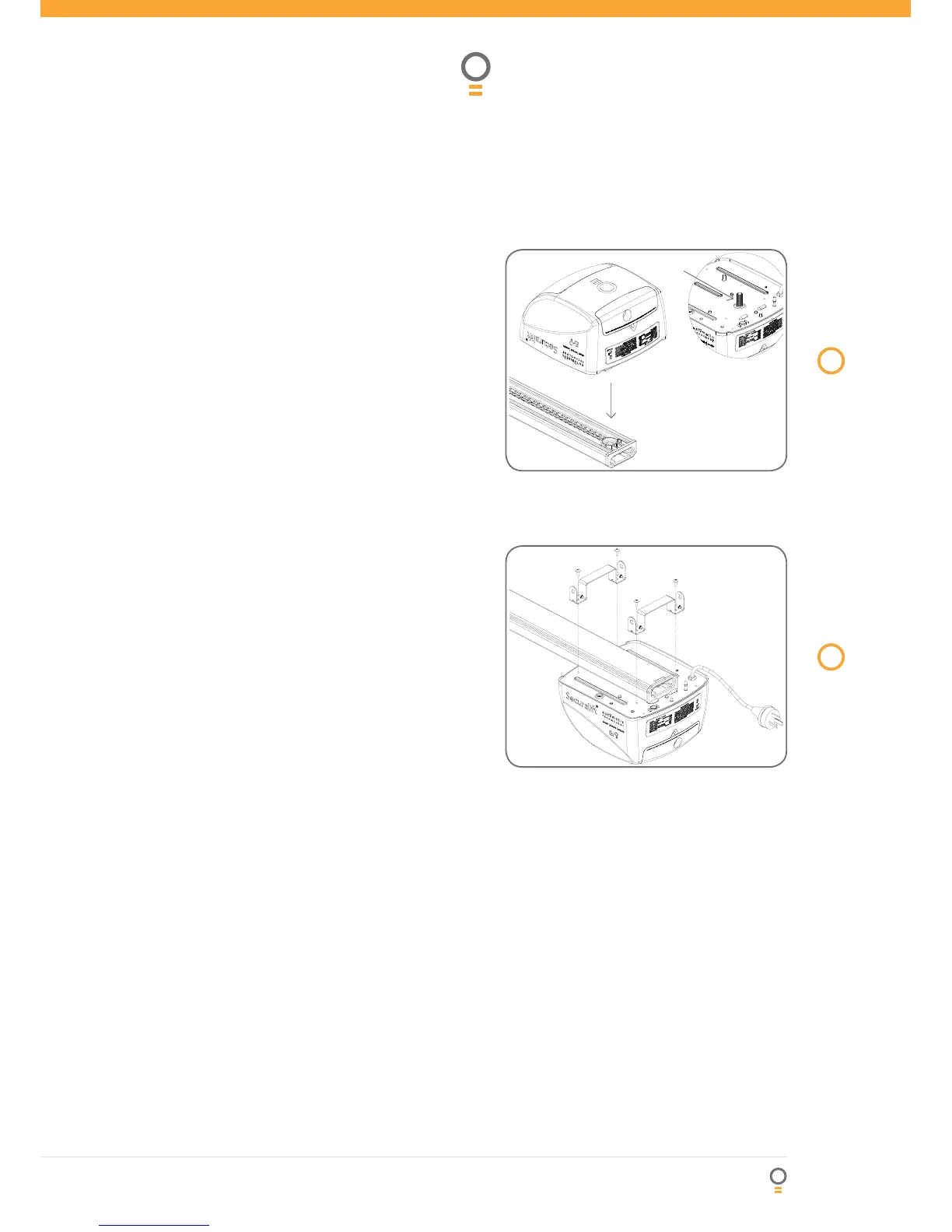

Step 2 - Secure C-Rail to Drive Unit
Locate and insert the shaft of drive unit into the C-
Rail’s sprocket (Fig. 11).
Fix the two track brackets with four screws supplied
in accessory pack (Fig. 12).
a.
b.
