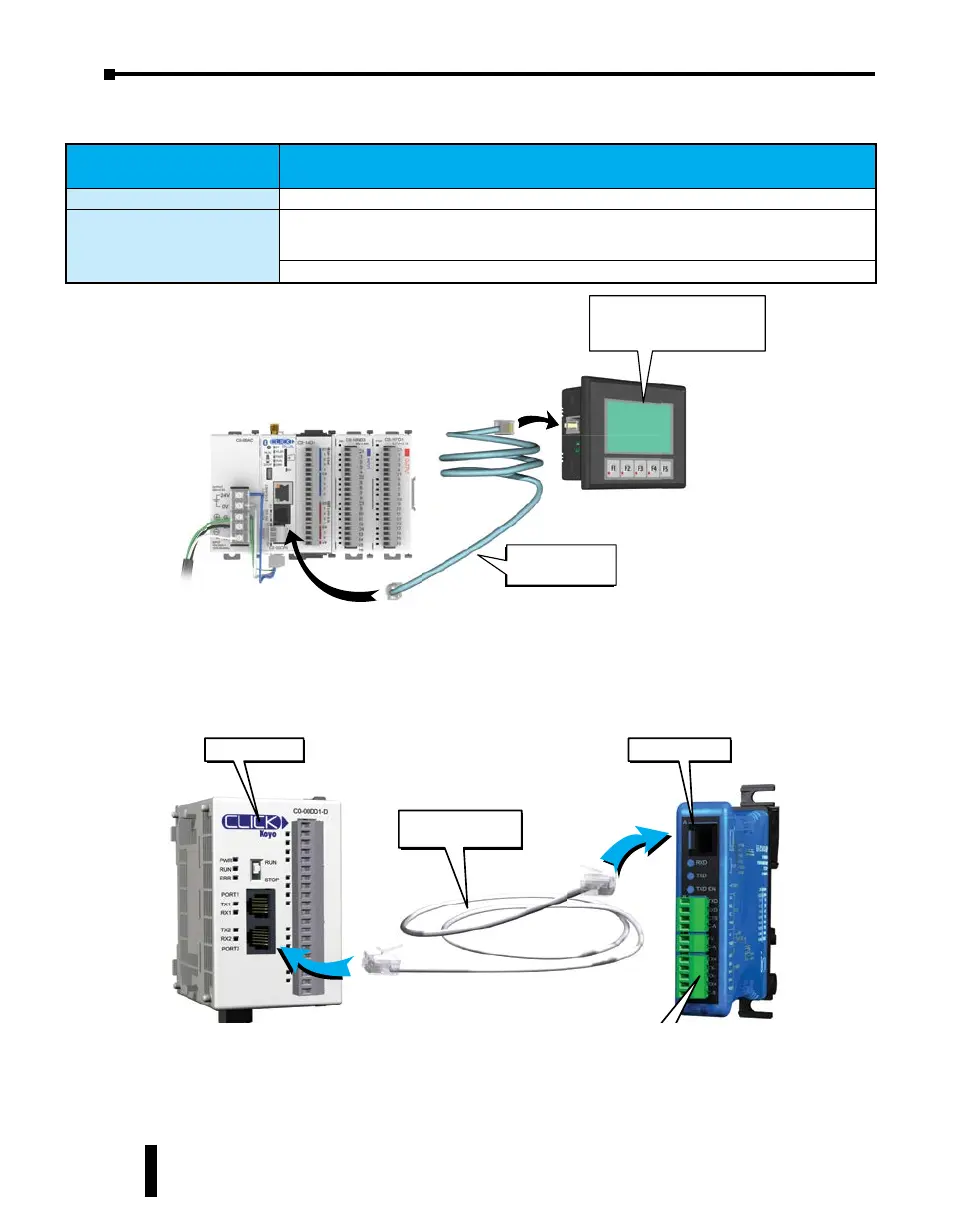

Case 3: Connect Com Port 2 to a C-more or C-more Micro-Graphic panel
Please use the following cables to make your connections.
Case 4: Connect Com Port 2 to an RS-422 or RS485 port on another device(s).
You need a RS-232 to RS-422/485 converter in this case. We recommend our FA-ISOCON
as the converter.
The recommended cables to connect the FA-ISOCON to other devices:
• Belden 8103 for the RS-422
• Belden 9842 for 2-wire RS-485
• Belden 9843 for 4-wire RS-485
C-more Graphic Panel Cable Part Number
C-more Touch panels
EA-2CBL (3m) or OP-2CBL (2m)
C-more Micro-Graphic
Panels
DV-1000CBL if the panel receives 5VDC power from the CLICK PLC com port. (Monochrome
panels only; color panels must be powered from a separate 24VDC power source. Please refer
to the note on page 4-6 for details.)
EA-2CBL (3m) or OP-2CBL (2m) if the panel receives 24VDC power from other source.
Port 1
Port 2
DV-1000CBL
serial cable
C-more Micro-Graphic
Panel (Monochrome
models only)
CLICK PLC
FA-ISOCON
Cable included
with FA-ISOCON
Connect to RS-422/RS-485
ports on other devices
CLICK PLUS PLC Hardware User Manual, 1st Edition, Rev. B – C2-USER-M
4-14
Chapter 4: PLC Communications
