Digital Counter / Timer / Tach User Manual, 1st Ed.
1-800-633-0405
2-6

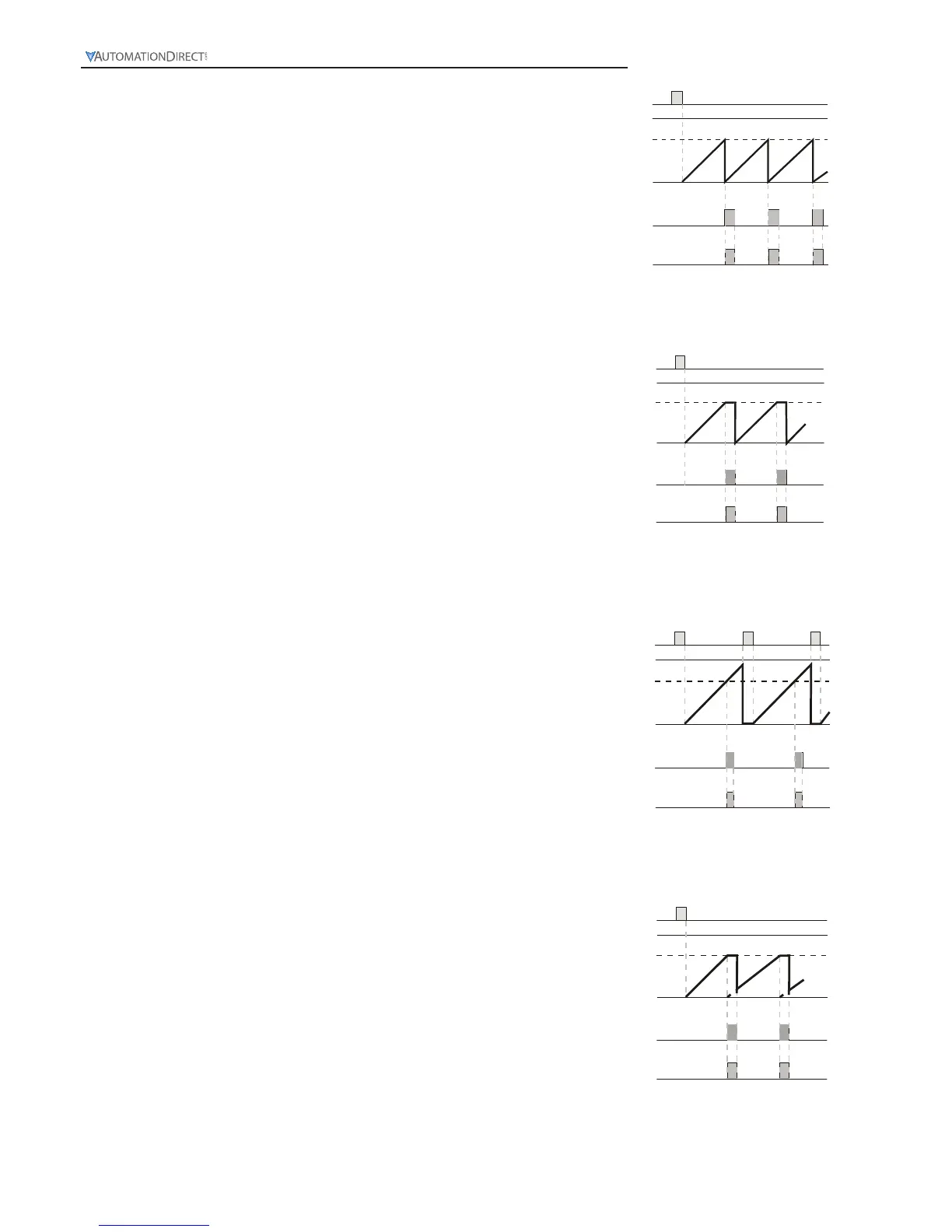

Mode C (
C
)
When the count present value PV counts up to the count setting
value SV, both outputs 1 and 2 will turn ON momentarily for the
time set in the output pulse width parameter (
tout2
) and the
count PV will reset automatically to 0.
The leading edge of a “reset” input signal at RST1 will turn both
outputs OFF, reset the count PV to 0 and prohibit an input signal
from incrementing the count PV. The trailing edge of the “reset”
signal at RST1 enables counting to begin.
The “reset” signal minimum pulse width is set by reset pulse width
parameter (
rtSr
) or DIP Switch 8.
Mode R (
r
)
When the count present value PV counts up to the count setting
value SV, both outputs 1 and 2 will turn ON momentarily for the
time set in the output pulse width parameter (
tout2
).
The count PV is prohibited from incrementing until the end of the
output pulse time (
tout2
) when the outputs turn OFF and the
count PV is reset automatically to 0. The leading edge of a “reset”
input signal at RST1 will turn OFF both outputs, reset the count
PV to 0 and prohibit an input signal from incrementing the count
PV.
The trailing edge of the “reset” signal at RST1 enables counting to
begin. The “reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
) or DIP Switch 8.
Mode K (
k
)
When the count present value PV counts up to the count setting
value SV, both outputs 1 and 2 will turn ON momentarily for the
time set in the output pulse width parameter (
tout2
). The count
PV will continue to increment with each input signal.
The leading edge of a “reset” input signal at RST1 will turn OFF
both outputs, reset the count PV to 0 and prohibit an input signal
from incrementing the count PV. The trailing edge of the “reset”
signal at RST1 enables counting to begin.
The “reset” signal minimum pulse width is set by reset pulse width
parameter (
rtSr
) or DIP Switch 8.
Mode P (
P
)
When the count present value PV counts up to the count setting
value SV, both outputs 1 and 2 will turn ON momentarily for the
time set in the output pulse width parameter (
tout2
). The count
PV display is prohibited from incrementing until the end of the
output pulse time, when both outputs turn OFF and the count
PV is reset automatically to 0 and any input signals that occurred
during the output pulse time.
The leading edge of a “reset” input signal at RST1 will turn OFF
both outputs, reset the count PV to 0 and prohibit an input signal
from incrementing the count PV.
The trailing edge of the “reset” signal at RST1 enables counting to
begin. The “reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
) or DIP Switch 8.
