Automation Direct CTT-1C-A120 User Manual

Digital Counter / Timer / Tach User Manual, 1st Ed.
2-5
www.automationdirect.com

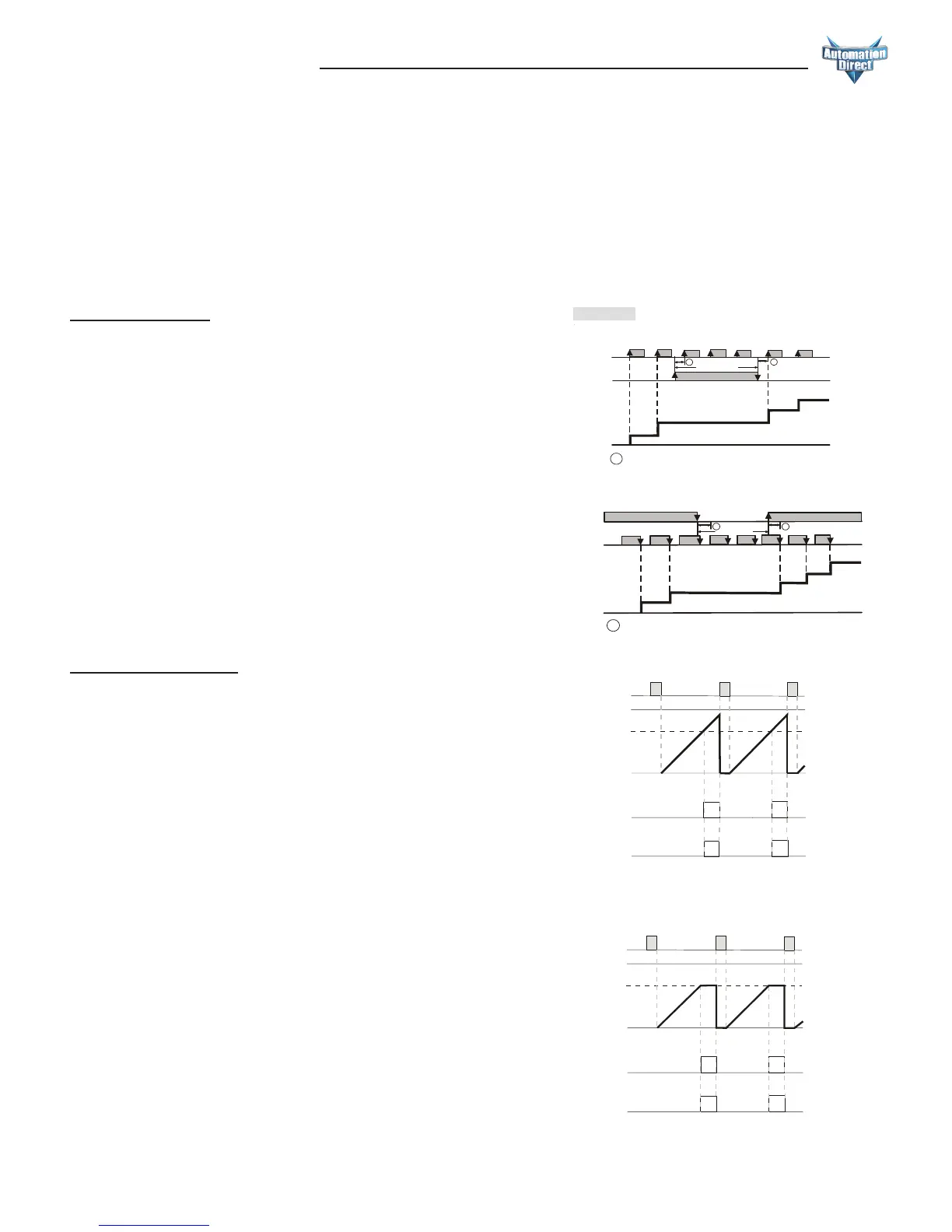

1-Stage Counting (
StA6E 1
)
A single count setting value SV is available in 1-Stage Counting. Both Outputs 1 and 2 operate concurrently and
will turn ON momentarily for the time set in the output pulse width parameter (
tout2
) or will be maintained ON
depending on the Output Mode selected.
CTT Counter Functions
1-Stage Counting (StA6E 1)
Counting Up (UP)
Counting Up (
UP
)
With the input signal OFF at input CP2, each leading edge of the
input signal at CP1 will increment the count present value PV by 1.
Turning ON the input signal at CP2, will prohibit the input signal
at CP1 from incrementing the PV.
Input Mode:
Mode F (
F
)
When the count present value PV counts up to the count setting
value SV, both outputs 1 and 2 will turn ON. The count PV
will continue to increment with each input signal.
The leading edge of a “reset” input signal at RST1 will turn
OFF both outputs, reset the count PV to 0, and prohibit an
input signal from incrementing the count PV. The trailing edge
of the “reset” signal at RST1 enables counting to begin.
The “reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
) or DIP Switch 8.
Output Modes:
Mode N (
n
)
When the count present value PV counts up to the count
setting value SV, both outputs 1 and 2 will turn ON. The count
PV will remain at the count SV regardless of additional input
signals.
The leading edge of a “reset” input signal at RST1 will turn
OFF both outputs, reset the count PV to 0, and prohibit an
input signal from incrementing the count PV. The trailing edge
of the “reset” signal at RST1 enables counting to begin.
The “reset” signal minimum pulse width is set by reset pulse
width parameter (
rtSr
) or DIP Switch 8.
Prohibit
A
A
0
1
2
3
4
5
H
L
H
L
0
CP
1
CP
2
Present
Value
CP1: Counter input prohibited CP2: Counter input
Note: has to be larger than width of min. Input signal
A
Counting up
Prohibit
A
A
0
1
2
3
4
H
L
H
L
0
CP1
CP2
Present
Value
CP1: Counter input CP2: Counter input prohibited
Note: has to be larger than width of min. Input signal
A
With the input signal ON at input CP1, each trailing edge of the
input signal at CP2 will increment the count present value PV by 1.
Turning OFF the input signal at CP1, will prohibit the input signal
at CP2 from incrementing the PV.
999999
RESET
SV
OUT2
OUT1
PV
Stage 1
Input Mode UP
Output Mode F
0
RESET
999999
SV
PV
OUT2
OUT1
Stage 1
Input Mode UP
Output Mode N
0
