SE3-USER-M
12
1st Edition, Dec. 2023
SE3 Series Industrial Unmanaged Ethernet Switches User Manual

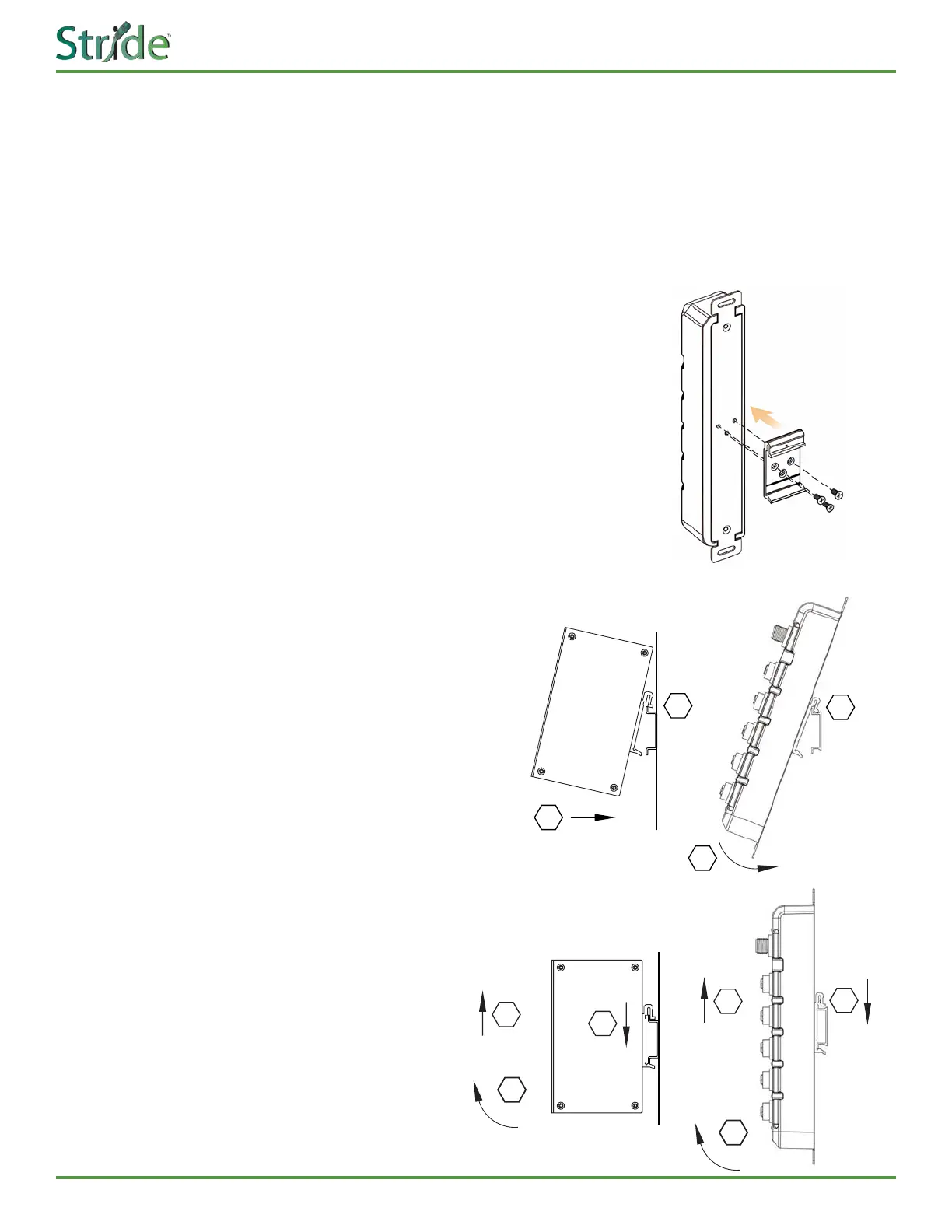

Mounting
e SE3 series switches can be DIN rail mounted or panel wall mounted. Each switch is shipped with all
necessary brackets for either mounting option.
DIN Rail Mounting
e SE3 switches can be mounted on a standard 35 x 7.5 mm height DIN rail (Standard: CENELEC
EN50022) installed either vertically or horizontally.
Installing DIN rail bracket:
Most SE3 switches are shipped with DIN rail brackets preinstalled.
For the IP67 model, attach the DIN rail bracket to the switch using
the supplied hardware, as shown in the gure to the right.
DIN rail mounting steps:
1. Hook top back of unit over the DIN rail.
2. Push bottom back onto the DIN rail until
it snaps into place.
DIN rail removal steps:
A. Push the unit down to free the bottom
of the DIN rail.
B. Rotate the bottom of the unit away from the
DIN rail.
C. Unhook top of unit from DIN rail.
1
2
Mounting
1
2
A
B
C
A
B
C
Removal
