8 Timer Mode
68 © Copyright Reserved Autonics Co., Ltd.
8.4 Timer ‘0’ Time Setting
8.4.1 Available output mode to set ‘0’ time setting
OND, ONd1, ONd2, NFD, NFd1

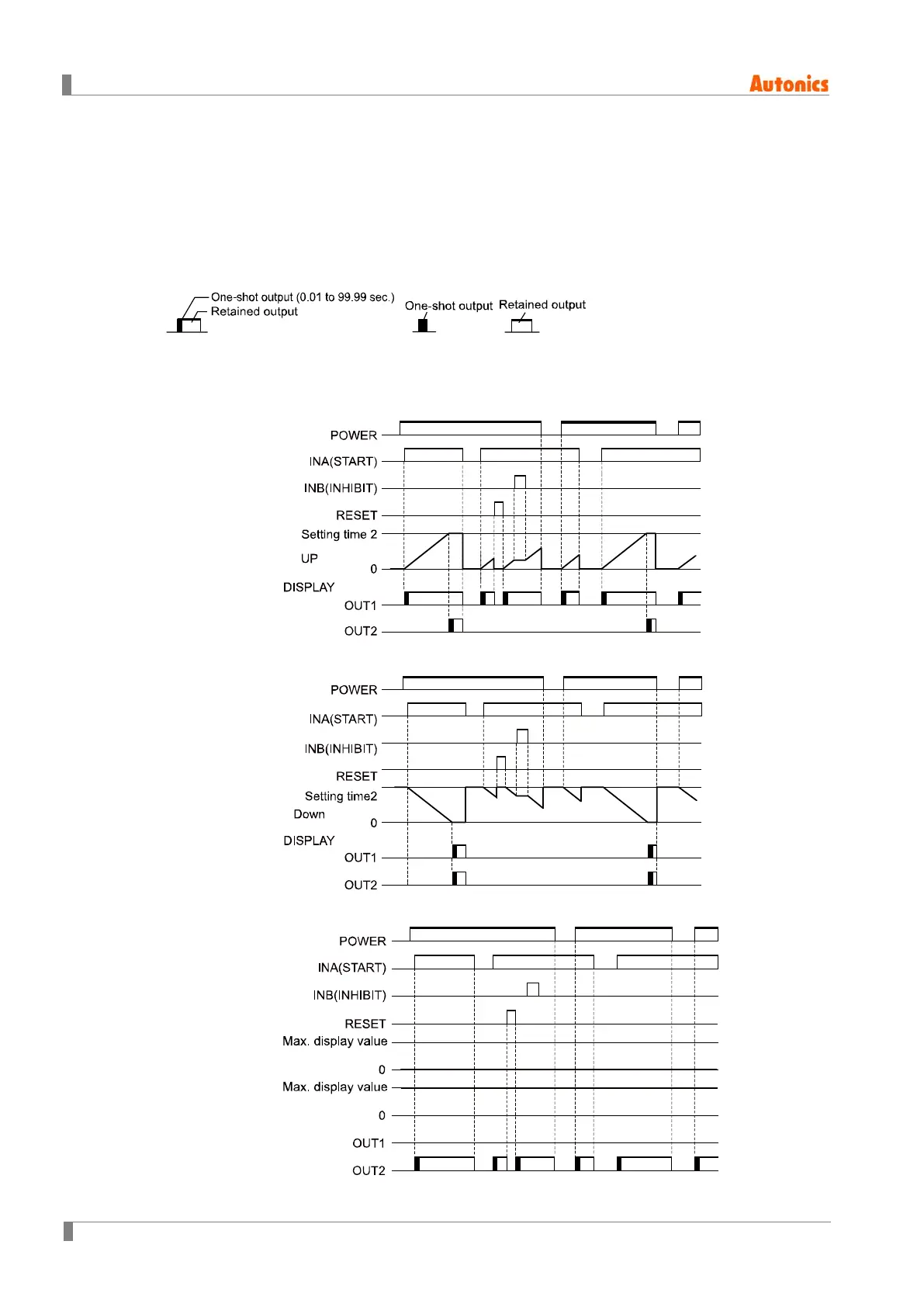

8.4.2 Operation by each output mode (‘0’ time setting)
(1) OND (Signal ON Delay) mode [OND]
 Setting time 1 is set as ‘0’.
1) UP mode
2) DOWN mode
 Setting time 2 is set as ‘0’.
