TC Series


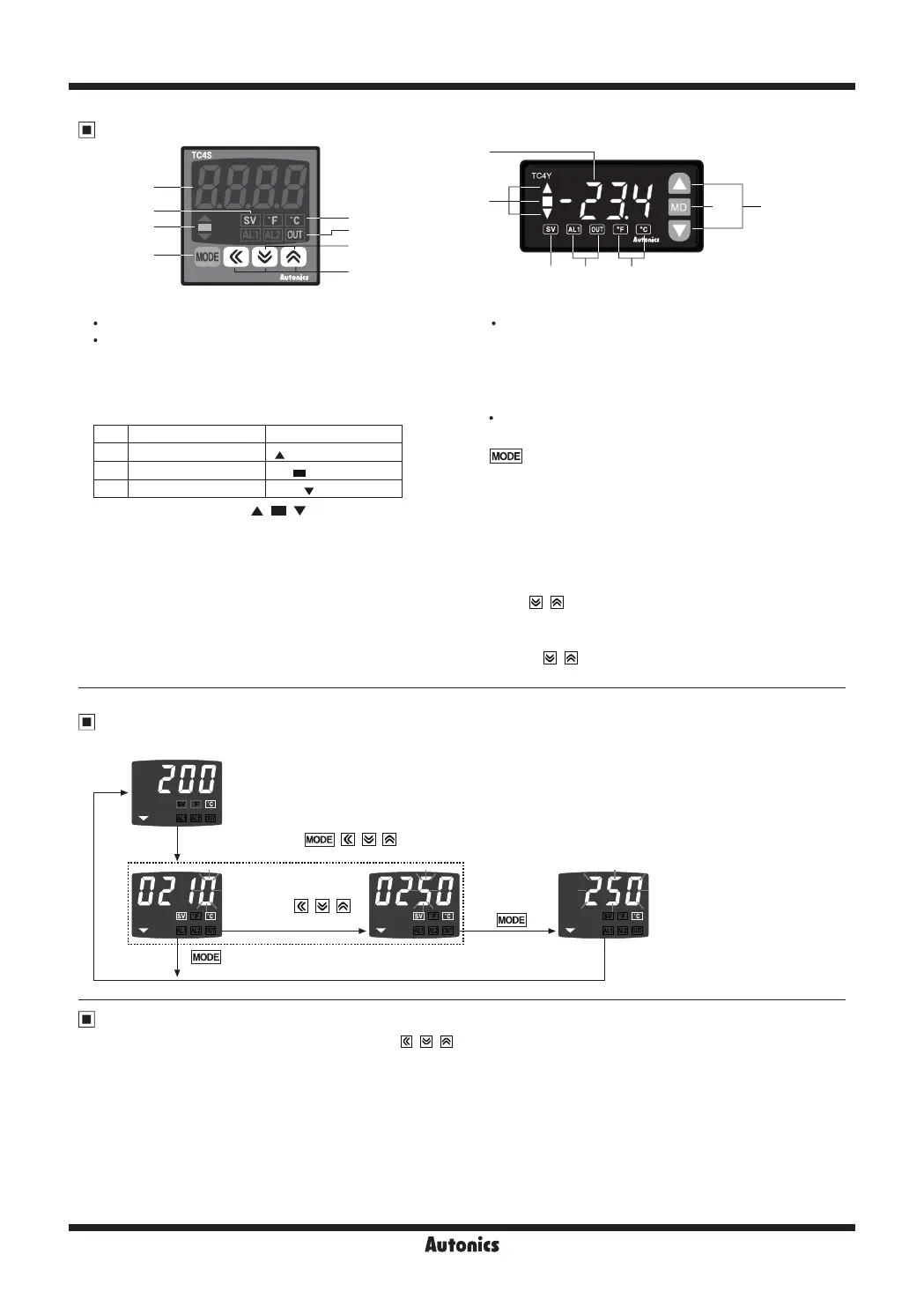

Unit Description
1. Present temperature (PV) display
RUN mode: Present temperature (PV) display.
Parameter setting mode: Parameter or parameter
setting value display.
2. Deviation indicator, Auto-tuning indicator
It shows current temperature (PV) deviation based on set
temperature (SV) by LED.
No. PV deviation temp. Deviation display
1 Over 2
℃
indicator ON
2 Below ±2
℃
indicator ON
3 Under -2
℃
indicator ON
The deviation indicators ( , , ) flash by every 1 sec.
when operating auto tuning.
3. Set temperature (SV) indicator
Press any front key once to check or change current set
temperature (SV), the set temperature (SV) indicator is
ON and preset set value is flashed.
4. Temperature unit
(℃/℉)
indicator
It shows current temperature unit.
5. Control/alarm output indicator
OUT: It will turn ON when control output (Main Control
Output) is ON.
※
In case of CYCLE/PHASE control of SSR drive output,
it will turn ON when MV is over 3.0%. (only for AC
voltage type)
AL1/AL2: It will light up when alarm output Alarm 1/
Alarm 2 are on.
6.
key
Used when entering into parameter group, returning
to RUN mode, moving parameter, and saving setting
values.
7. Adjustment
Used when entering into set value change mode, digit
moving and digit up/down.
8. FUNCTION key
Press
+ keys for 3 sec. to operate function (RUN/
STOP, alarm output cancel, auto-tuning) set in inner
parameter [
DI-K
].
※
Press
+ keys at the same time in set value
operation to move digit.
1
3
2
6
4
5
8
7
1
2
3 5 4
6 7, 8
※
In case of changing set temperature from 210
℃
to 250
℃
.

SV Setting
①

RUN mode (display a current temperature)
②
Set value change
mode change set
value by
, ,
keys.
③

Finish the setup.
④
Check SV
Press any key among
, , ,

Parameter Reset
Reset all parameters as factory default. Hold the front + + keys for 5 sec., to enter parameter reset [
INIT
] parameter.
Select '
YES
' and all parameters are reset as factory default. Select ‘
NO
’ and previous settings are maintained. If setting parameter
lock [
LOC
] or processing auto-tuning, parameter reset is unavailable.
