Autonics TC4Y User Manual

H-55
Economical PID Control
(A)
Photoelectric
Sensors
(B)
Fiber
Optic
Sensors
(C)
Door/Area
Sensors
(D)
Proximity
Sensors
(E)
Pressure
Sensors
(F)
Rotary
Encoders
(G)
Connectors/
Sockets
(H)
Temperature
Controllers
(I)
SSRs / Power
Controllers
(J)
Counters
(K)
Timers
(L)
Panel
Meters
(M)
Tacho /
Speed / Pulse
Meters
(N)
Display
Units
(O)
Sensor
Controllers
(P)
Switching
Mode Power
Supplies
(Q)
Stepper Motors
& Drivers
& Controllers
(R)
Graphic/
Logic
Panels
(S)
Field
Network
Devices
(T)
Software


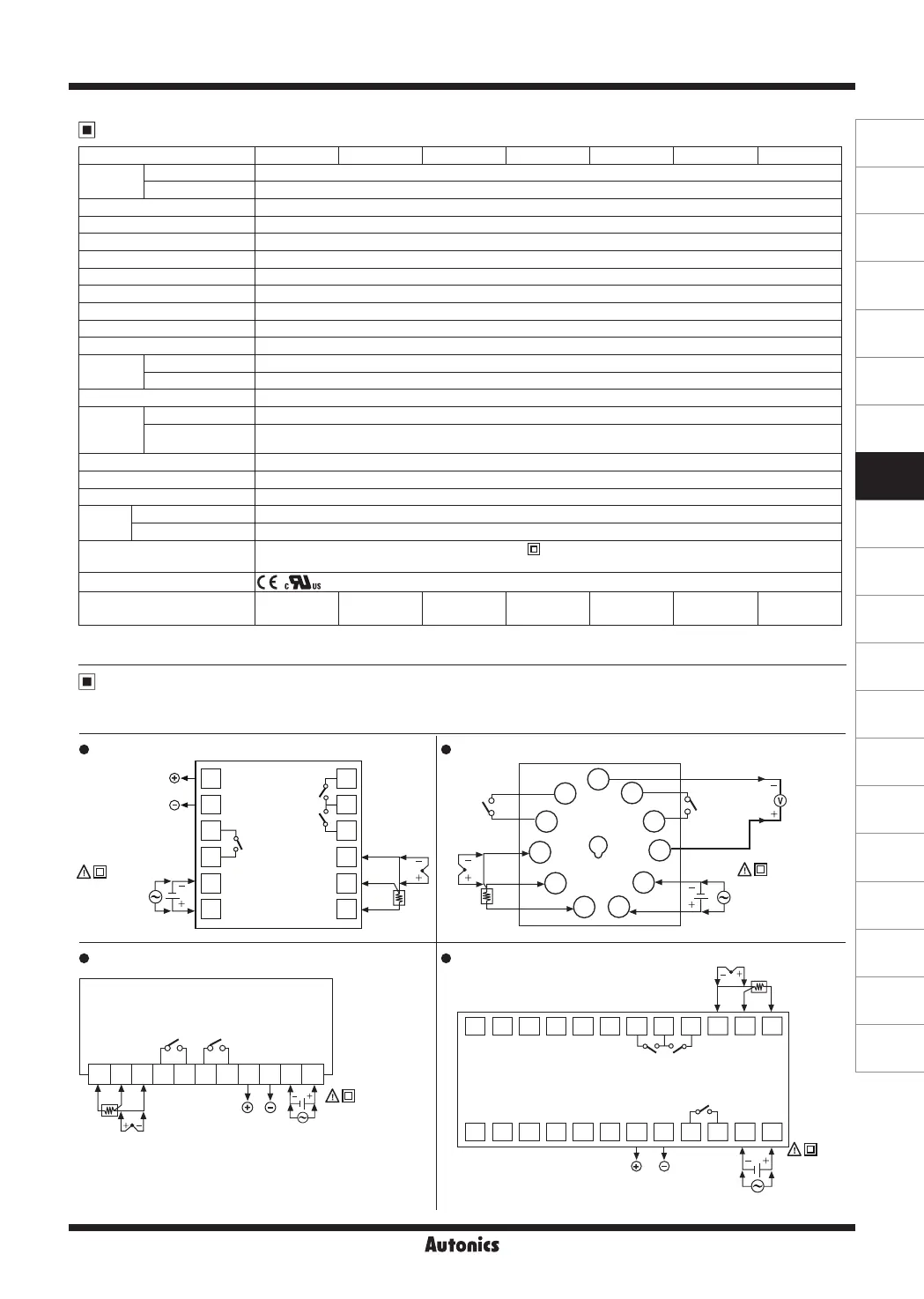

Specifications
Series TC4S TC4SP TC4Y TC4M TC4W TC4H TC4L
Control
output
Relay 250VAC 3A 1a
SSR 12VDC ±2V 20mA Max.
Alarm output AL1, AL2 Relay: 250VAC 1A 1a (
※
TC4SP, TC4Y have AL1 only.)
Control method ON/OFF and P, PI, PD, PID control
Hysteresis 1 to 100
℃/℉
(
0.1 to 50.0
℃/℉
) variable
Proportional band (P) 0.1 to 999.9
℃/℉
Integral time (I) 0 to 9999 sec.
Derivative time (D) 0 to 9999 sec.
Control period (T) 0.5 to 120.0 sec.
Manual reset 0.0 to 100.0%
Sampling period 100ms
Dielectric
strength
AC power 2,000VAC 50/60Hz for 1min. (between input terminal and power terminal)
AC/DC power 1,000VAC 50/60Hz for 1min. (between input terminal and power terminal)
Vibration 0.75mm amplitude at frequency of 5 to 55Hz (for 1 min.) in each X, Y
, Z direction for 2 hours
Relay
life cycle
Mechanical OUT: Over 5,000,000 operations, AL1/2: Over 5,000,000 operations
Electrical
OUT: Over 200,000 operations (250VAC 3A resistive load)
AL1/2: Over 300,000 operations (250VAC 1A resistive load)
Insulation resistance Min. 100MΩ (at 500VDC megger)
Noise immunity Square-wave noise by noise simulator (pulse width 1us) ±2kV R-phase and S-phase
Memory retention Approx. 10 years (when using non-volatile semiconductor memory type)
Environ-
ment
Ambient temperature -10 to 50
℃
, Storage: -20 to 60
℃
Ambient humidity 35 to 85%RH, Storage: 35 to 85%RH
Insulation type
Double insulation or reinforced insulation (mark:
, Dielectric strength between the measuring input part
and the power part: AC power 2kV, AC/DC Power 1kV)
Approval
Weight
※
2
Approx. 141g
(approx. 94g)
Approx. 123g
(approx. 76g)
Approx. 174g
(approx. 85g)
Approx. 204g
(approx. 133g)
Approx. 194g
(approx. 122g)
Approx. 194g
(approx. 122g)
Approx. 254g
(approx. 155g)
※
TC4 Series has selectable control output; Relay output, and SSR drive output. AC/DC power type does not have SSRP
function.

Connections
※
2: The weight includes packaging. The weight in parentheses is for unit only.
※
Environment resistance is rated at no freezing or condensation.
TC4S
TC4Y
TC4SP
TC4W
1
2
7
8
3
9
4
10
5
11
6
12
SSR OUT:
12VDC ±2V
20mA Max.
※
1
B' RTD TC
SENSOR
AL1 OUT:
250VAC 1A 1a
AL2 OUT:
250VAC 1A 1a
Relay OUT:
250VAC 3A 1a
B
A
SOURCE:
100-240VAC
5VA 50/60Hz,
24VAC 5VA 50/60Hz,
24-48VDC 3W
※
1: AC power: 100-240VAC 5VA 50/60Hz
AC/DC power: 24VAC 5VA 50/60Hz, 24-48VDC 3W
※
1
SOURCE:
100-240VAC
5VA 50/60Hz,
24VAC 5VA 50/60Hz,
24-48VDC 3W
SSR OUT:
12VDC ±2V
20mA Max.
1 72 83 94 105 116
AL1 OUT:
250VAC 1A 1a
Relay OUT:
250VAC 3A 1a
SENSOR
B'
RTD
TC
BA
1 4 7 10
13 16 19 22
2 5 8 11
14 17 20 23
3 6 9 12
15 18 21 24
SSR OUT:
12VDC ±2V
20mA Max.
B'
RTD
TC
SENSOR
AL1 OUT:
250VAC 1A 1a
AL2 OUT:
250VAC 1A 1a
Relay OUT:
250VAC 3A 1a
B A
※
1
SOURCE:
100-240VAC
5VA 50/60Hz,
24VAC 5VA 50/60Hz,
24-48VDC 3W
1
7
2
8
3
9
4
10
5
11
6
SSR OUT:
12VDC ±2V
20mA Max.
B'
RTD
TC
SENSOR
AL1 OUT:
250VAC 1A 1a
Relay OUT:
250VAC 3A 1a
B
A
※
1
SOURCE:
100-240VAC
5VA 50/60Hz,
24VAC 5VA 50/60Hz,
24-48VDC 3W
