Autonics TK4W User Manual

5 Preparation and Startup
44 © Copyright Reserved Autonics Co., Ltd.

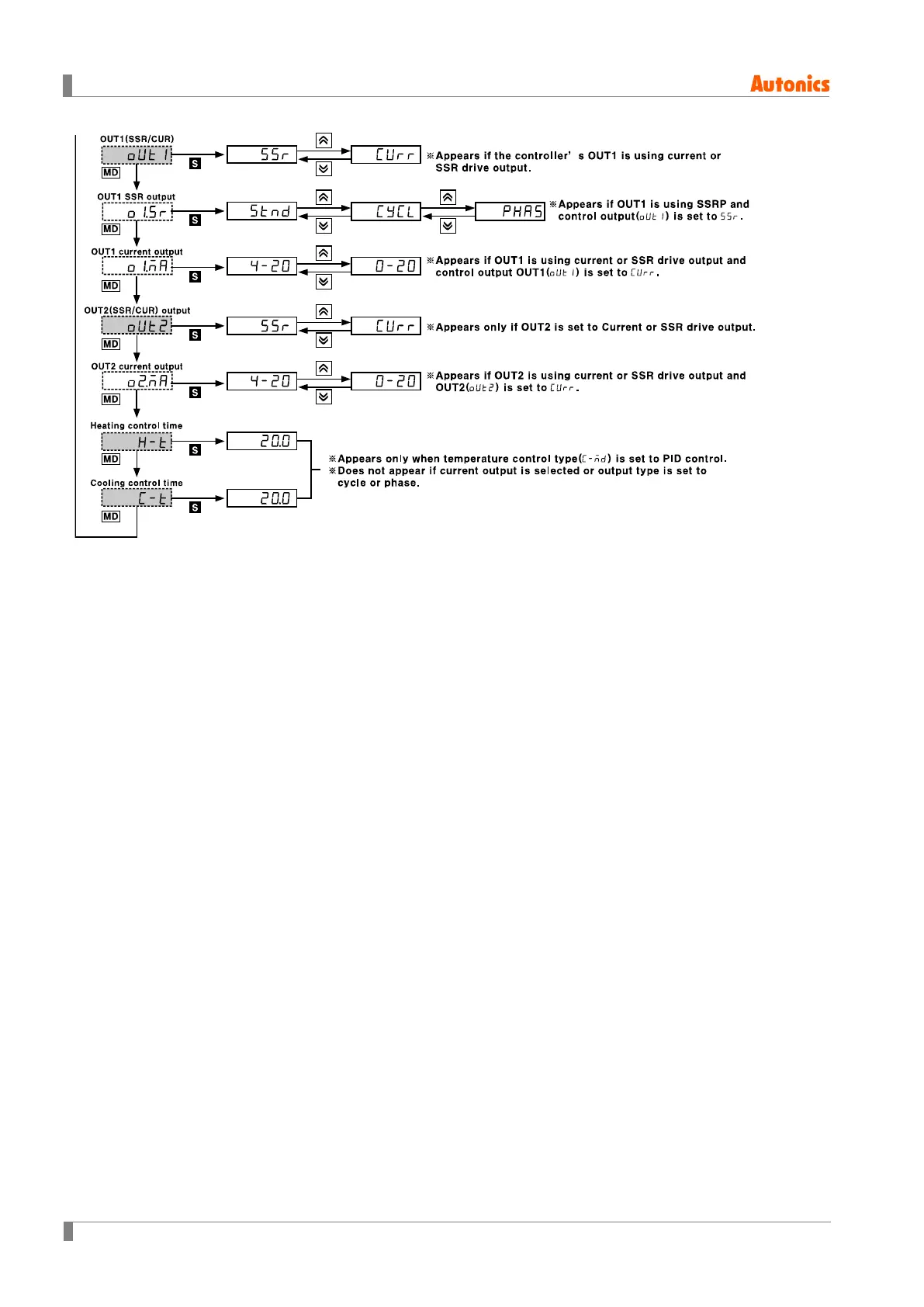

OUT1 and OUT2 Outputs
 If OUT1 and OUT2 outputs are Relay outputs:
 OUT1, O!SR, O!MA, OUT2, O@SR, O@MA parameters will not be shown.
 If OUT1 and OUT2 outputs are CUR + SSR outputs and OUT1, OUT2 is set to SSR:
 O!SR, O@SR's output method is fixed to STND, and parameter will not be shown.
 If OUT1 output is SSRP output and OUT2 output is CUR + SSR:
 OUT1, O!MA will not be shown.
 It will be possible to select STND, CYCL, PHAS in O!SR.
 If selecting SSR in o@Sr, it is fixed to Stnd and parameter will not be shown.
