Autonics TM Series Manual

H-16
TM Series

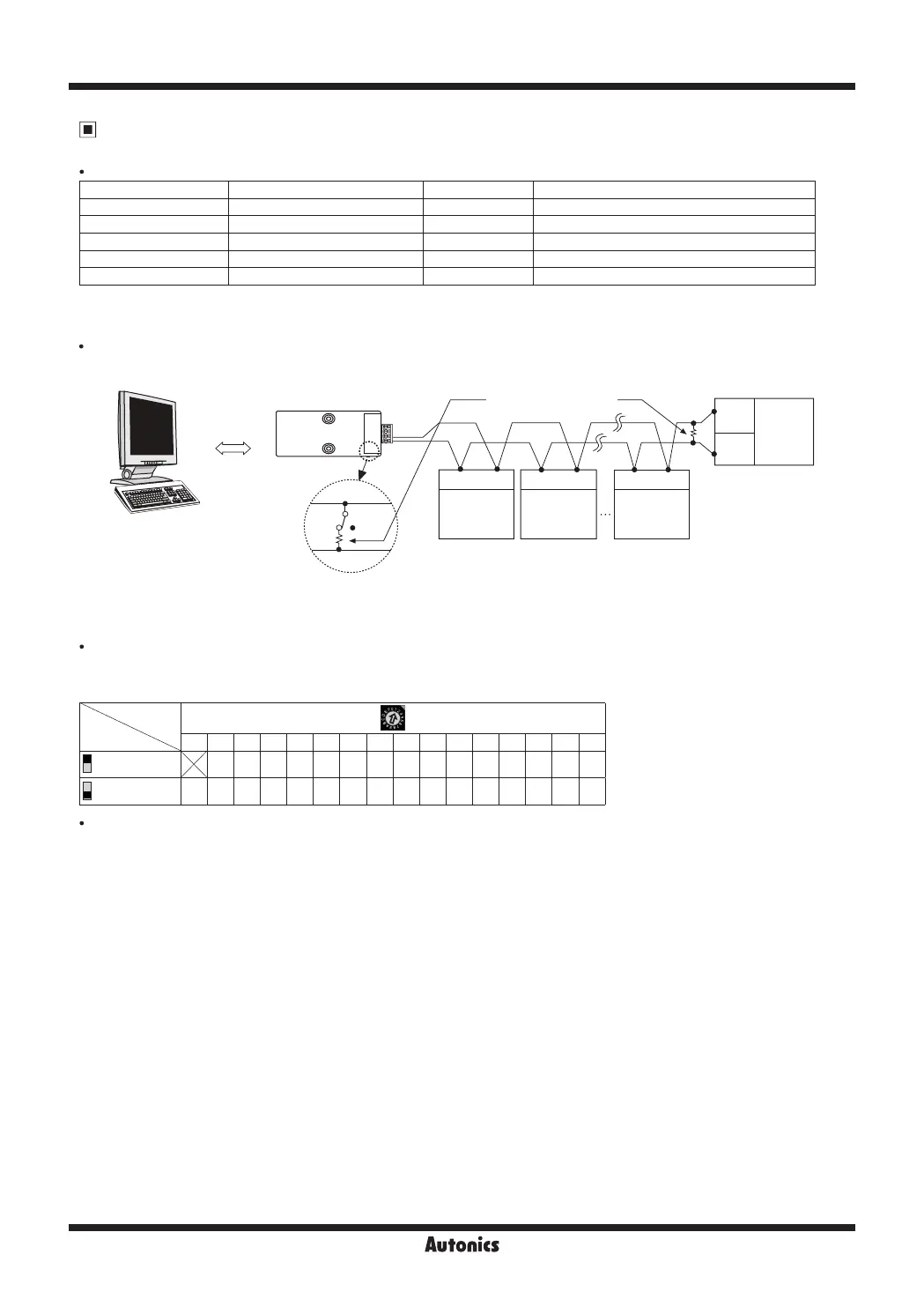

Communication Setting
When changing communication address via the Power/Comm. terminal, resupply the power.
Set the communication address by the communication address setting switch (SW1) and Communication address group switch (SW2).
When setting as 0, it does not operate communication.
(setting range: 01 to 31, factory default: [SW1] 1, [SW2] +0)
It is for parameter setting and monitoring via external devices (PC, PLC, etc.).
Interface
Caution for Communication Address Setting
Communication Address Setting
※
It is not allowed to set overlapping communication address at the same communication line.
Use twisted pair wire for RS485 communication.
Comm. protocol Modbus RTU Comm. distance Max. 800m
Connection type RS485 Comm. speed 2400, 4800, 9600 (default), 19200, 38400 bps
Application standard Compliance with EIA RS485 Start bit 1-bit (xed)
Max. connection 31 units (address: 01 to 31) Data bit 8-bit (xed)
Synchronous method Asynchronous Parity bit None (default), Odd, Even
Comm. method Two-wire half duplex Stop bit 1-bit, 2-bit (default)
SW1
SW2
0 1 2 3 4 5 6 7 8 9 A B C D E F
+0
+16
00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15
+0
+16
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
Application of system organization
※
It is recommended to use Autonics communication converter; SCM-US48I (USB to RS485 converter, sold separately),
SCM-38I (RS232C to RS485 converter, sold separately), SCM-US (USB to Serial converter, sold separately).
Please use twisted pair wire for RS485 communication.
B(-)
B(-)
ON
OFF
A(+)
A(+)
A(+) B(-) A(+) B(-) A(+) B(-)
Terminating resistance
(100 to 120Ω)
RS485
DEVICE
#1
RS485
DEVICE
#2
RS485
DEVICE
#30
RS485
DEVICE
#31
Computer
RS232C
or USB
Comm.
converter
RS485
