Autool CT-200 User Manual

-
- 5 -
-
3.2.1 Preparation
1)Pour about 1900ML test fluid into the machine through measuring
cylinder.
2)Install the injector

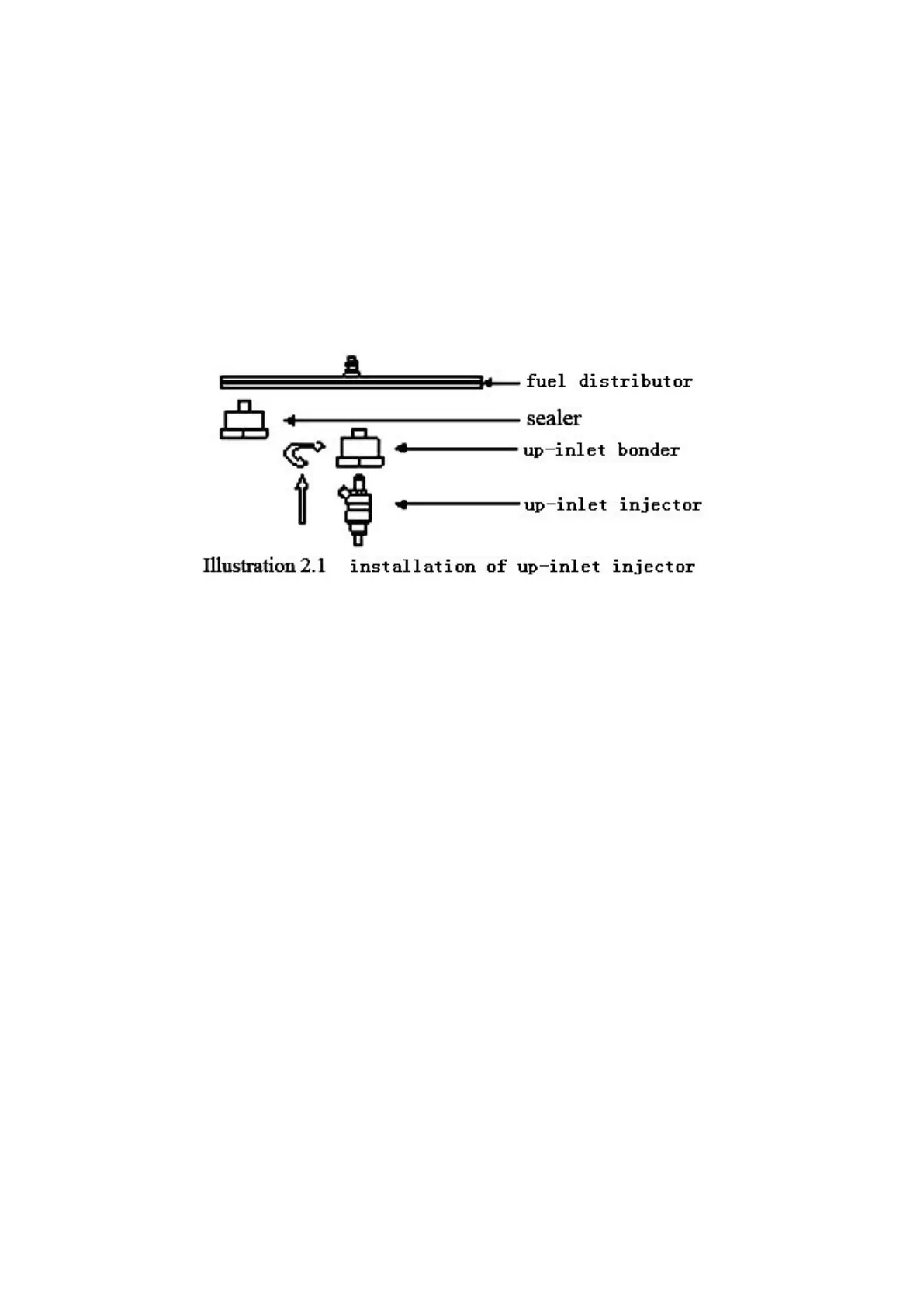

Installation of Up-inlet Injector
a. Take the coupler and plugs fromthe toll drawer and install them to fuel
distributor.
b.Put some grease on the “O”ring of the injector, and install it into the
coupler of the fuel distributor.
c. Put the fuel distributor and injector on the machine and fasten it by
fastenbolt.
（
For some special injector, it need to use lengthened bolt,
washer to fasten it.）
Installation of Side-feed Injector
