Autool CT-200 User Manual

-
- 6 -
-
1
2
3
4
5
6
7
8
9

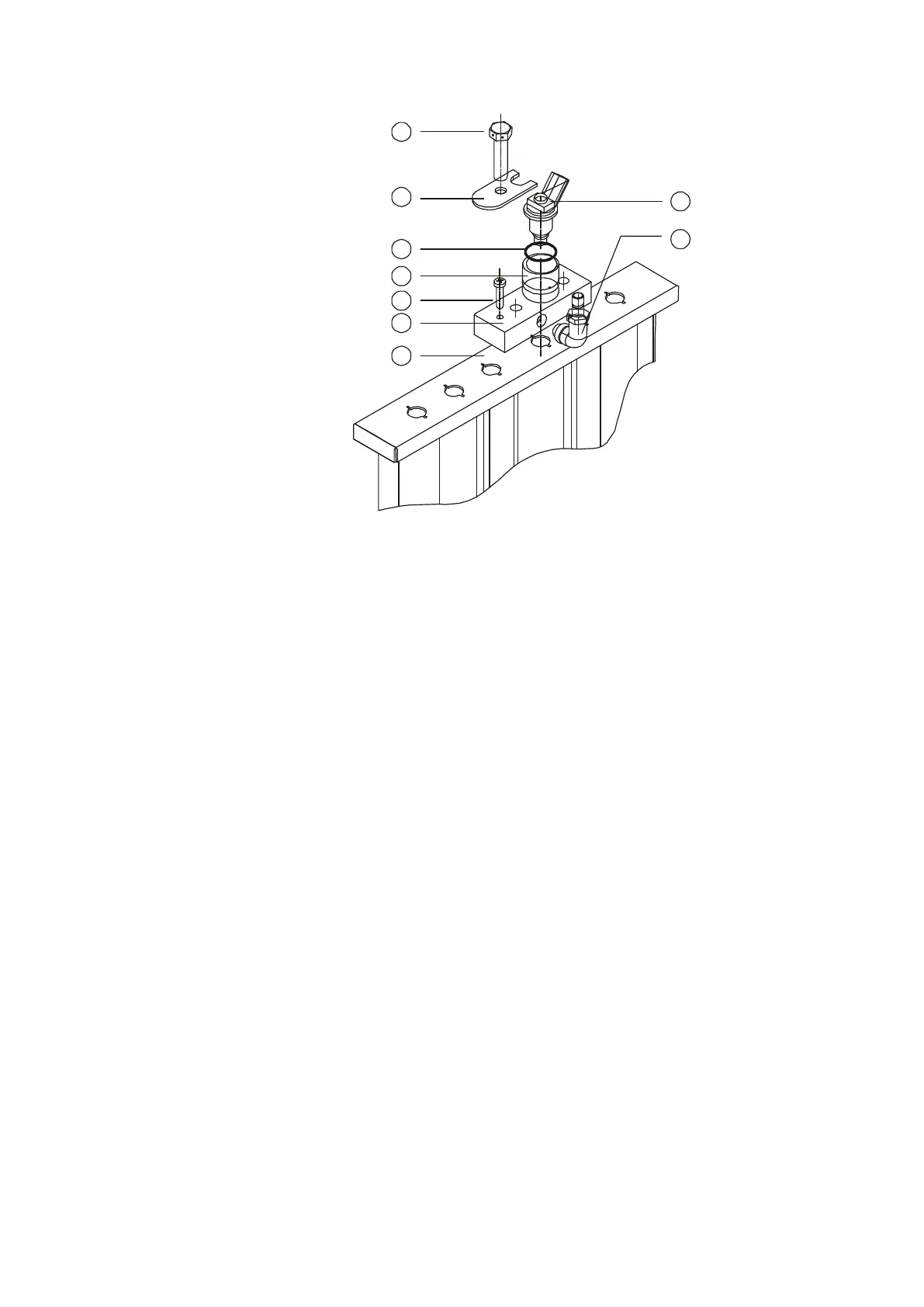

Installation Diagram
a. Select the suitable coupler④ and “O”loop③, and then put the “O” loop
on the coupler. (Puta little lubricant on the couplerand the “O”loop.)
b. Put the injector⑨ into the coupler, and then put them together into the
fuel distributor⑥.
c. Install the hold plate
②
. Tighten the screw
⑤
on the hold plate. Adjust
the suitable height by screw④.
d. Install the fuel distributor and injector to the fuel distributor rack⑦.
e. Connect the adaptor of black hose with the male terminal
⑧
on the fuel
distributor. Connectthe drive wire of injector, and prepare to test.
3.2.2 Steps
02 Idle Speed Test
1)Connect black hose (outlet) to inlet port of the fuel distributor, and
then connect the actuation cable to the machine.
2)Press Left or Right Arrow key to select Idle Speed Test, then press RUN
